Manitou 200 ATJ - Front and Rear Axle Differential Oil

3 - 50
7
8
66 6
66 6
7
8
#2
2
#1
4
5
33 3
1

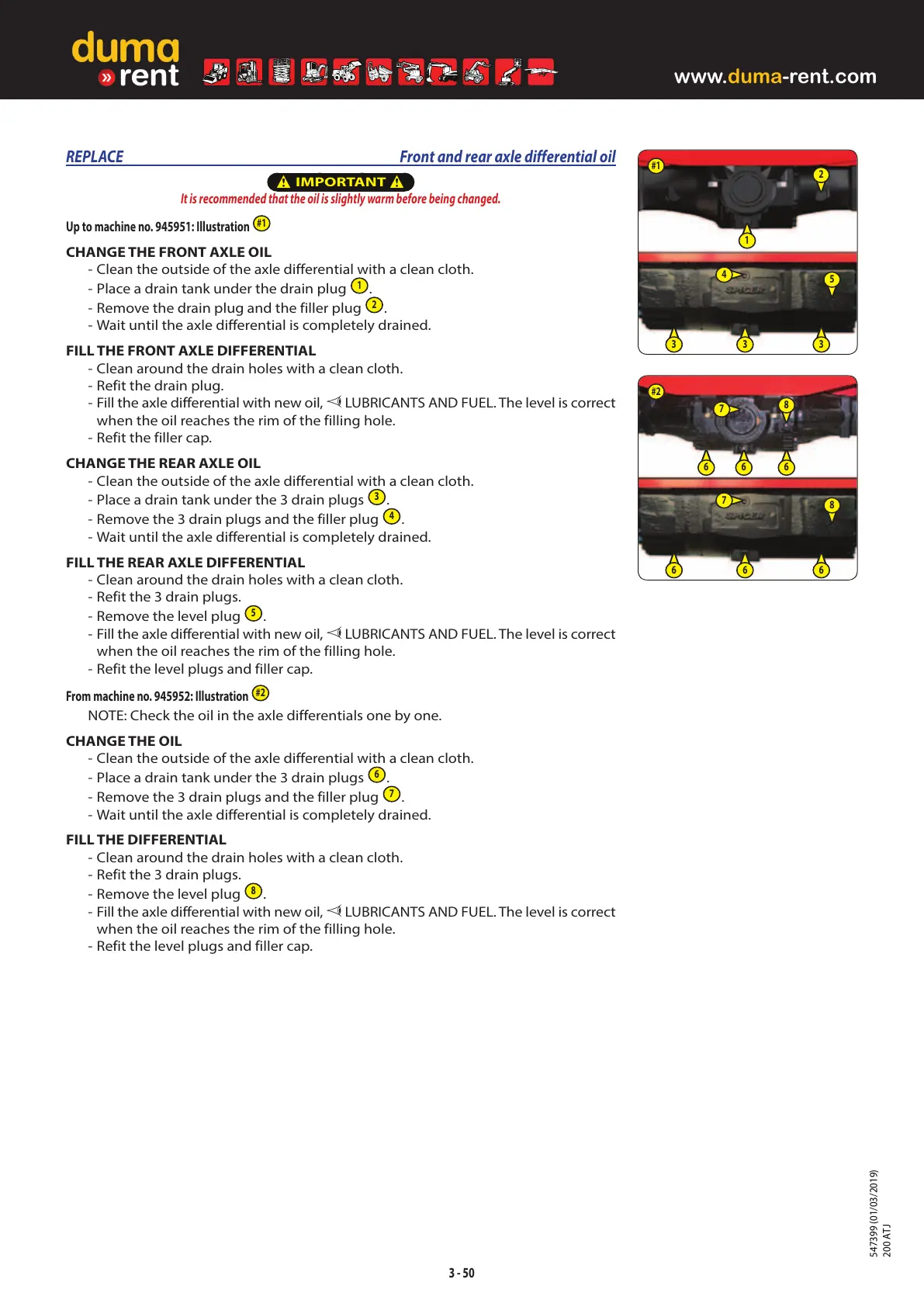

REPLACE Front and rear axle differential oil

IMPORTANT

It is recommended that the oil is slightly warm before being changed.
Up to machine no. 945951: Illustration
#1
CHANGE THE FRONT AXLE OIL
- Clean the outside of the axle differential with a clean cloth.
- Place a drain tank under the drain plug
1
.
- Remove the drain plug and the filler plug
2
.
- Wait until the axle differential is completely drained.
FILL THE FRONT AXLE DIFFERENTIAL
- Clean around the drain holes with a clean cloth.
- Refit the drain plug.
- Fill the axle differential with new oil,
LUBRICANTS AND FUEL. The level is correct
when the oil reaches the rim of the filling hole.
- Refit the filler cap.
CHANGE THE REAR AXLE OIL
- Clean the outside of the axle differential with a clean cloth.
- Place a drain tank under the 3 drain plugs
3
.
- Remove the 3 drain plugs and the filler plug
4
.
- Wait until the axle differential is completely drained.
FILL THE REAR AXLE DIFFERENTIAL
- Clean around the drain holes with a clean cloth.
- Refit the 3 drain plugs.
- Remove the level plug
5
.
- Fill the axle differential with new oil, LUBRICANTS AND FUEL. The level is correct
when the oil reaches the rim of the filling hole.
- Refit the level plugs and filler cap.
From machine no. 945952: Illustration
#2
NOTE: Check the oil in the axle differentials one by one.
CHANGE THE OIL
- Clean the outside of the axle differential with a clean cloth.
- Place a drain tank under the 3 drain plugs
6
.
- Remove the 3 drain plugs and the filler plug
7
.
- Wait until the axle differential is completely drained.
FILL THE DIFFERENTIAL
- Clean around the drain holes with a clean cloth.
- Refit the 3 drain plugs.
- Remove the level plug
8
.
- Fill the axle differential with new oil, LUBRICANTS AND FUEL. The level is correct
when the oil reaches the rim of the filling hole.
- Refit the level plugs and filler cap.
547399 (01/03/2019) 200 ATJ
