Manitou 200 ATJ User Manual

3 - 64
5
2
43
2 3 4
1A
1B
1
1
6
3
2
4
2

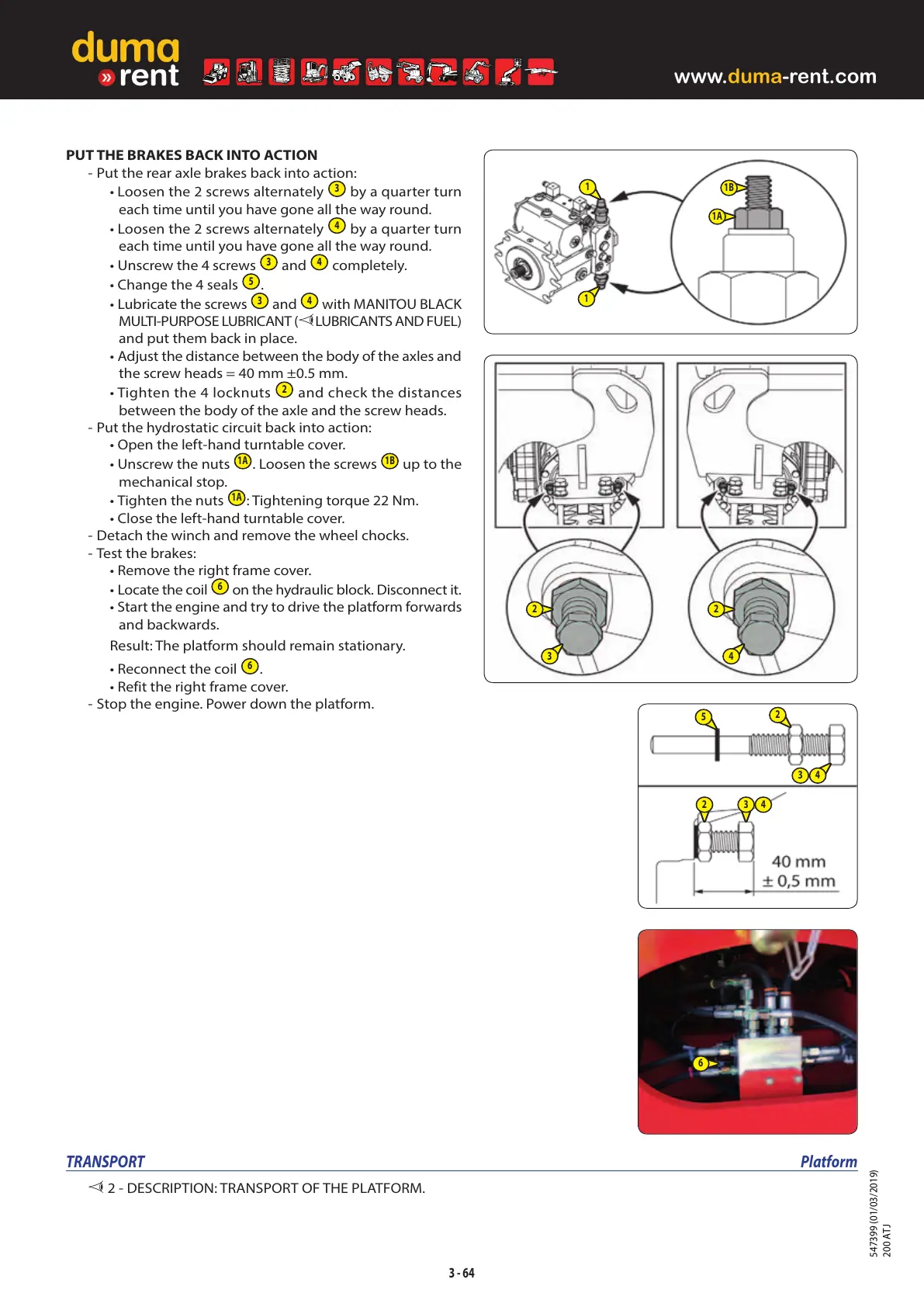

PUT THE BRAKES BACK INTO ACTION
- Put the rear axle brakes back into action:
• Loosen the 2 screws alternately
3
by a quarter turn
each time until you have gone all the way round.
• Loosen the 2 screws alternately
4
by a quarter turn
each time until you have gone all the way round.
• Unscrew the 4 screws
3
and
4
completely.
• Change the 4 seals
5
.
• Lubricate the screws
3
and
4
with MANITOU BLACK
MULTI-PURPOSE LUBRICANT (LUBRICANTS AND FUEL)
and put them back in place.
• Adjust the distance between the body of the axles and
the screw heads= 40mm ±0.5mm.
• Tighten the 4 locknuts
2
and check the distances
between the body of the axle and the screw heads.
- Put the hydrostatic circuit back into action:
• Open the left-hand turntable cover.
• Unscrew the nuts
1A
. Loosen the screws
1B
up to the
mechanical stop.
• Tighten the nuts
1A
: Tightening torque 22Nm.
• Close the left-hand turntable cover.
- Detach the winch and remove the wheel chocks.
- Test the brakes:
• Remove the right frame cover.
• Locate the coil
6
on the hydraulic block. Disconnect it.
• Start the engine and try to drive the platform forwards
and backwards.
Result: The platform should remain stationary.
• Reconnect the coil
6
.
• Refit the right frame cover.
- Stop the engine. Power down the platform.
TRANSPORT Platform
2-DESCRIPTION: TRANSPORT OF THE PLATFORM.
547399 (01/03/2019) 200 ATJ
www.duma-rent.com

Manitou 200 ATJ Specifications

General

Lift Capacity	230 kg
Drive Speed	4.5 km/h
Gradeability	40%
Outriggers	No
Horizontal Outreach	12.1 m
Maximum Outreach	12.1 m
Steering	4-wheel
