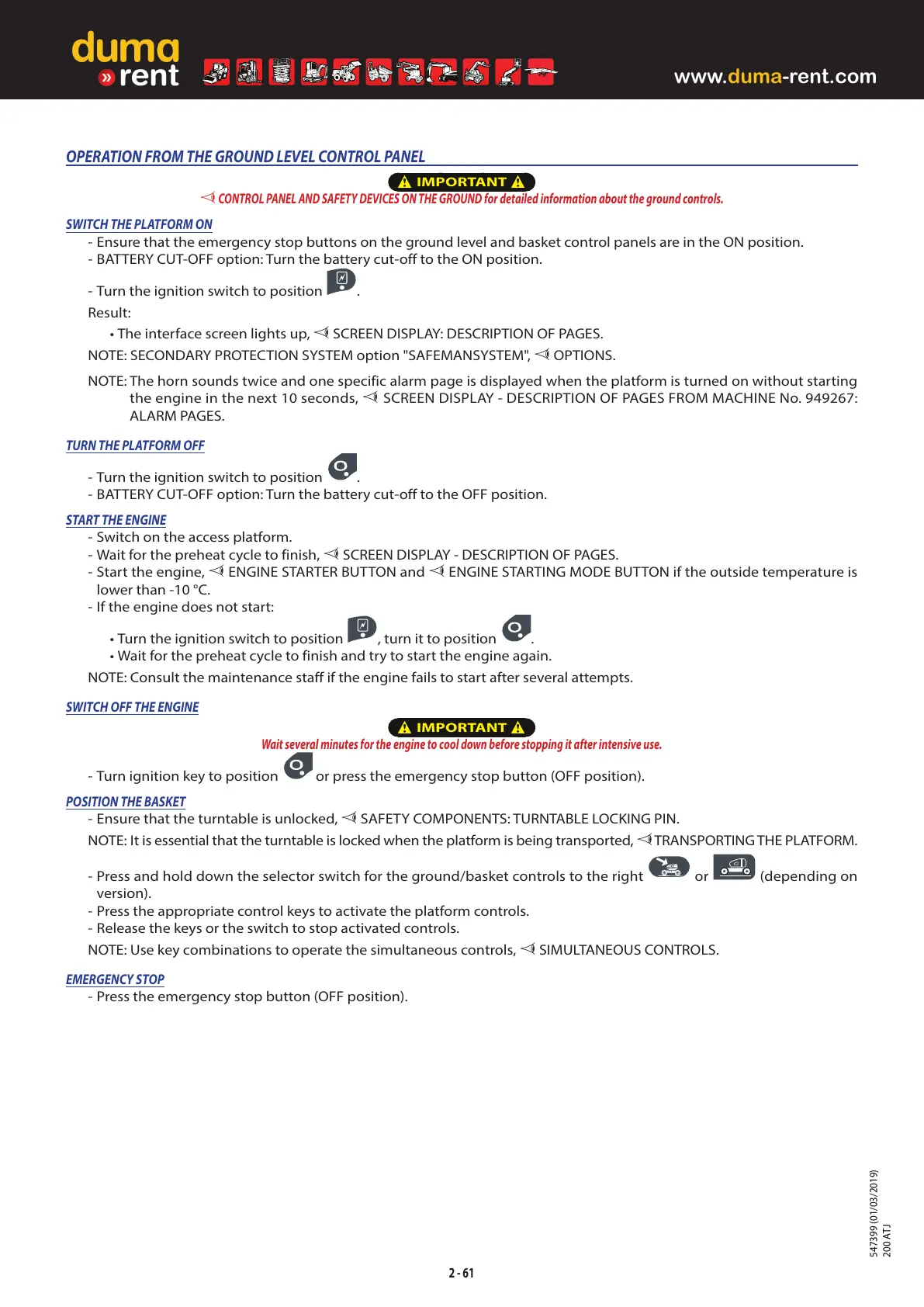

OPERATION FROM THE GROUND LEVEL CONTROL PANEL

IMPORTANT

 CONTROL PANEL AND SAFETY DEVICES ON THE GROUND for detailed information about the ground controls.
SWITCH THE PLATFORM ON
- Ensure that the emergency stop buttons on the ground level and basket control panels are in the ON position.
- BATTERY CUT-OFF option: Turn the battery cut-off to the ON position.
- Turn the ignition switch to position
.
Result:
• The interface screen lights up,
SCREEN DISPLAY: DESCRIPTION OF PAGES.
NOTE: SECONDARY PROTECTION SYSTEM option "SAFEMANSYSTEM",
OPTIONS.
NOTE: The horn sounds twice and one specific alarm page is displayed when the platform is turned on without starting
the engine in the next 10 seconds,
SCREEN DISPLAY - DESCRIPTION OF PAGES FROM MACHINE No. 949267:
ALARM PAGES.
TURN THE PLATFORM OFF
- Turn the ignition switch to position .
- BATTERY CUT-OFF option: Turn the battery cut-off to the OFF position.
START THE ENGINE
- Switch on the access platform.
- Wait for the preheat cycle to finish, SCREEN DISPLAY - DESCRIPTION OF PAGES.
- Start the engine, ENGINE STARTER BUTTON and ENGINE STARTING MODE BUTTON if the outside temperature is
lower than -10°C.
- If the engine does not start:
• Turn the ignition switch to position
, turn it to position .
• Wait for the preheat cycle to finish and try to start the engine again.
NOTE: Consult the maintenance staff if the engine fails to start after several attempts.
SWITCH OFF THE ENGINE

IMPORTANT

Wait several minutes for the engine to cool down before stopping it after intensive use.
- Turn ignition key to position or press the emergency stop button (OFF position).
POSITION THE BASKET
- Ensure that the turntable is unlocked, SAFETY COMPONENTS: TURNTABLE LOCKING PIN.
NOTE: It is essential that the turntable is locked when the platform is being transported,
TRANSPORTING THE PLATFORM.
- Press and hold down the selector switch for the ground/basket controls to the right
or (depending on
version).
- Press the appropriate control keys to activate the platform controls.
- Release the keys or the switch to stop activated controls.
NOTE: Use key combinations to operate the simultaneous controls,
SIMULTANEOUS CONTROLS.
EMERGENCY STOP
- Press the emergency stop button (OFF position).
