Manitou 200 ATJ - Operation Description; Secondary Protection System Safemansystem

2 - 73
A
1
3
2

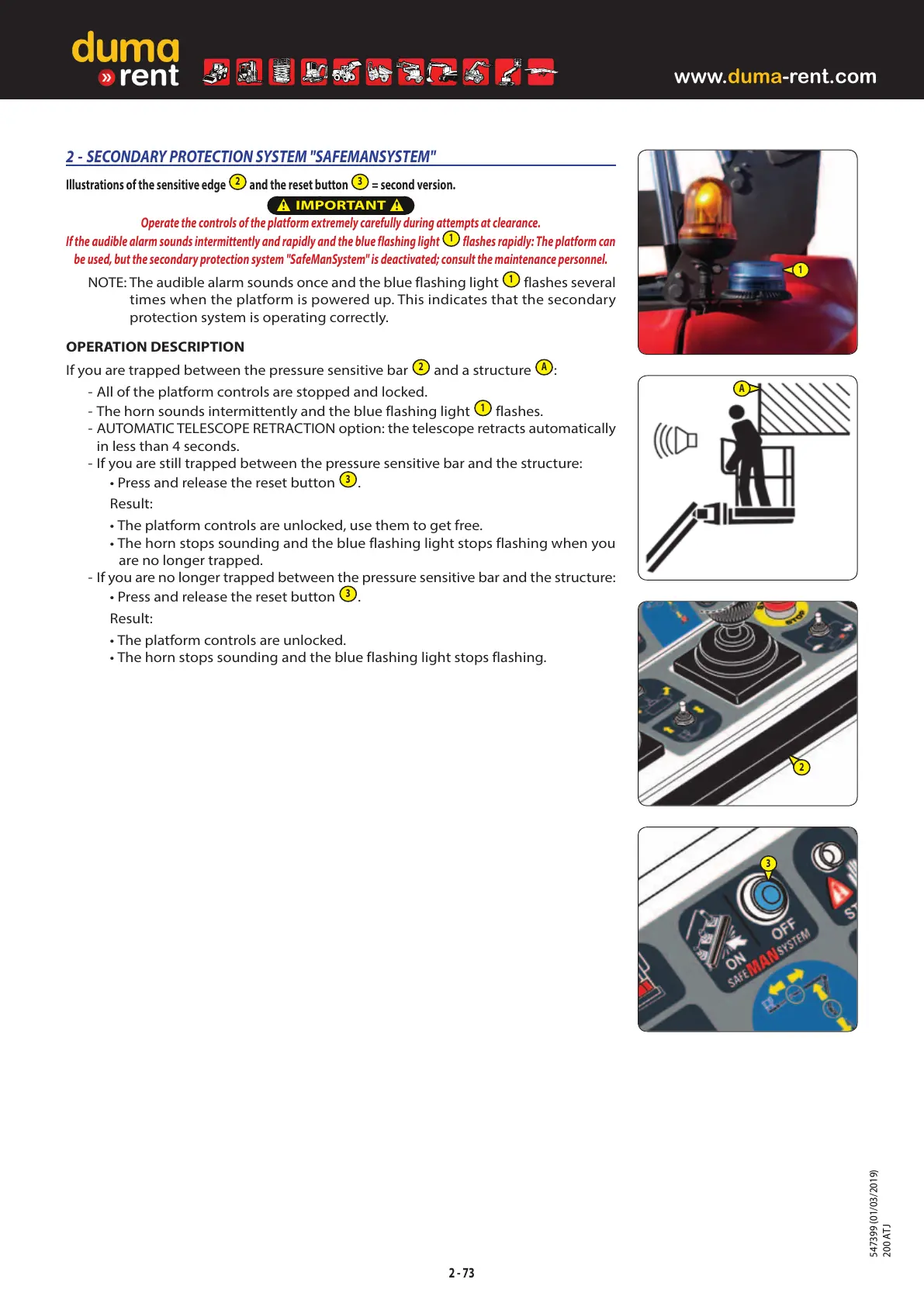

2 - SECONDARY PROTECTION SYSTEM "SAFEMANSYSTEM"
Illustrations of the sensitive edge
2
and the reset button
3
= second version.

IMPORTANT

Operate the controls of the platform extremely carefully during attempts at clearance.
If the audible alarm sounds intermittently and rapidly and the blue flashing light
1
flashes rapidly: The platform can
be used, but the secondary protection system "SafeManSystem" is deactivated; consult the maintenance personnel.
NOTE: The audible alarm sounds once and the blue flashing light
1
flashes several
times when the platform is powered up. This indicates that the secondary
protection system is operating correctly.
OPERATION DESCRIPTION
If you are trapped between the pressure sensitive bar
2
and a structure
A
:
- All of the platform controls are stopped and locked.
- The horn sounds intermittently and the blue flashing light
1
flashes.
- AUTOMATIC TELESCOPE RETRACTION option: the telescope retracts automatically
in less than 4 seconds.
- If you are still trapped between the pressure sensitive bar and the structure:
• Press and release the reset button
3
.
Result:
• The platform controls are unlocked, use them to get free.
• The horn stops sounding and the blue flashing light stops flashing when you
are no longer trapped.
- If you are no longer trapped between the pressure sensitive bar and the structure:
• Press and release the reset button
3
.
Result:
• The platform controls are unlocked.
• The horn stops sounding and the blue flashing light stops flashing.
547399 (01/03/2019) 200 ATJ
