Manitou 200 ATJ - Coolant Level; Engine Oil Level

3 - 13
1
A
B
1
1
2

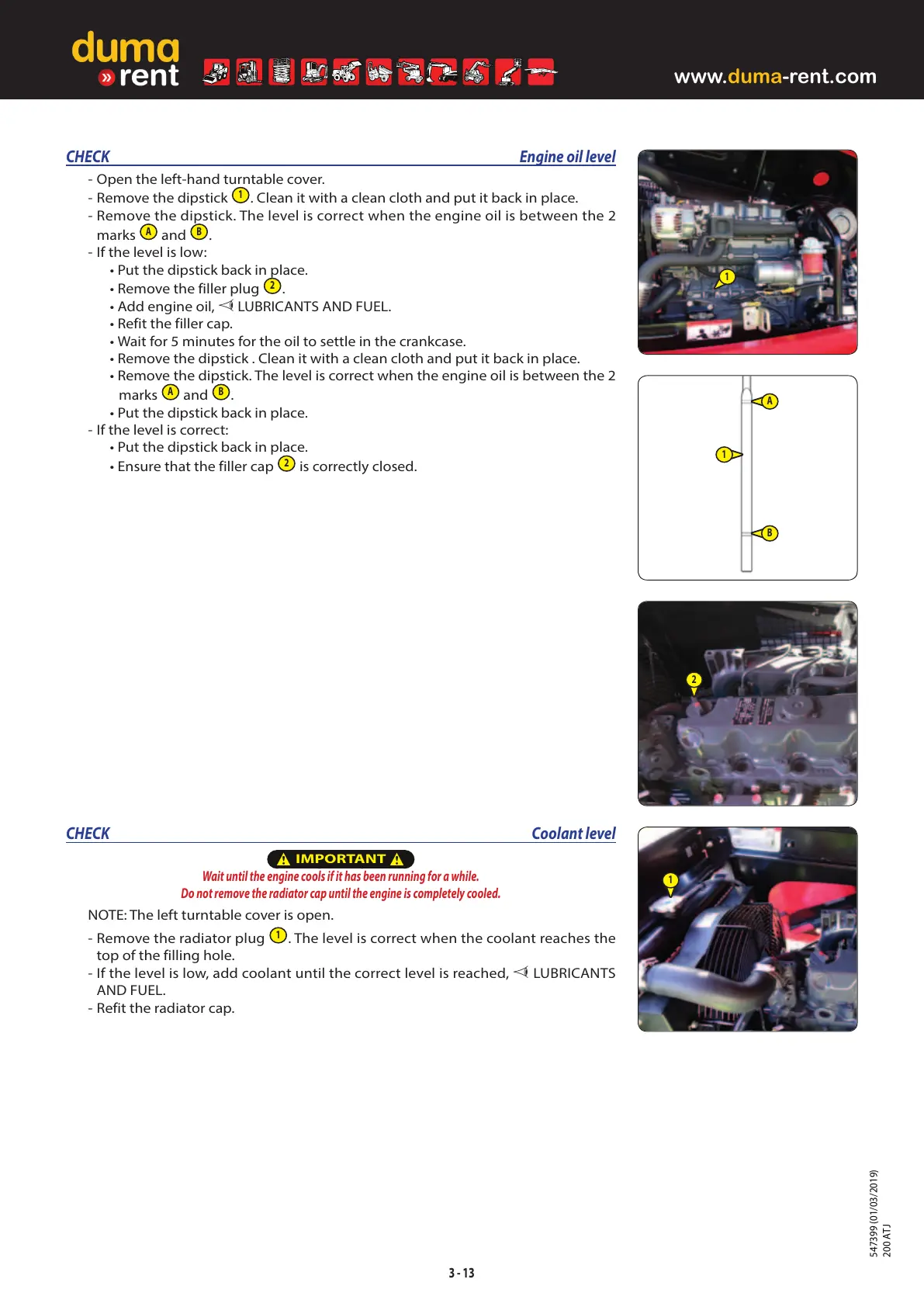

CHECK Engine oil level
- Open the left-hand turntable cover.
- Remove the dipstick
1
. Clean it with a clean cloth and put it back in place.
- Remove the dipstick. The level is correct when the engine oil is between the 2
marks
A
and
B
.
- If the level is low:
• Put the dipstick back in place.
• Remove the filler plug
2
.
• Add engine oil, LUBRICANTS AND FUEL.
• Refit the filler cap.
• Wait for 5 minutes for the oil to settle in the crankcase.
• Remove the dipstick . Clean it with a clean cloth and put it back in place.
• Remove the dipstick. The level is correct when the engine oil is between the 2
marks
A
and
B
.
• Put the dipstick back in place.
- If the level is correct:
• Put the dipstick back in place.
• Ensure that the filler cap
2
is correctly closed.
CHECK Coolant level

IMPORTANT

Wait until the engine cools if it has been running for a while.
Do not remove the radiator cap until the engine is completely cooled.
NOTE: The left turntable cover is open.
- Remove the radiator plug
1
. The level is correct when the coolant reaches the
top of the filling hole.
- If the level is low, add coolant until the correct level is reached, LUBRICANTS
AND FUEL.
- Refit the radiator cap.
