3 - 26
1
1
2
2

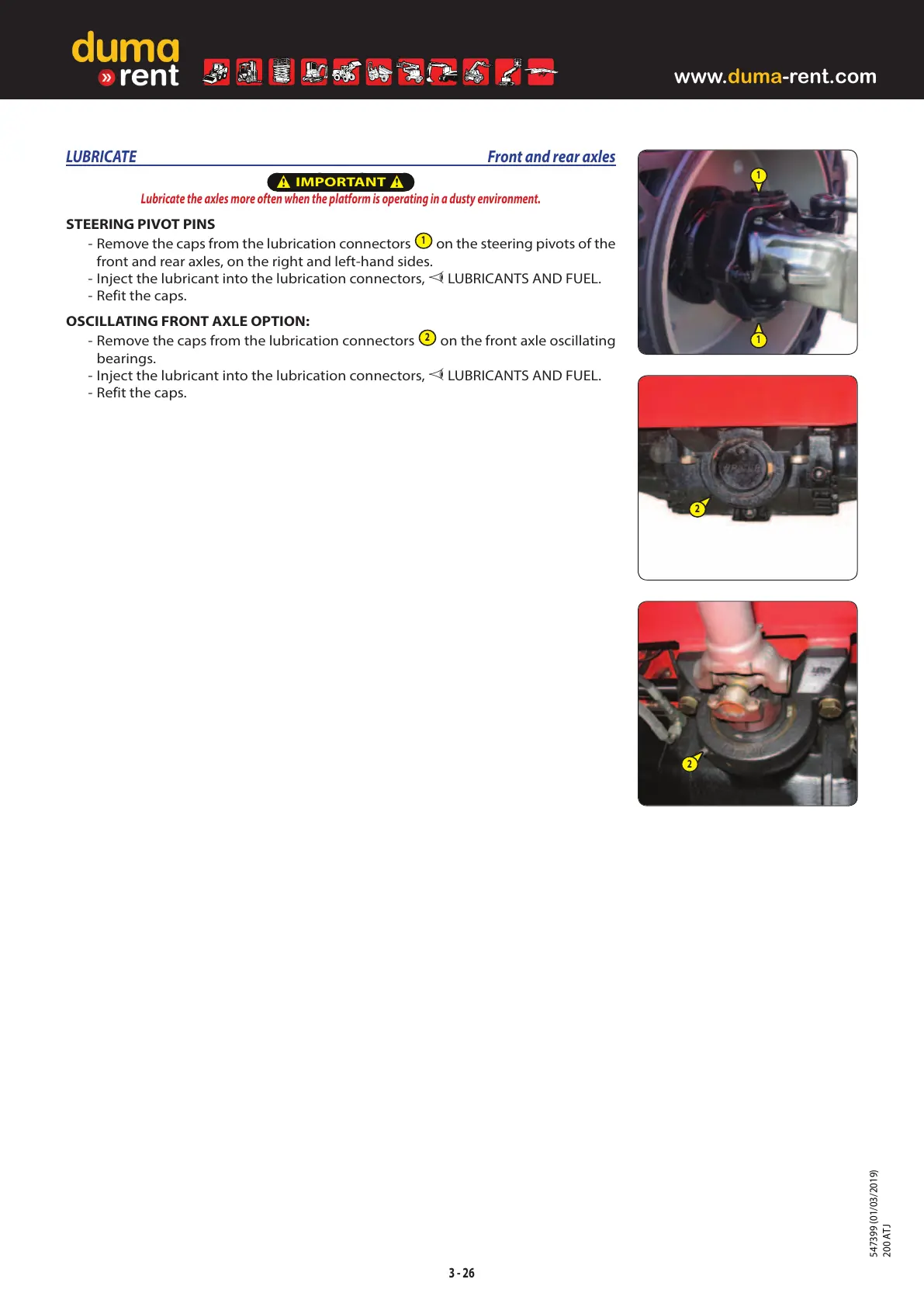

LUBRICATE Front and rear axles
IMPORTANT
Lubricate the axles more often when the platform is operating in a dusty environment.
STEERING PIVOT PINS
- Remove the caps from the lubrication connectors
1
on the steering pivots of the
front and rear axles, on the right and left-hand sides.
- Inject the lubricant into the lubrication connectors, LUBRICANTS AND FUEL.
- Refit the caps.
OSCILLATING FRONT AXLE OPTION:
- Remove the caps from the lubrication connectors
2
on the front axle oscillating
bearings.
- Inject the lubricant into the lubrication connectors, LUBRICANTS AND FUEL.
- Refit the caps.
547399 (01/03/2019)
200 ATJ
www.duma-rent.com
