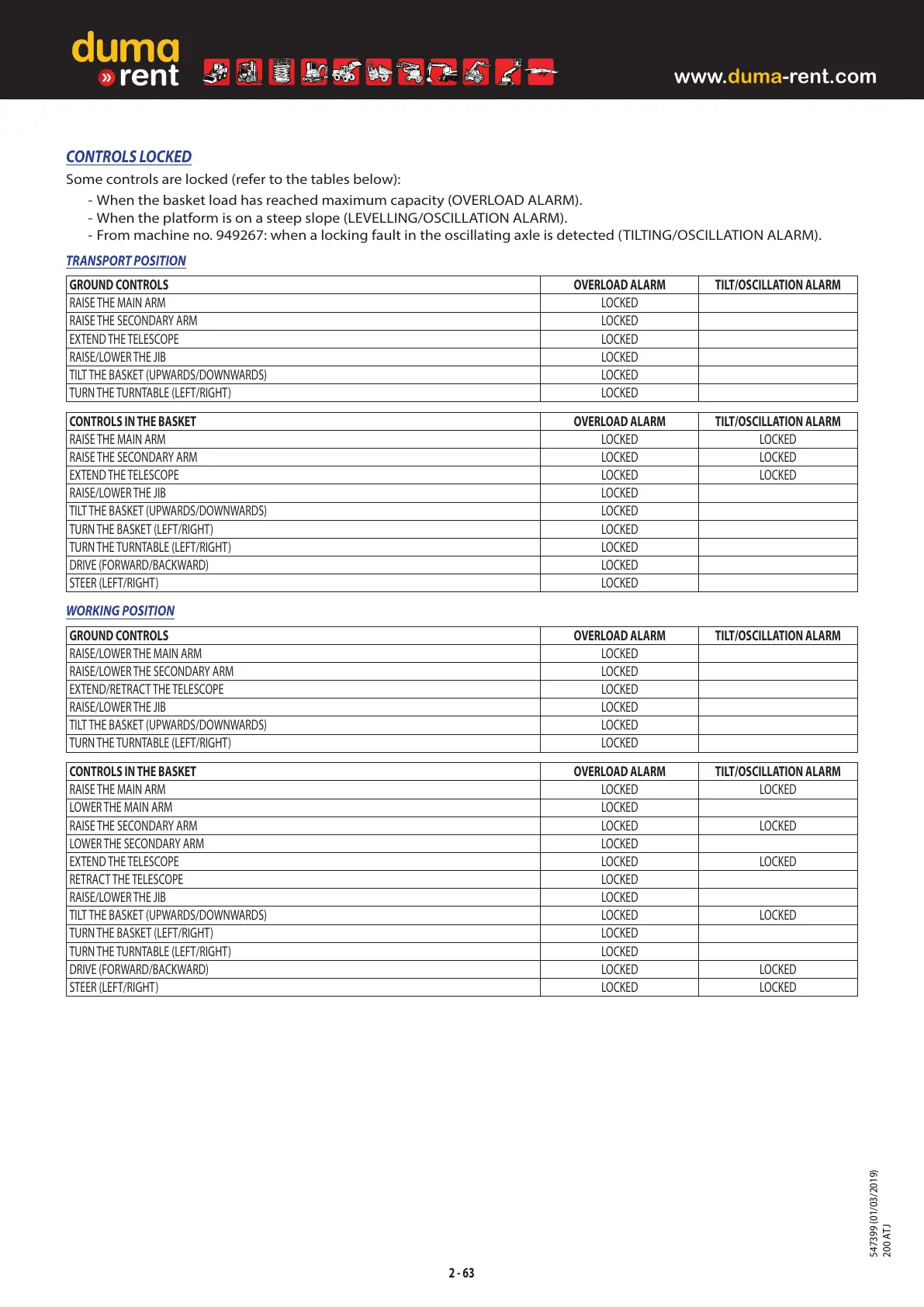

CONTROLS LOCKED
Some controls are locked (refer to the tables below):
- When the basket load has reached maximum capacity (OVERLOAD ALARM).
- When the platform is on a steep slope (LEVELLING/OSCILLATION ALARM).
- From machine no. 949267: when a locking fault in the oscillating axle is detected (TILTING/OSCILLATION ALARM).
TRANSPORT POSITION
GROUND CONTROLS OVERLOAD ALARM TILT/OSCILLATION ALARM
RAISE THE MAIN ARM LOCKED
RAISE THE SECONDARY ARM LOCKED
EXTEND THE TELESCOPE LOCKED
RAISE/LOWER THE JIB LOCKED
TILT THE BASKET (UPWARDS/DOWNWARDS) LOCKED
TURN THE TURNTABLE (LEFT/RIGHT) LOCKED
CONTROLS IN THE BASKET OVERLOAD ALARM TILT/OSCILLATION ALARM
RAISE THE MAIN ARM LOCKED LOCKED
RAISE THE SECONDARY ARM LOCKED LOCKED
EXTEND THE TELESCOPE LOCKED LOCKED
RAISE/LOWER THE JIB LOCKED
TILT THE BASKET (UPWARDS/DOWNWARDS) LOCKED
TURN THE BASKET (LEFT/RIGHT) LOCKED
TURN THE TURNTABLE (LEFT/RIGHT) LOCKED
DRIVE (FORWARD/BACKWARD) LOCKED
STEER (LEFT/RIGHT) LOCKED
WORKING POSITION
GROUND CONTROLS OVERLOAD ALARM TILT/OSCILLATION ALARM
RAISE/LOWER THE MAIN ARM LOCKED
RAISE/LOWER THE SECONDARY ARM LOCKED
EXTEND/RETRACT THE TELESCOPE LOCKED
RAISE/LOWER THE JIB LOCKED
TILT THE BASKET (UPWARDS/DOWNWARDS) LOCKED
TURN THE TURNTABLE (LEFT/RIGHT) LOCKED
CONTROLS IN THE BASKET OVERLOAD ALARM TILT/OSCILLATION ALARM
RAISE THE MAIN ARM LOCKED LOCKED
LOWER THE MAIN ARM LOCKED
RAISE THE SECONDARY ARM LOCKED LOCKED
LOWER THE SECONDARY ARM LOCKED
EXTEND THE TELESCOPE LOCKED LOCKED
RETRACT THE TELESCOPE LOCKED
RAISE/LOWER THE JIB LOCKED
TILT THE BASKET (UPWARDS/DOWNWARDS) LOCKED LOCKED
TURN THE BASKET (LEFT/RIGHT) LOCKED
TURN THE TURNTABLE (LEFT/RIGHT) LOCKED
DRIVE (FORWARD/BACKWARD) LOCKED LOCKED
STEER (LEFT/RIGHT) LOCKED LOCKED
