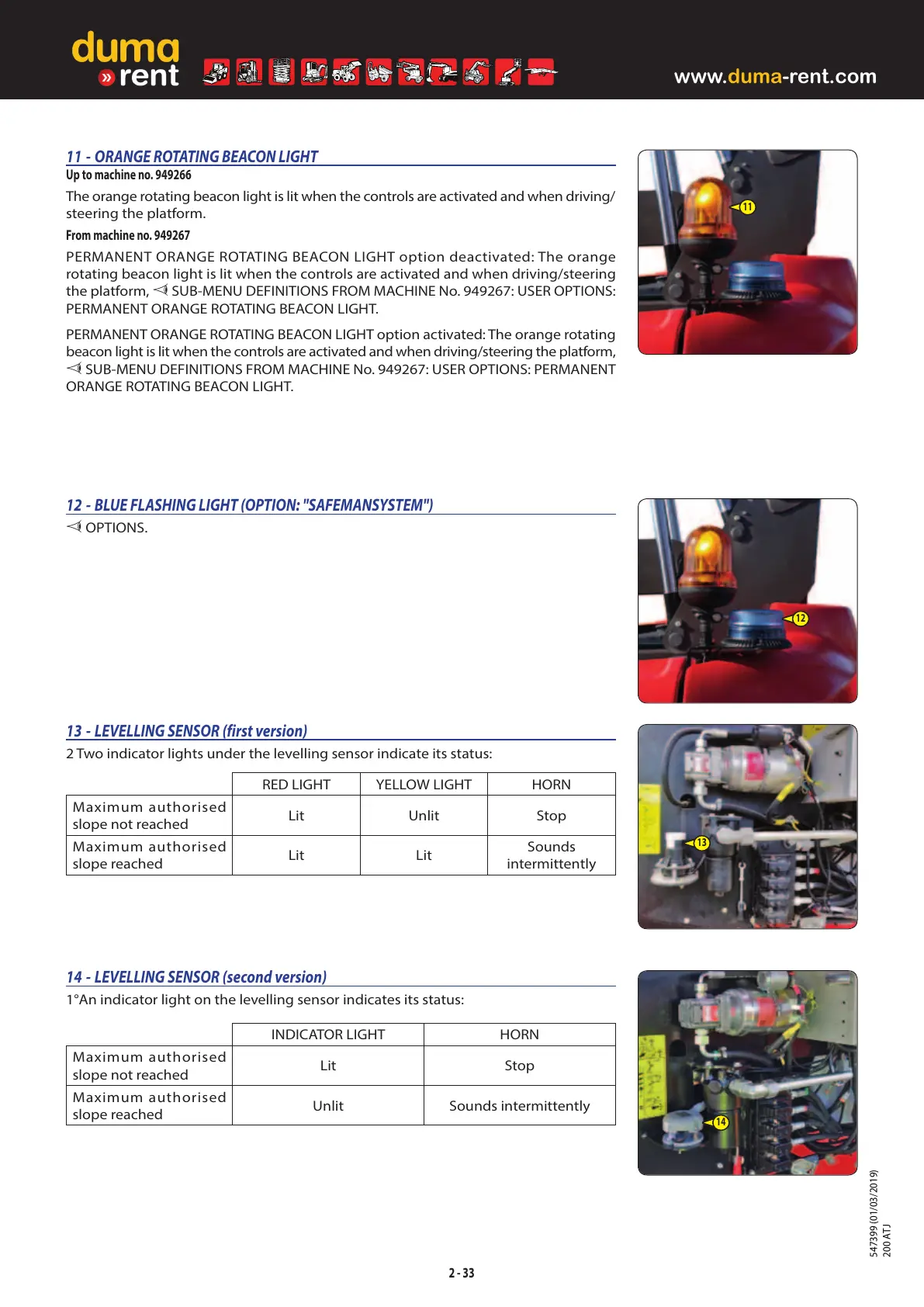

11 - ORANGE ROTATING BEACON LIGHT
Up to machine no. 949266
The orange rotating beacon light is lit when the controls are activated and when driving/
steering the platform.
From machine no. 949267
PERMANENT ORANGE ROTATING BEACON LIGHT option deactivated: The orange
rotating beacon light is lit when the controls are activated and when driving/steering
the platform, SUB-MENU DEFINITIONS FROM MACHINE No. 949267: USER OPTIONS:
PERMANENT ORANGE ROTATING BEACON LIGHT.
PERMANENT ORANGE ROTATING BEACON LIGHT option activated: The orange rotating
beacon light is lit when the controls are activated and when driving/steering the platform,
SUB-MENU DEFINITIONS FROM MACHINE No. 949267: USER OPTIONS: PERMANENT
ORANGE ROTATING BEACON LIGHT.
13 - LEVELLING SENSOR (first version)
2Two indicator lights under the levelling sensor indicate its status:
RED LIGHT YELLOW LIGHT HORN
Maximum authorised
slope not reached
Lit Unlit Stop
Maximum authorised
slope reached
Lit Lit
Sounds
intermittently
14 - LEVELLING SENSOR (second version)
1°An indicator light on the levelling sensor indicates its status:
INDICATOR LIGHT HORN
Maximum authorised
slope not reached
Lit Stop
Maximum authorised
slope reached
Unlit Sounds intermittently
12 - BLUE FLASHING LIGHT (OPTION: "SAFEMANSYSTEM")
OPTIONS.
