Manitou 200 ATJ - Interface Screen; Backup Pump Button; Horn

2 - 32
8
9
10
10 - HORN
Up to machine no. 949266
The horn sounds:
- When the horn button is pressed.
ALL MOVEMENTS ALARM option: This sounds intermittently when the controls are
activated and when driving/steering the platform.
DRIVING/STEERING ALARM option: This sounds intermittently when driving/steering
the platform.
From machine no. 949267
The horn sounds:
- When the horn button is pressed.
- Depending on version, twice when the machine is turned on without starting the
engine in the next 10 seconds,
SCREEN DISPLAY - DESCRIPTION OF PAGES FROM
MACHINE No. 949267: ALARM PAGE.
ALL MOVEMENTS ALARM option: This sounds intermittently when the controls are
activated and when driving/steering the platform,
SUB-MENU DEFINITIONS FROM
MACHINE No. 949267: USER OPTIONS: HORN MODE.
DRIVING/STEERING ALARM option: This sounds intermittently when driving/steering
the platform,
SUB-MENU DEFINITIONS FROM MACHINE No. 949267: USER OPTIONS:
HORN MODE.
Option "SafeManSystem": It sounds intermittently when the system is in alarm mode,
OPTIONS.

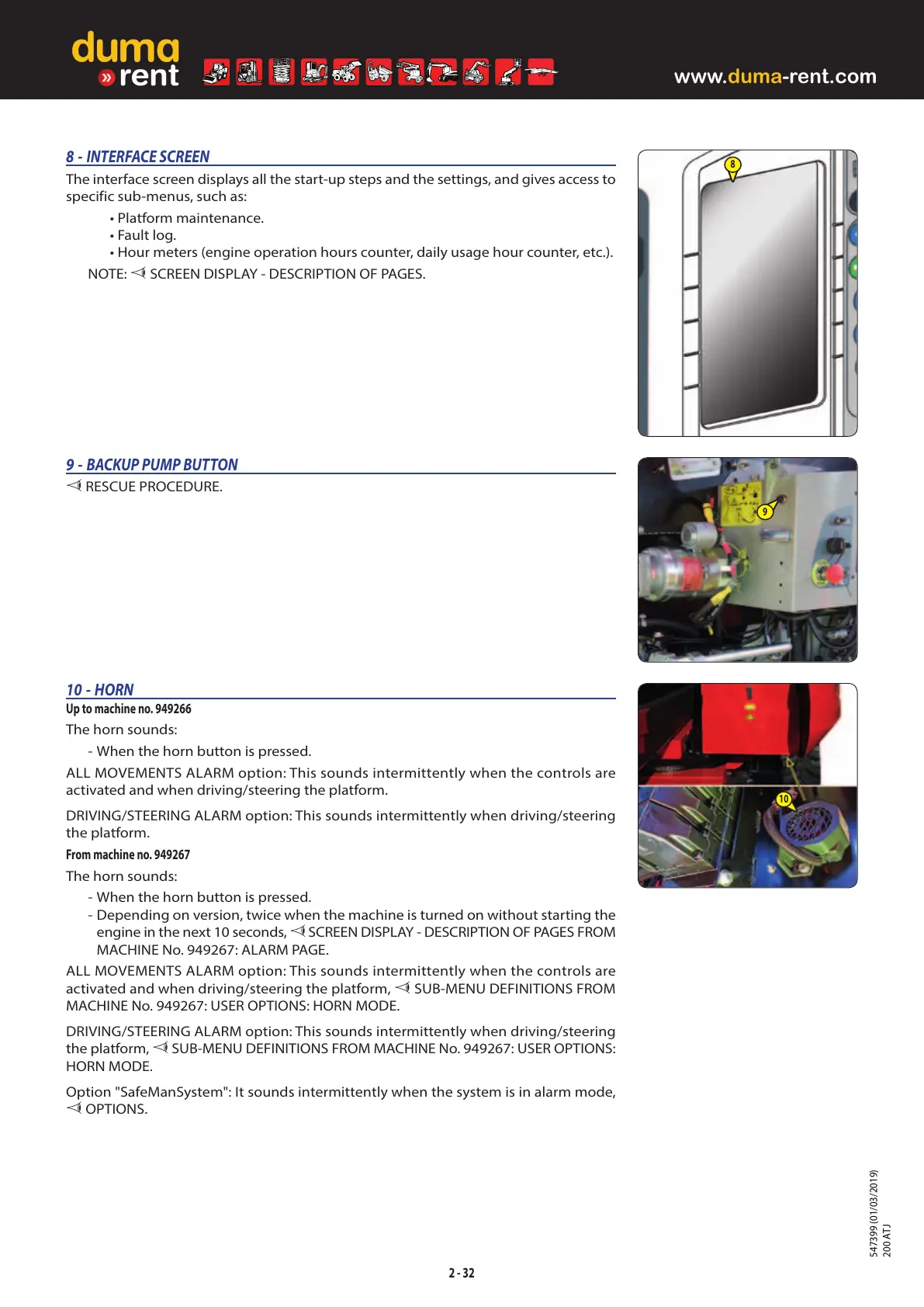

8 - INTERFACE SCREEN
The interface screen displays all the start-up steps and the settings, and gives access to
specific sub-menus, such as:
• Platform maintenance.
• Fault log.
• Hour meters (engine operation hours counter, daily usage hour counter, etc.).
NOTE:
SCREEN DISPLAY - DESCRIPTION OF PAGES.
9 - BACKUP PUMP BUTTON
RESCUE PROCEDURE.
