Manitou 200 ATJ - Front and Rear Wheel Reduction Gear Oil

3 - 51
1
A
B

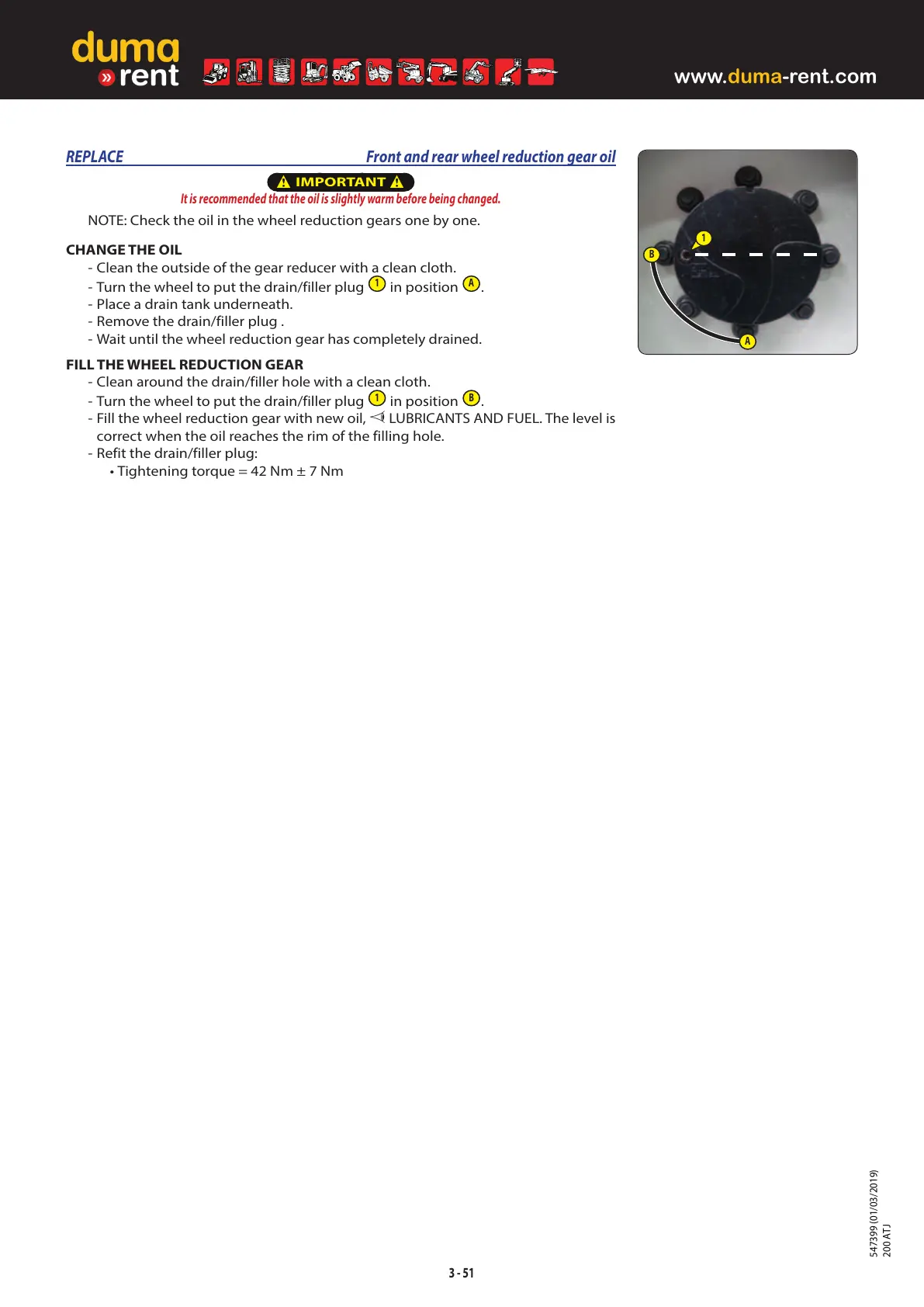

REPLACE Front and rear wheel reduction gear oil

IMPORTANT

It is recommended that the oil is slightly warm before being changed.
NOTE: Check the oil in the wheel reduction gears one by one.
CHANGE THE OIL
- Clean the outside of the gear reducer with a clean cloth.
- Turn the wheel to put the drain/filler plug
1
in position
A
.
- Place a drain tank underneath.
- Remove the drain/filler plug .
- Wait until the wheel reduction gear has completely drained.
FILL THE WHEEL REDUCTION GEAR
- Clean around the drain/filler hole with a clean cloth.
- Turn the wheel to put the drain/filler plug
1
in position
B
.
- Fill the wheel reduction gear with new oil, LUBRICANTS AND FUEL. The level is
correct when the oil reaches the rim of the filling hole.
- Refit the drain/filler plug:
• Tightening torque = 42Nm ± 7Nm
547399 (01/03/2019) 200 ATJ
