3 - 14
A
1
2
1

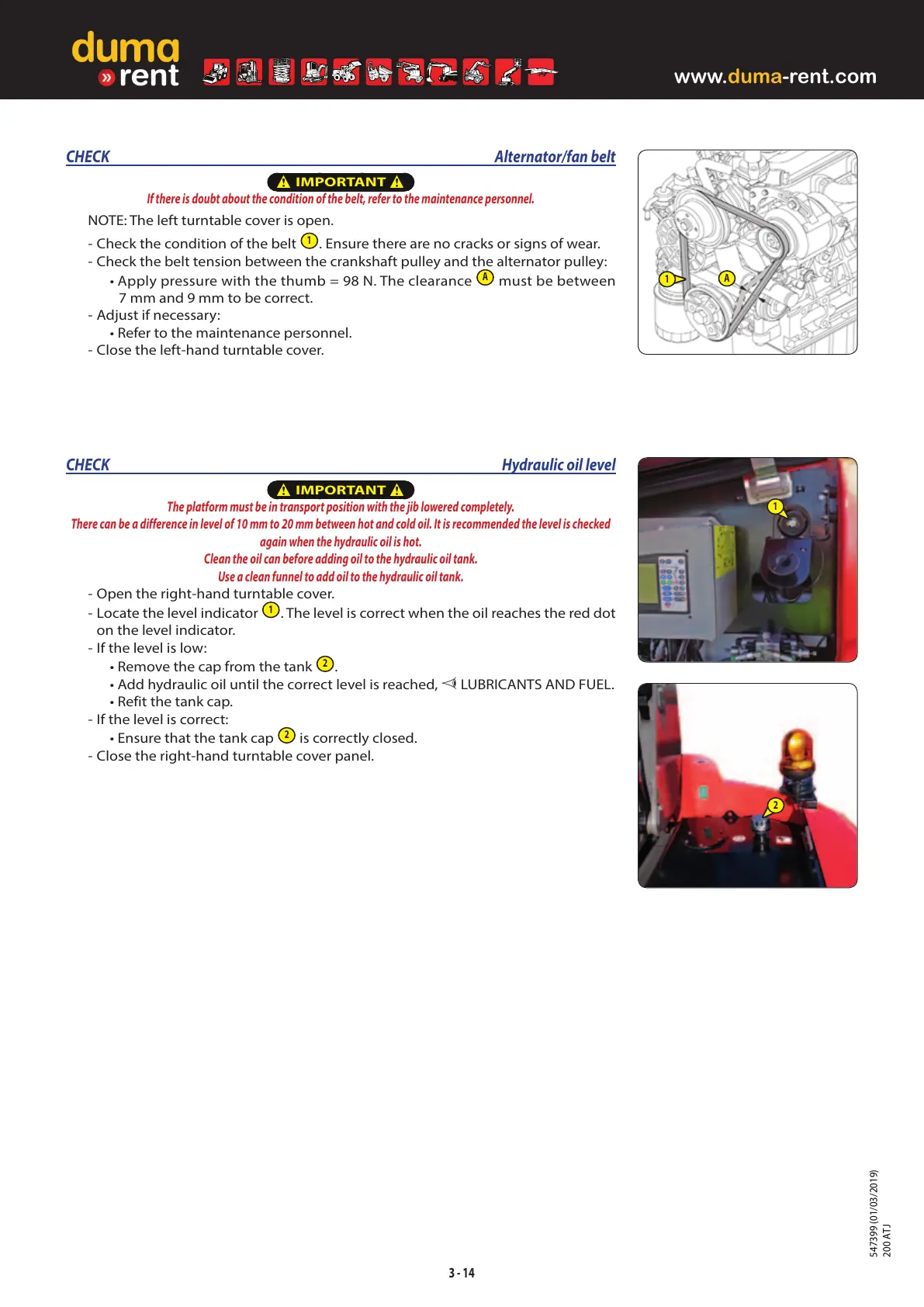

CHECK Alternator/fan belt
IMPORTANT
If there is doubt about the condition of the belt, refer to the maintenance personnel.
NOTE: The left turntable cover is open.
- Check the condition of the belt
1
. Ensure there are no cracks or signs of wear.
- Check the belt tension between the crankshaft pulley and the alternator pulley:
• Apply pressure with the thumb= 98N. The clearance
A
must be between
7mm and 9mm to be correct.
- Adjust if necessary:
• Refer to the maintenance personnel.
- Close the left-hand turntable cover.
CHECK Hydraulic oil level
IMPORTANT
The platform must be in transport position with the jib lowered completely.
There can be a difference in level of 10 mm to 20 mm between hot and cold oil. It is recommended the level is checked
again when the hydraulic oil is hot.
Clean the oil can before adding oil to the hydraulic oil tank.
Use a clean funnel to add oil to the hydraulic oil tank.
- Open the right-hand turntable cover.
- Locate the level indicator
1
. The level is correct when the oil reaches the red dot
on the level indicator.
- If the level is low:
• Remove the cap from the tank
2
.
• Add hydraulic oil until the correct level is reached, LUBRICANTS AND FUEL.
• Refit the tank cap.
- If the level is correct:
• Ensure that the tank cap
2
is correctly closed.
- Close the right-hand turntable cover panel.
