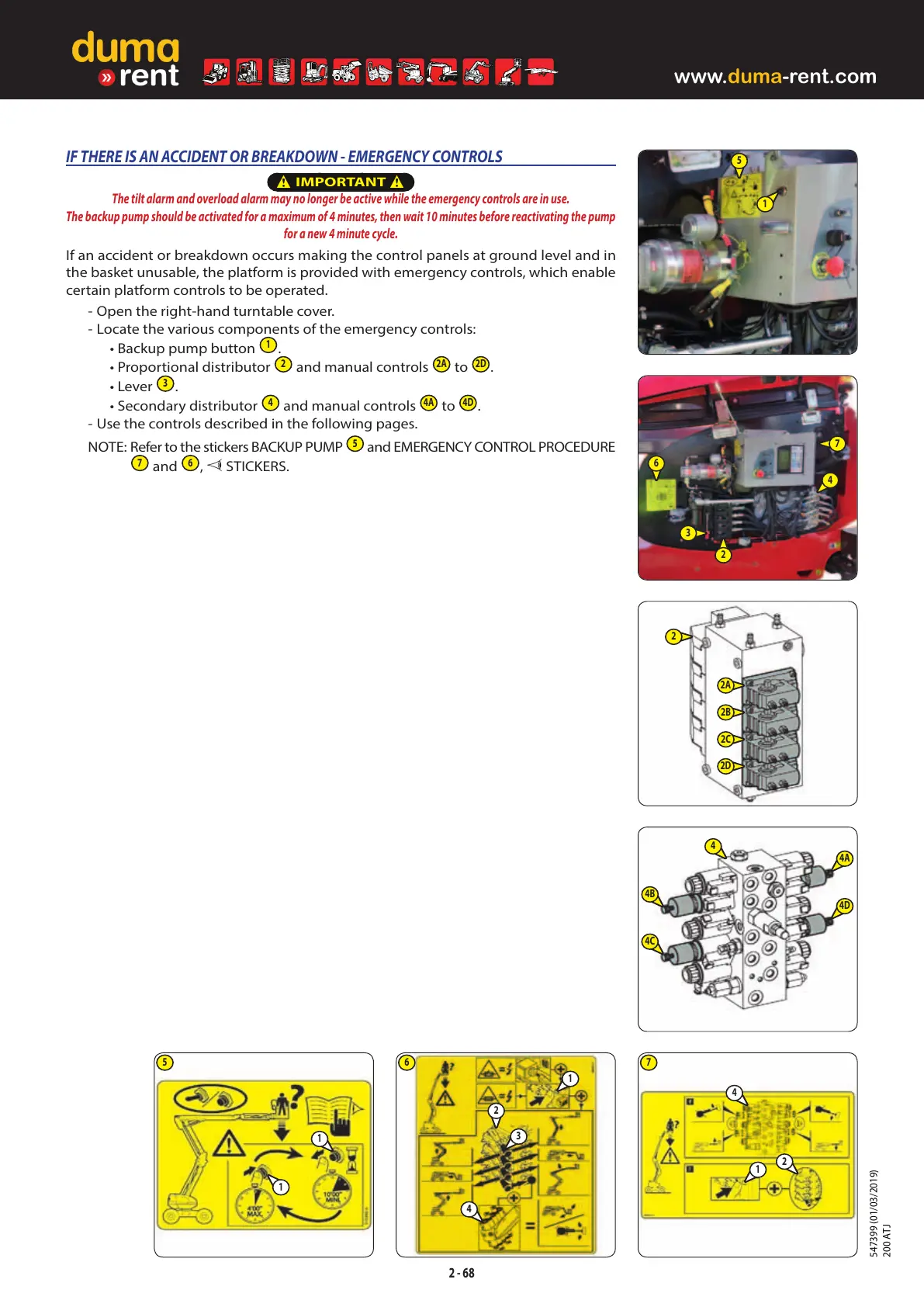

IF THERE IS AN ACCIDENT OR BREAKDOWN - EMERGENCY CONTROLS

IMPORTANT

The tilt alarm and overload alarm may no longer be active while the emergency controls are in use.
The backup pump should be activated for a maximum of 4 minutes, then wait 10 minutes before reactivating the pump
for a new 4 minute cycle.
If an accident or breakdown occurs making the control panels at ground level and in
the basket unusable, the platform is provided with emergency controls, which enable
certain platform controls to be operated.
- Open the right-hand turntable cover.
- Locate the various components of the emergency controls:
• Backup pump button
1
.
• Proportional distributor
2
and manual controls
2A
to
2D
.
• Lever
3
.
• Secondary distributor
4
and manual controls
4A
to
4D
.
- Use the controls described in the following pages.
NOTE: Refer to the stickers BACKUP PUMP
5
and EMERGENCY CONTROL PROCEDURE
7
and
6
, STICKERS.
547399 (01/03/2019) 200 ATJ
