3 - 46
2
2
1
1

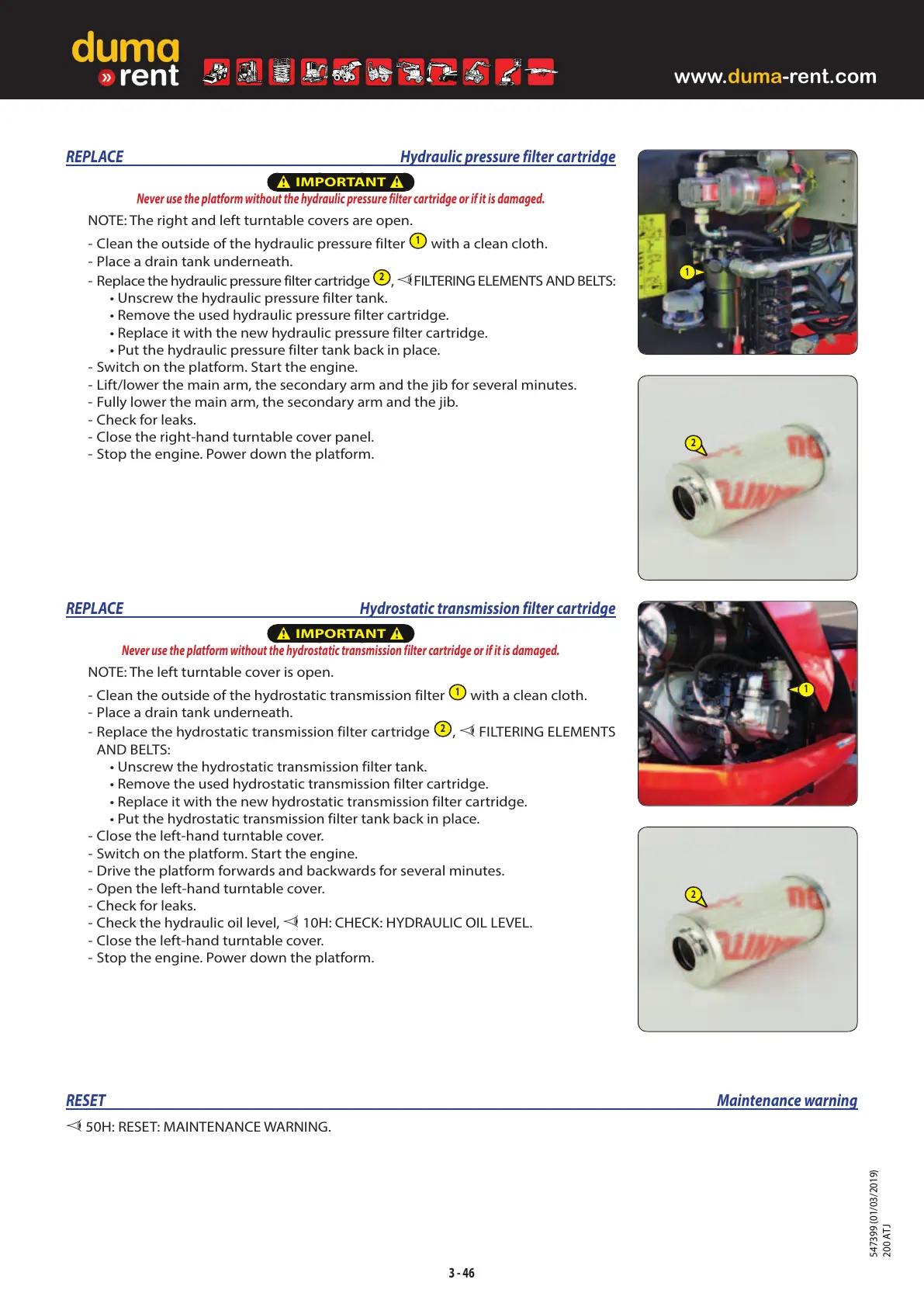

REPLACE Hydraulic pressure filter cartridge
IMPORTANT
Never use the platform without the hydraulic pressure filter cartridge or if it is damaged.
NOTE: The right and left turntable covers are open.
- Clean the outside of the hydraulic pressure filter
1
with a clean cloth.
- Place a drain tank underneath.
- Replace the hydraulic pressure filter cartridge
2
, FILTERING ELEMENTS AND BELTS:
• Unscrew the hydraulic pressure filter tank.
• Remove the used hydraulic pressure filter cartridge.
• Replace it with the new hydraulic pressure filter cartridge.
• Put the hydraulic pressure filter tank back in place.
- Switch on the platform. Start the engine.
- Lift/lower the main arm, the secondary arm and the jib for several minutes.
- Fully lower the main arm, the secondary arm and the jib.
- Check for leaks.
- Close the right-hand turntable cover panel.
- Stop the engine. Power down the platform.
REPLACE Hydrostatic transmission filter cartridge
IMPORTANT
Never use the platform without the hydrostatic transmission filter cartridge or if it is damaged.
NOTE: The left turntable cover is open.
- Clean the outside of the hydrostatic transmission filter
1
with a clean cloth.
- Place a drain tank underneath.
- Replace the hydrostatic transmission filter cartridge
2
, FILTERING ELEMENTS
AND BELTS:
• Unscrew the hydrostatic transmission filter tank.
• Remove the used hydrostatic transmission filter cartridge.
• Replace it with the new hydrostatic transmission filter cartridge.
• Put the hydrostatic transmission filter tank back in place.
- Close the left-hand turntable cover.
- Switch on the platform. Start the engine.
- Drive the platform forwards and backwards for several minutes.
- Open the left-hand turntable cover.
- Check for leaks.
- Check the hydraulic oil level,
10H: CHECK: HYDRAULIC OIL LEVEL.
- Close the left-hand turntable cover.
- Stop the engine. Power down the platform.
RESET Maintenance warning
50H: RESET: MAINTENANCE WARNING.
547399 (01/03/2019)
200 ATJ
