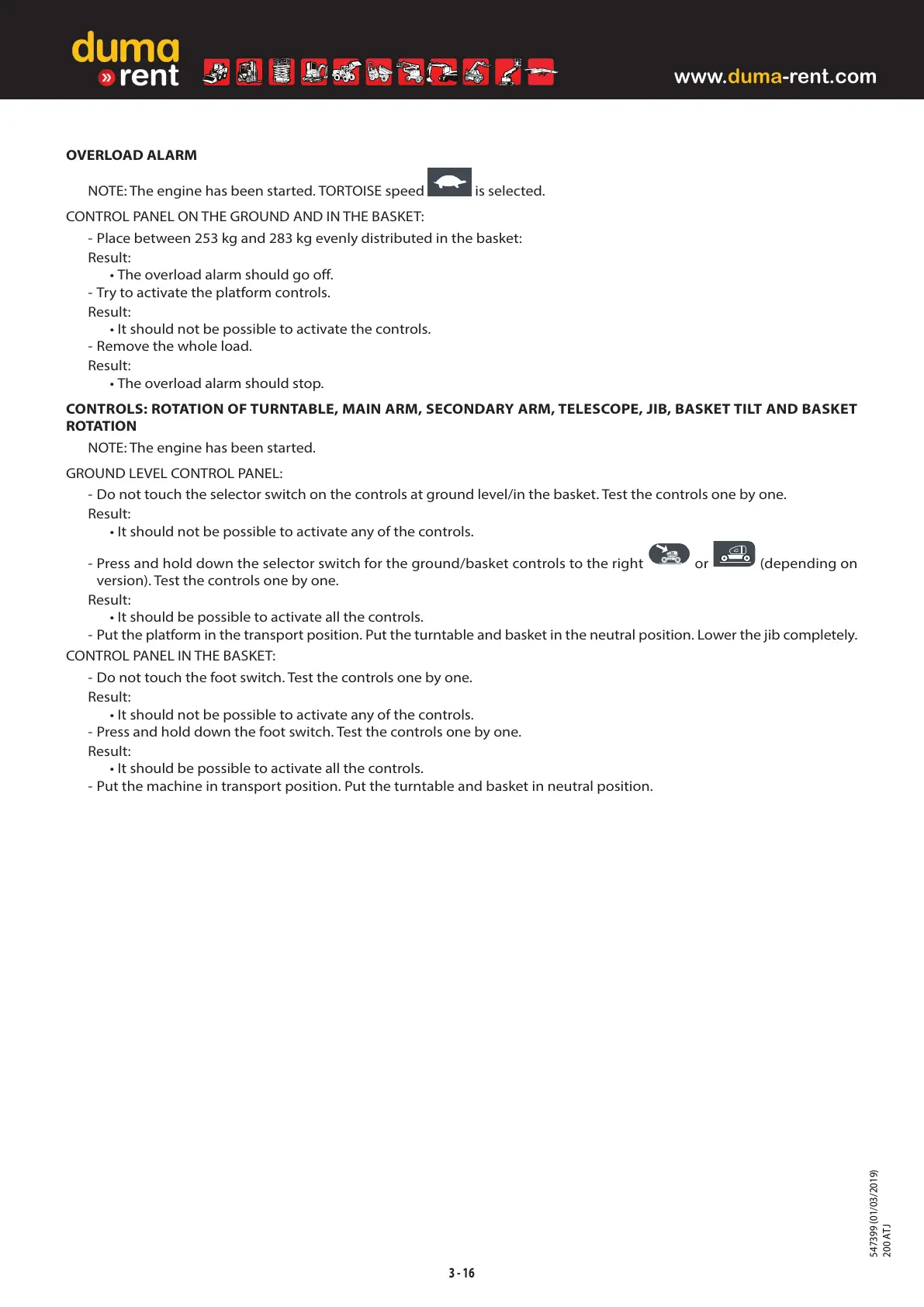

3 - 16
OVERLOAD ALARM
NOTE: The engine has been started. TORTOISE speed
is selected.
CONTROL PANEL ON THE GROUND AND IN THE BASKET:
- Place between 253 kg and 283 kg evenly distributed in the basket:
Result:
• The overload alarm should go off.
- Try to activate the platform controls.
Result:
• It should not be possible to activate the controls.
- Remove the whole load.
Result:
• The overload alarm should stop.
CONTROLS: ROTATION OF TURNTABLE, MAIN ARM, SECONDARY ARM, TELESCOPE, JIB, BASKET TILT AND BASKET
ROTATION
NOTE: The engine has been started.
GROUND LEVEL CONTROL PANEL:
- Do not touch the selector switch on the controls at ground level/in the basket. Test the controls one by one.
Result:
• It should not be possible to activate any of the controls.
- Press and hold down the selector switch for the ground/basket controls to the right
or (depending on
version). Test the controls one by one.
Result:
• It should be possible to activate all the controls.
- Put the platform in the transport position. Put the turntable and basket in the neutral position. Lower the jib completely.
CONTROL PANEL IN THE BASKET:
- Do not touch the foot switch. Test the controls one by one.
Result:
• It should not be possible to activate any of the controls.
- Press and hold down the foot switch. Test the controls one by one.
Result:
• It should be possible to activate all the controls.
- Put the machine in transport position. Put the turntable and basket in neutral position.
547399 (01/03/2019)
200 ATJ
