2 - 9

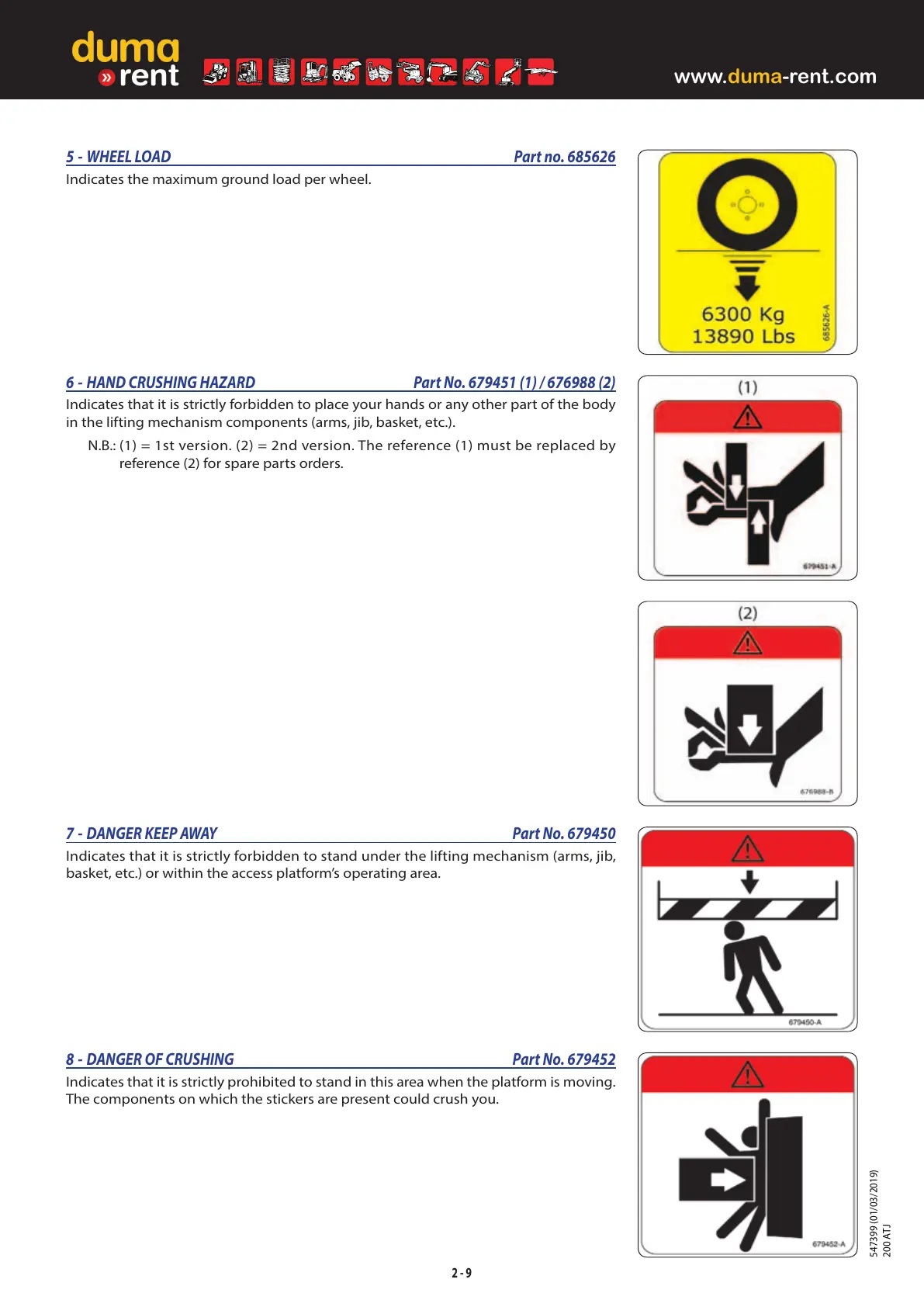

5 - WHEEL LOAD Part no. 685626
Indicates the maximum ground load per wheel.
6 - HAND CRUSHING HAZARD Part No. 679451 (1) / 676988 (2)
Indicates that it is strictly forbidden to place your hands or any other part of the body
in the lifting mechanism components (arms, jib, basket, etc.).
N.B.: (1) = 1st version. (2) = 2nd version. The reference (1) must be replaced by
reference (2) for spare parts orders.
8 - DANGER OF CRUSHING Part No. 679452
Indicates that it is strictly prohibited to stand in this area when the platform is moving.
The components on which the stickers are present could crush you.
7 - DANGER KEEP AWAY Part No. 679450
Indicates that it is strictly forbidden to stand under the lifting mechanism (arms, jib,
basket, etc.) or within the access platform’s operating area.
