Manitou 200 ATJ - Freewheel and Winch

3 - 63
3
2
4
2
1A
1B
1
1
WINCH Platform

IMPORTANT

Before putting the platform into freewheel:
- The platform must be on a level surface.
- The wheels must be chocked.
The basket must be empty when the platform is being winched.

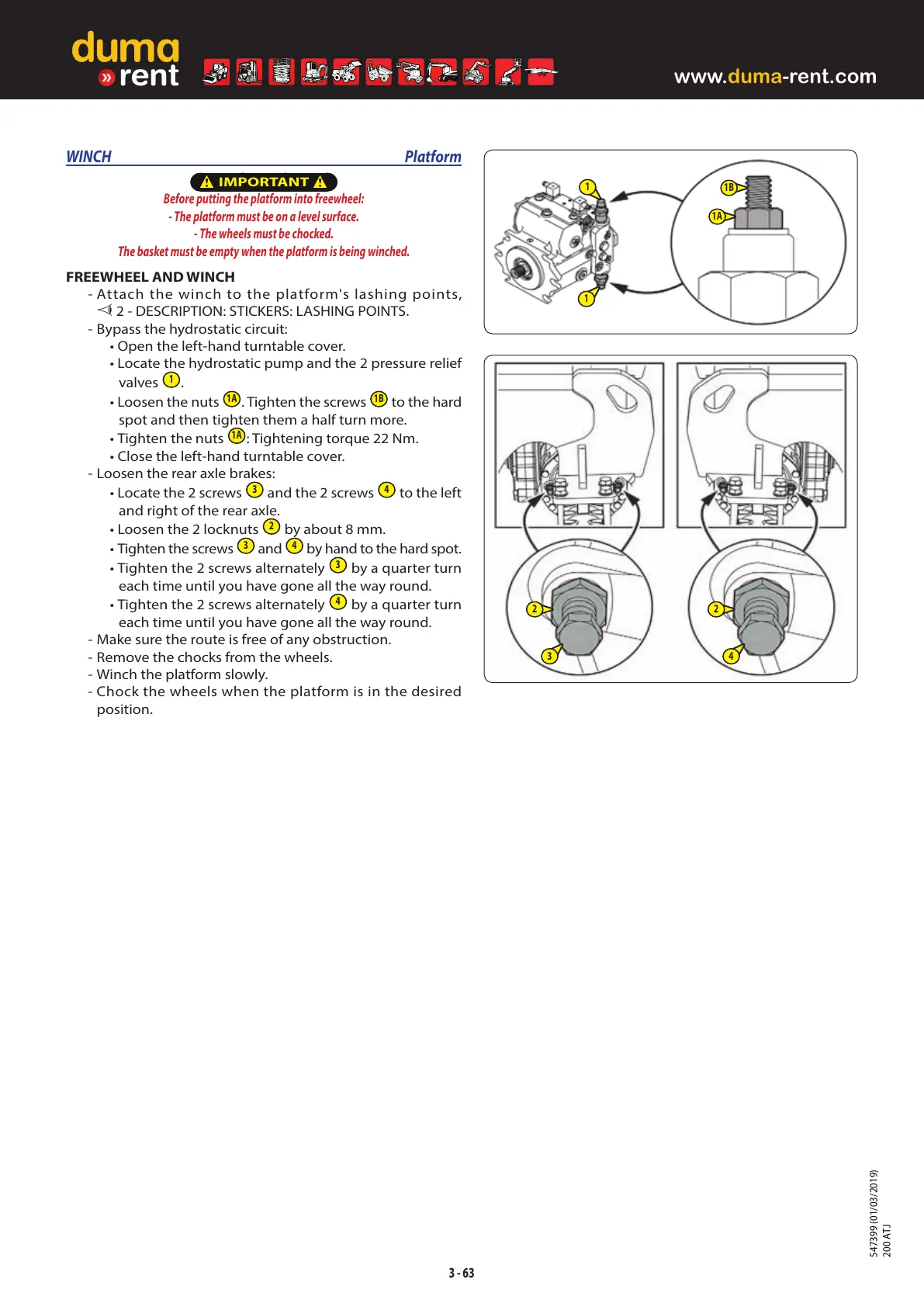

FREEWHEEL AND WINCH
- Attach the winch to the platform's lashing points,
2-DESCRIPTION: STICKERS: LASHING POINTS.
- Bypass the hydrostatic circuit:
• Open the left-hand turntable cover.
• Locate the hydrostatic pump and the 2 pressure relief
valves
1
.
• Loosen the nuts
1A
. Tighten the screws
1B
to the hard
spot and then tighten them a half turn more.
• Tighten the nuts
1A
: Tightening torque 22Nm.
• Close the left-hand turntable cover.
- Loosen the rear axle brakes:
• Locate the 2screws
3
and the 2screws
4
to the left
and right of the rear axle.
• Loosen the 2 locknuts
2
by about 8mm.
• Tighten the screws
3
and
4
by hand to the hard spot.
• Tighten the 2 screws alternately
3
by a quarter turn
each time until you have gone all the way round.
• Tighten the 2 screws alternately
4
by a quarter turn
each time until you have gone all the way round.
- Make sure the route is free of any obstruction.
- Remove the chocks from the wheels.
- Winch the platform slowly.
- Chock the wheels when the platform is in the desired
position.
547399 (01/03/2019) 200 ATJ
