Manitou 200 ATJ User Manual

3 - 20
3
2
1

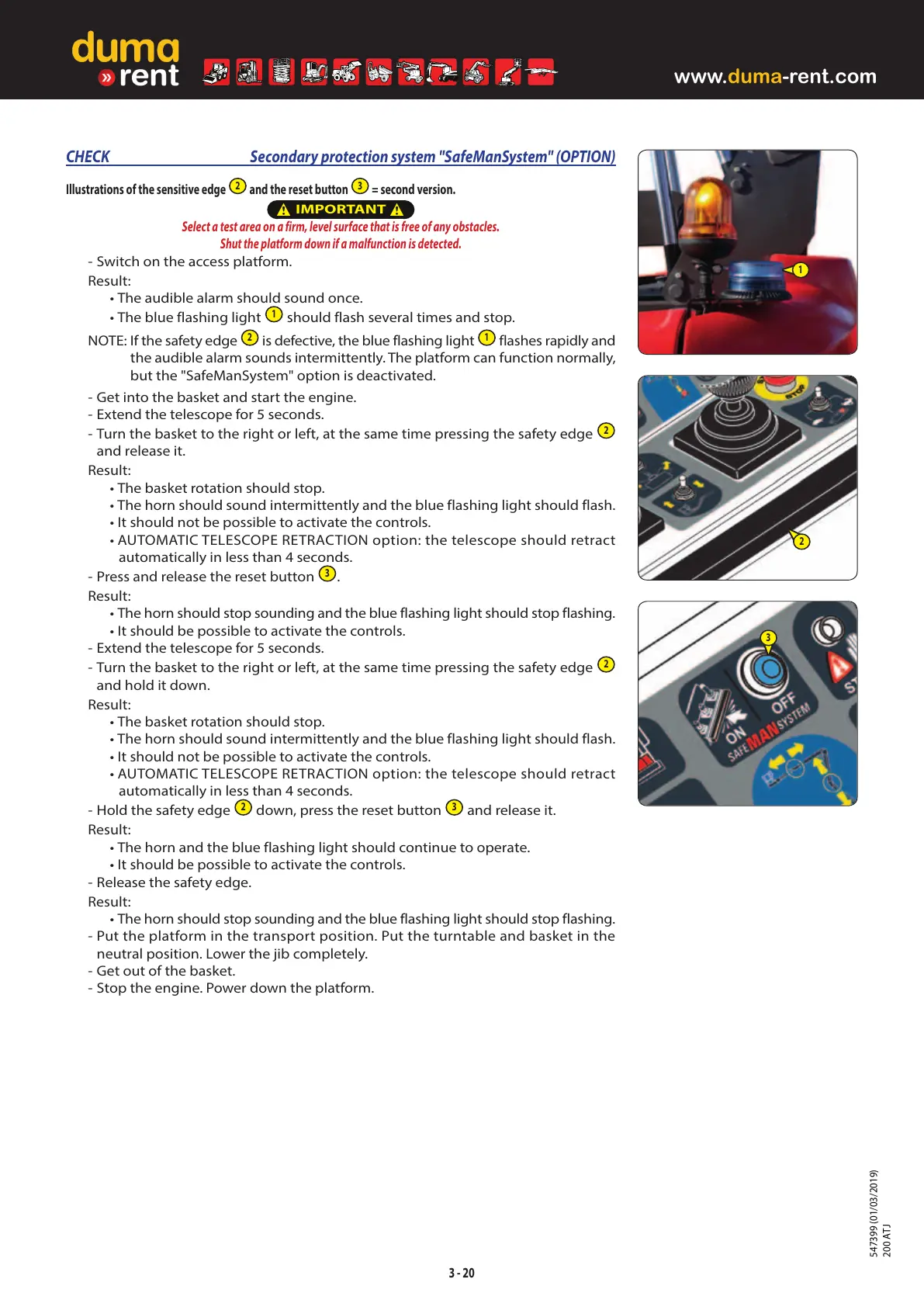

CHECK Secondary protection system "SafeManSystem" (OPTION)
Illustrations of the sensitive edge
2
and the reset button
3
= second version.

IMPORTANT

Select a test area on a firm, level surface that is free of any obstacles.
Shut the platform down if a malfunction is detected.
- Switch on the access platform.
Result:
• The audible alarm should sound once.
• The blue flashing light
1
should flash several times and stop.
NOTE: If the safety edge
2
is defective, the blue flashing light
1
flashes rapidly and
the audible alarm sounds intermittently. The platform can function normally,
but the "SafeManSystem" option is deactivated.
- Get into the basket and start the engine.
- Extend the telescope for 5 seconds.
- Turn the basket to the right or left, at the same time pressing the safety edge
2
and release it.
Result:
• The basket rotation should stop.
• The horn should sound intermittently and the blue flashing light should flash.
• It should not be possible to activate the controls.
• AUTOMATIC TELESCOPE RETRACTION option: the telescope should retract
automatically in less than 4 seconds.
- Press and release the reset button
3
.
Result:
• The horn should stop sounding and the blue flashing light should stop flashing.
• It should be possible to activate the controls.
- Extend the telescope for 5 seconds.
- Turn the basket to the right or left, at the same time pressing the safety edge
2
and hold it down.
Result:
• The basket rotation should stop.
• The horn should sound intermittently and the blue flashing light should flash.
• It should not be possible to activate the controls.
• AUTOMATIC TELESCOPE RETRACTION option: the telescope should retract
automatically in less than 4 seconds.
- Hold the safety edge
2
down, press the reset button
3
and release it.
Result:
• The horn and the blue flashing light should continue to operate.
• It should be possible to activate the controls.
- Release the safety edge.
Result:
• The horn should stop sounding and the blue flashing light should stop flashing.
- Put the platform in the transport position. Put the turntable and basket in the
neutral position. Lower the jib completely.
- Get out of the basket.
- Stop the engine. Power down the platform.
547399 (01/03/2019) 200 ATJ
www.duma-rent.com

Manitou 200 ATJ Specifications

General

Lift Capacity	230 kg
Drive Speed	4.5 km/h
Gradeability	40%
Outriggers	No
Horizontal Outreach	12.1 m
Maximum Outreach	12.1 m
Steering	4-wheel
