AXLES/DRIVE SHAFTS/WHEELS AND TIRES CD3340B/YB4411
8-24
Published 04/07/2015 Control # 569-00

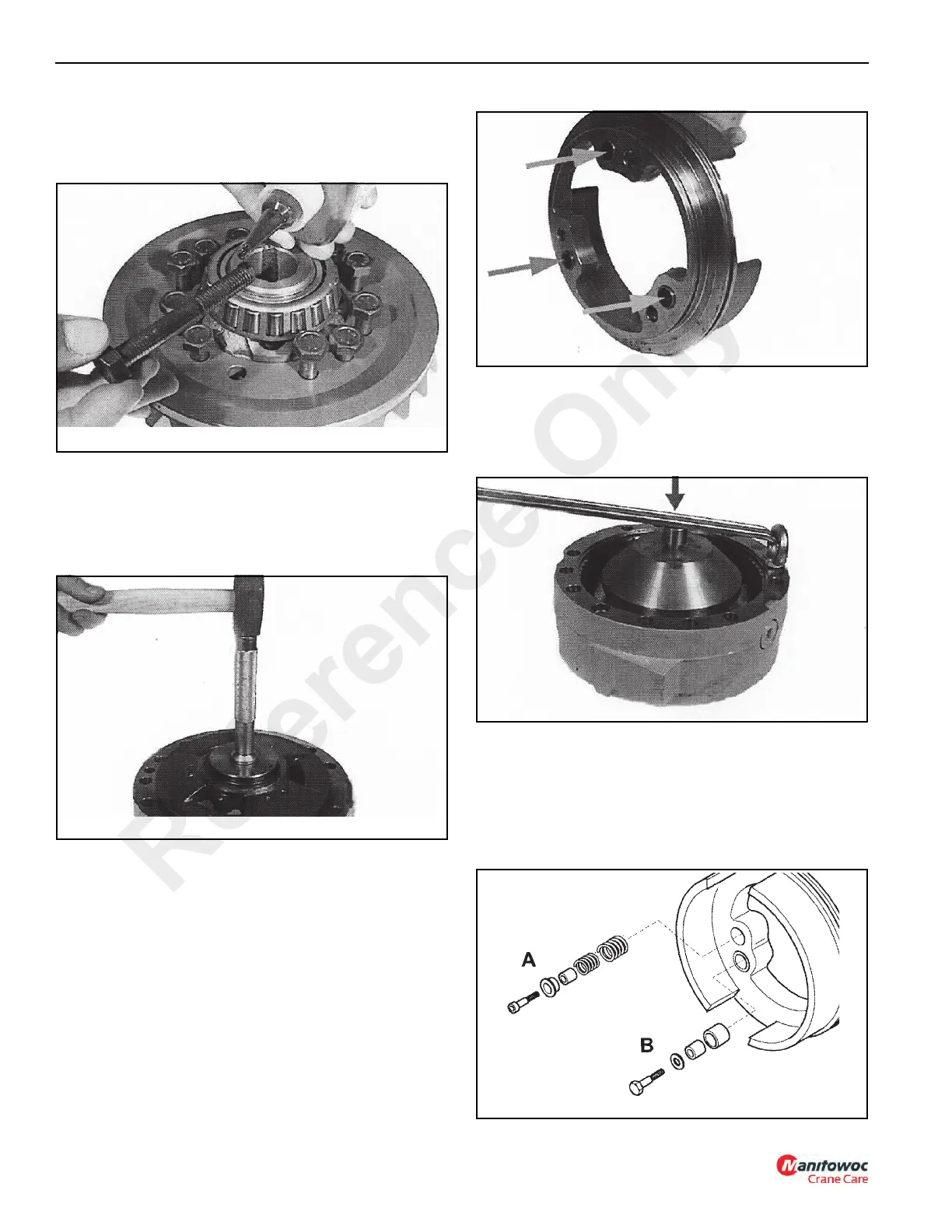

3. Position the ring bevel gear on the assembled
differential housing (Figure 8-94). Apply Loctite 270 on
the threads of screws. Install the screws and tighten to a
torque of 95 Nm (70 lb-ft).
Brake Flange and Differential Housing Assembly
1. Place the brake flange on a flat surface. Install the cup of
the taper roller bearing in position using SPECIAL TOOL
P/N 1901771, the interchangeable handle P/N 1901764
and a hammer (Figure 8-95).
2. Install the washers into the self-adjust housings
(Figure 8-96) of the brake piston. Push the washers into
the holes until they align with the piston supporting inner
surface.
Install the quad rings on the piston and coat the quad
ring surface of the piston with a light coat of grease.
3. Install the piston into the brake flange and position
SPECIAL TOOL P/N 1901779 or a flat disc on the piston
(Figure 8-97). With a lever anchored to an eyebolt, exert
just enough pressure to insert the piston into the brake
flange.
4. Install the self-adjust kit components in the correct
sequence (Figure 8-98).
Install the first three self-adjusting groups (A) and tighten
the screw to a torque of 10 Nm (7.35 lb-ft).
Install the remaining three groups (B) and tighten the
screws to a torque of 10 Nm (7.35 lb-ft).
