3. Lubricate the bushing and lips of the ring seal. Install the
U-joint inside the axle beam (Figure 8-117).
NOTE: Be careful not to damage the ring seal.
Wheel Hub Assembly
1. Install the bushing into the swivel housing with SPECIAL
TOOL P/N 1901766 and a hammer or press
(Figure 8-118).
Fill 3/4 of the ring seal cavity with grease. Apply sealing
compound on the outer metallic surface of the ring seal.
Install the ring seal into the swivel housing with
SPECIAL TOOL P/N 1901767 and a hammer.
2. Grease the inside of the kingpin cavities of the swivel
housing.
Place a shim under the Belleville washer and install this
assembly in each kingpin cavity (Figure 8-119).
NOTE: Be sure the shim is under the Belleville washer.
3. Place the lower kingpin on a workbench and install the
bearing cone (Figure 8-120) with SPECIAL TOOL P/N
1901781, using a press.

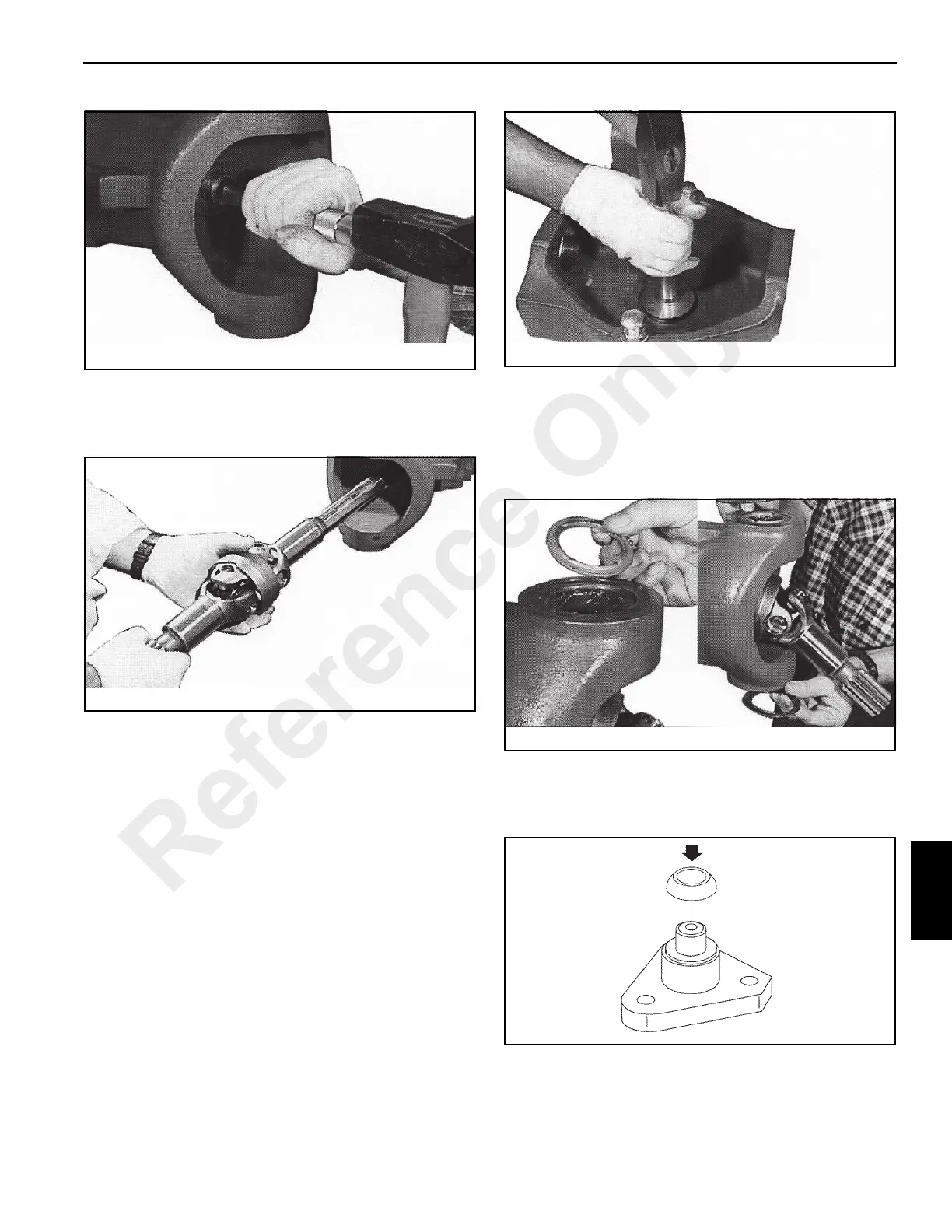

FIGURE 8-116
P0644
FIGURE 8-117
P0645
FIGURE 8-118
P0646
FIGURE 8-119
P0647
FIGURE 8-120
A0717
