Manitowoc GROVE GMK6400 User Manual

Maintenance work on the carrier
7.6 Transmission
16.11.2018
Maintenance manual 3 302 756 en 7 - 51
GMK6400

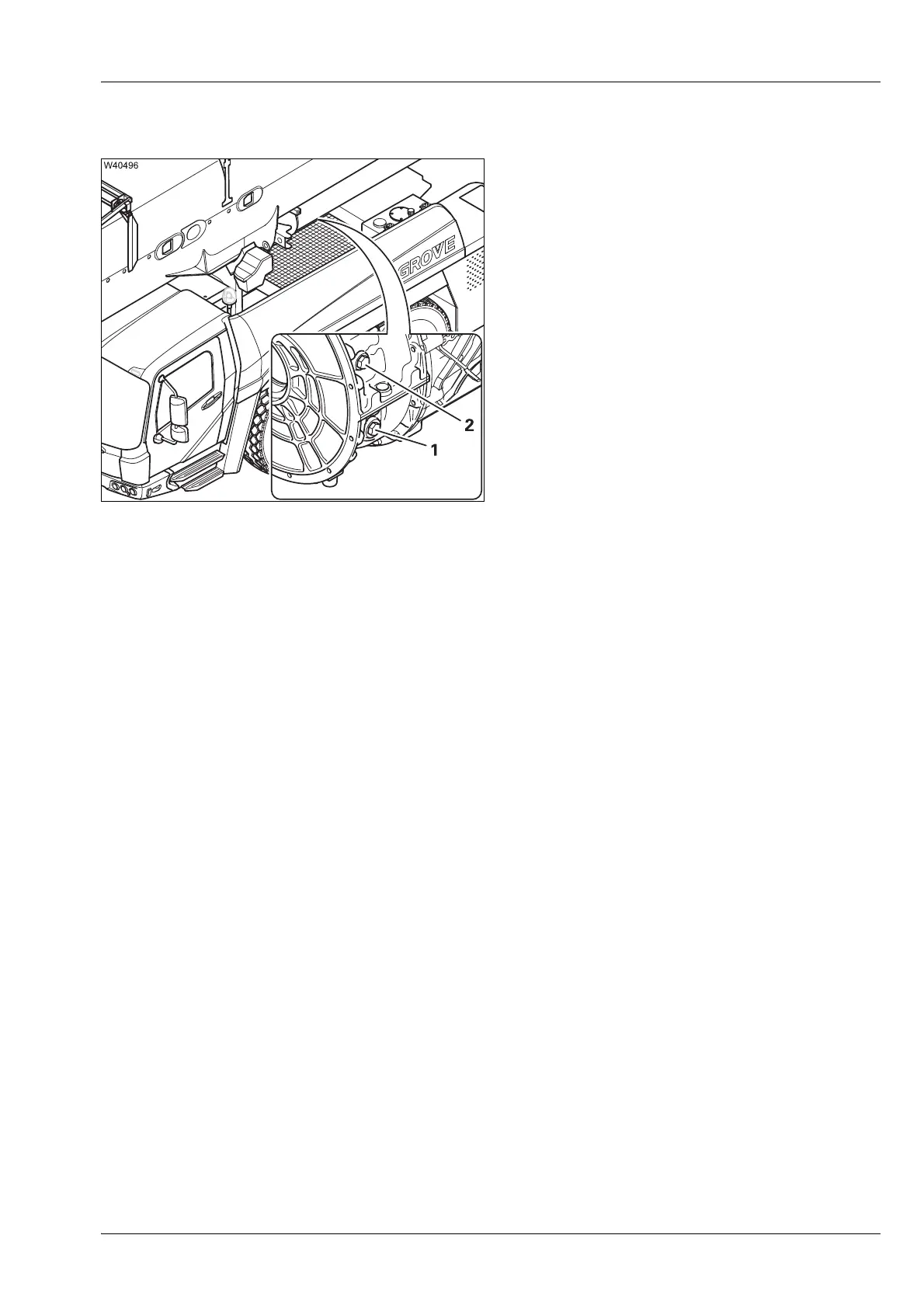

Topping up the oil
• Top up the oil through the opening (2) until
oil is visible in the sight glass (1).
• Replace the seal and tighten the drain
plug
(2) to a torque of 60 Nm (44.2 lbf ft).
• Perform a test drive and then check the oil level; à Test drive, p. 7 - 52.

Manitowoc GROVE GMK6400 Specifications

General

Brand	Manitowoc
Model	GROVE GMK6400
Category	Construction Equipment
Language	English
