Maintenance work on the superstructure
8.3 Hoists
16.11.2018
Maintenance manual 3 302 756 en 8 - 11
GMK6400
8.3 Hoists
8.3.1 Checking the oil level
Spare parts
and
tools
Prerequisites – The truck crane must be level.
– The auxiliary hoist (additional equipment) is rigged; à Operating manual.
– The engine must not be running and must be secured against unauthor-
ised use; à p. 2 - 3.
Checking the
oil
level

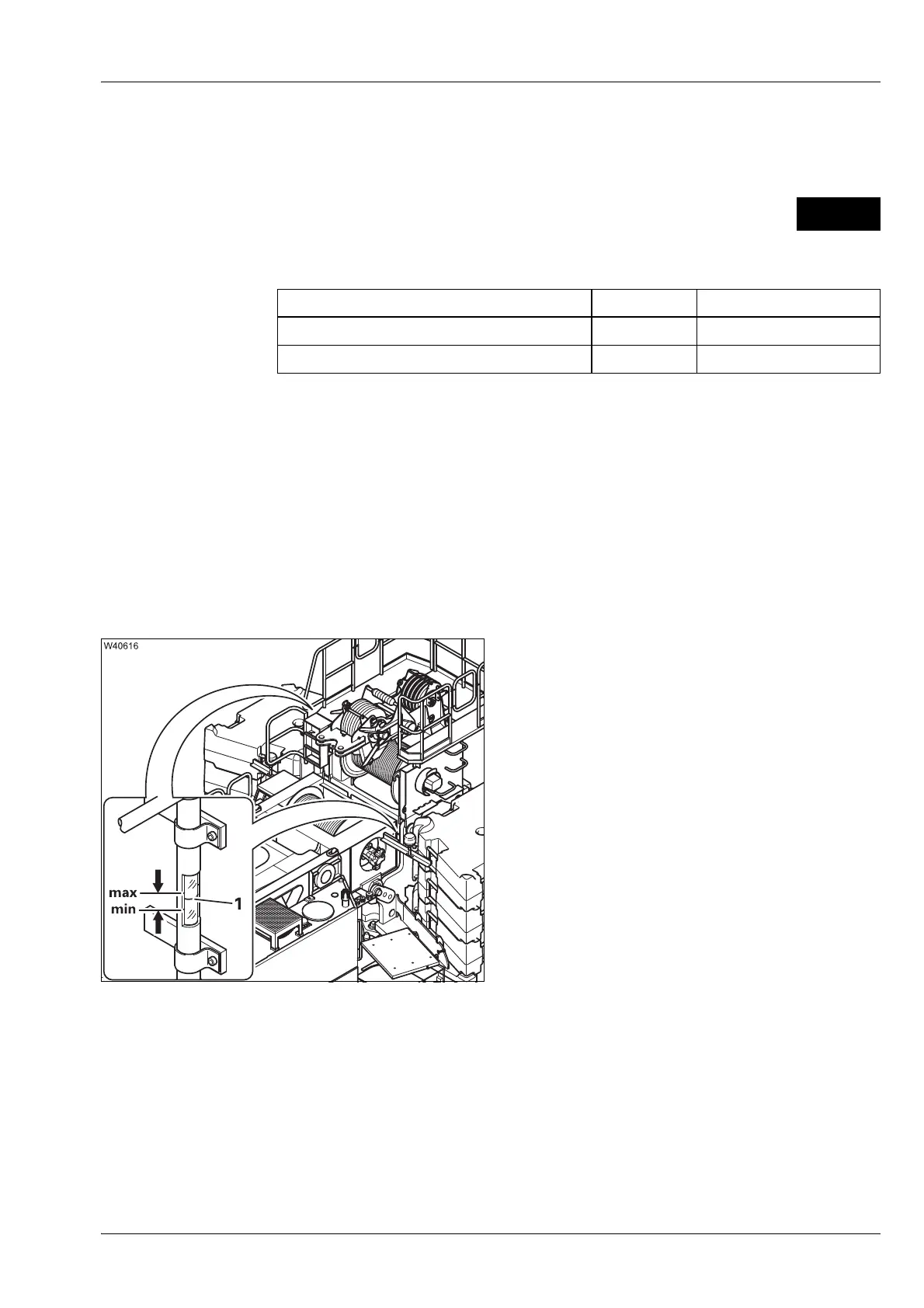

• Check that the oil level is visible between the
Min. and Max. marks (1).
If the oil level is too low
• Top up the oil; à p. 8 - 14.
H
The oil level in the hoist gear must be 20 mm below the centre of rotation of
the hoist. If the sight glass is loose in the clamps, or a new sight glass has
been fitted, you must adjust this difference in height before you adjust the
clamps.
W
Designation Quantity GROVE part no.
Gasket 14 x 18 St DIN 7603 2 03043733
Gasket 18 x 22 St DIN 7603 4 01927403
