Maintenance work on the superstructure
8.7 Hydraulic system
16.11.2018
Maintenance manual 3 302 756 en 8 - 53
GMK6400
8.7.8 Changing the hydraulic oil filter
All oil filters must be replaced when changing the oil.
In the event of a warning message, the red symbols in the Warning sub-
menu indicate which oil filters you have to change.
Spare parts
and
tools
– Torque wrench for 25 Nm (18.5 lbf ft).
– Receptacle, about 10 l (3 gal); à p. 2 - 4.
Prerequisites – The truck crane must be level and in on-road mode; à Operating manual.
– The engine must not be running and must be secured against unauthor-
ised use; à p. 2 - 3.
s

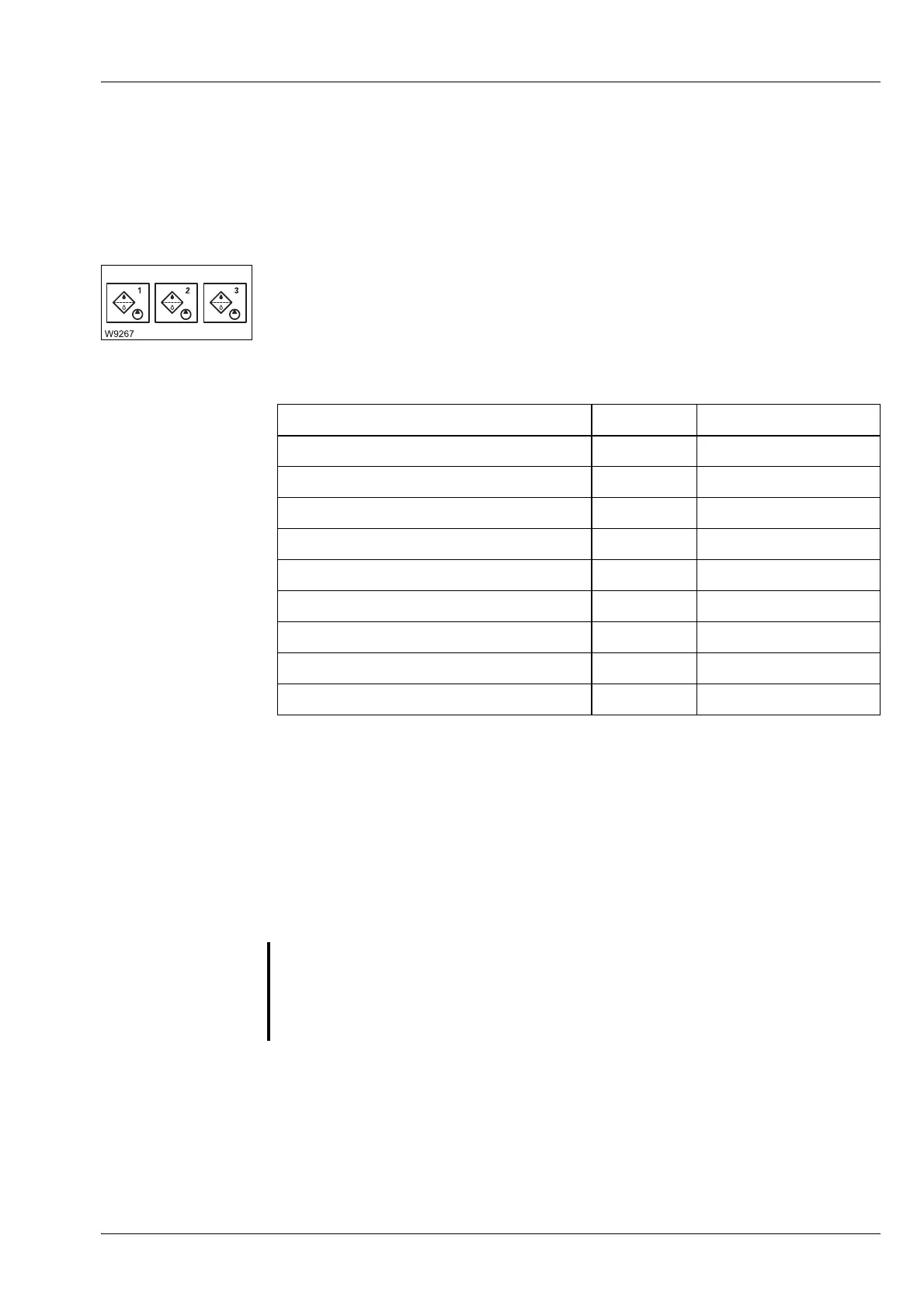

1 Red – Change oil filter 1
2 Red – Change oil filter 2
3 Red – Change oil filter 3
Designation Quantity GROVE part no.
For oil filter 1:
Filter 1 03325700
Packing set 1 03135853
For oil filter 2:
Filter 1 03317083
Cover gasket 1 01372280
For oil filter 3:
Filter 1 03046526
Housing packing set 1 03137065
O
Risk of damage to the environment from filter residues!
Store used hydraulic oil filter inserts in suitable receptacles and have them
disposed of properly by qualified personnel.
