Manitowoc GROVE GMK6400 User Manual

Maintenance work on the superstructure
8.10 Cable drums and slewing angle sensor
16.11.2018
Maintenance manual 3 302 756 en 8 - 87
GMK6400
8.10.2 Lubricating the slewing angle sensor
Grease, spare
parts, tools
– Grease gun from the tool set.
– Sealing agent (e.g. Hylomar).
– Torque wrench for 25 Nm (18.5 lbf ft).
Prerequisites – The engine must not be running and must be secured against unauthor-
ised use; à p. 2 - 3.
Lubrication

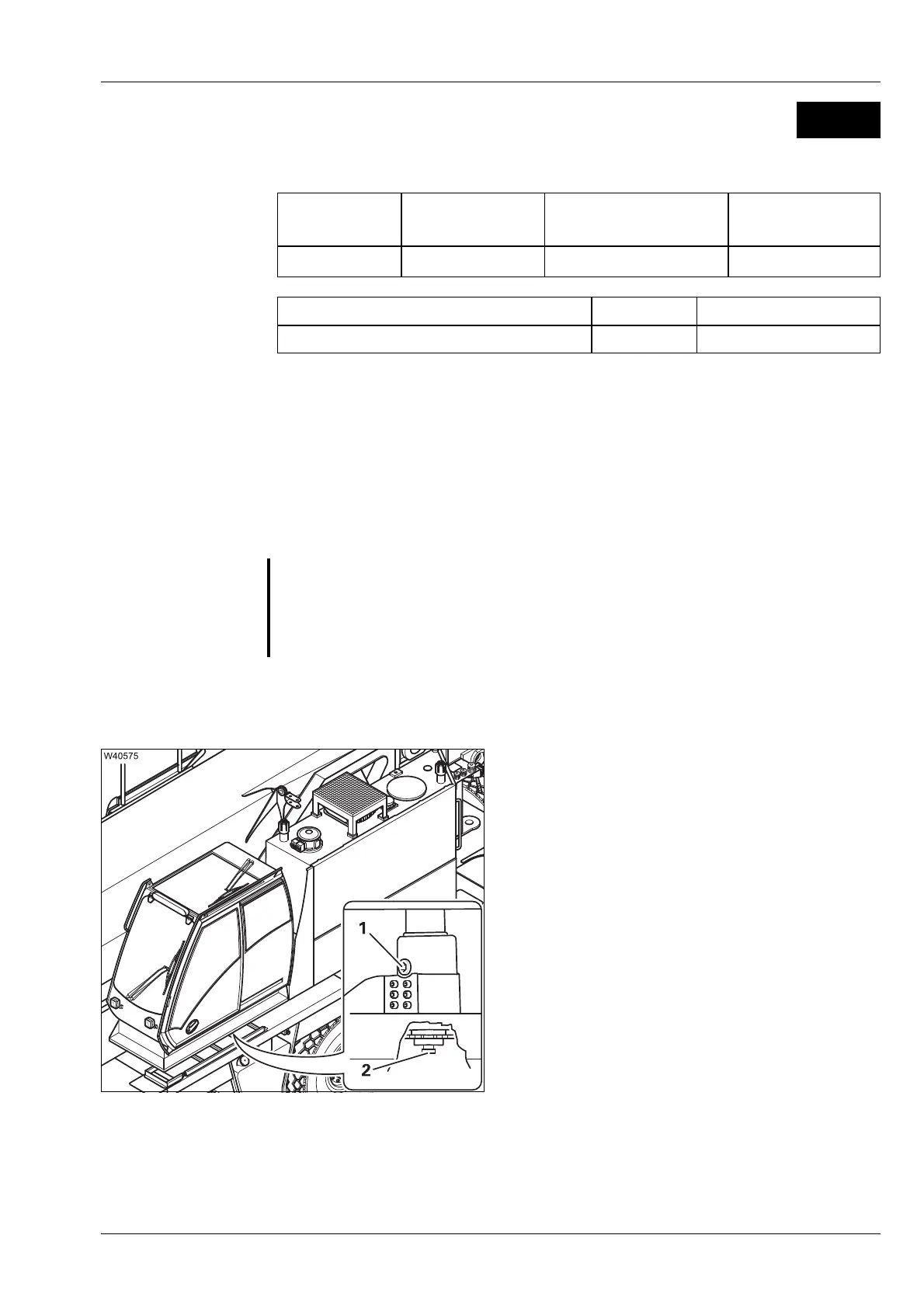

• Unscrew the bolt (1).
• Clean the grease nipple (2) and inject
about
5 cm³ (0.3 in³) of grease.
• Remove any excess grease, and close the
grease nipple.
• Tighten the bolt with a new gasket and
sealing agent – torque 25Nm (18.5 lbf ft).
Y 5
Lubricating
grease
Designation
to DIN 51502
Specifications
Classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
Designation Quantity GROVE part no.
Gasket 16 x 20 Cu DIN 7603 1 00117134
S
Risk of damage to the slewing angle sensor!
Before lubricating, always remove the screw from the slewing angle
sensor.
This prevents the slewing angle sensor from damage.
