Maintenance work on the superstructure
8.10 Cable drums and slewing angle sensor
16.11.2018
Maintenance manual 3 302 756 en 8 - 85
GMK6400
8.10 Cable drums and slewing angle sensor
8.10.1 Maintenance of the slip ring assemblies
The slip ring assemblies are located in:
Spare parts
and
tools
– Clean, lint-free cloth.
– Dry, oil-free compressed air.
Prerequisites For cable drum 1
– The main boom must be set down on the support; à Operating manual.
For cable drum 2
– The main boom must be fully raised; à Operating manual.
– The cover plate in front of the cable drum 2 is removed.
For cable drums 1 and 2
– The engine must not be running and must be secured against unauthor-
ised use; à p. 2 - 3.
– The selector handle must be removed from the battery master switch;
à p. 7 - 112.
s

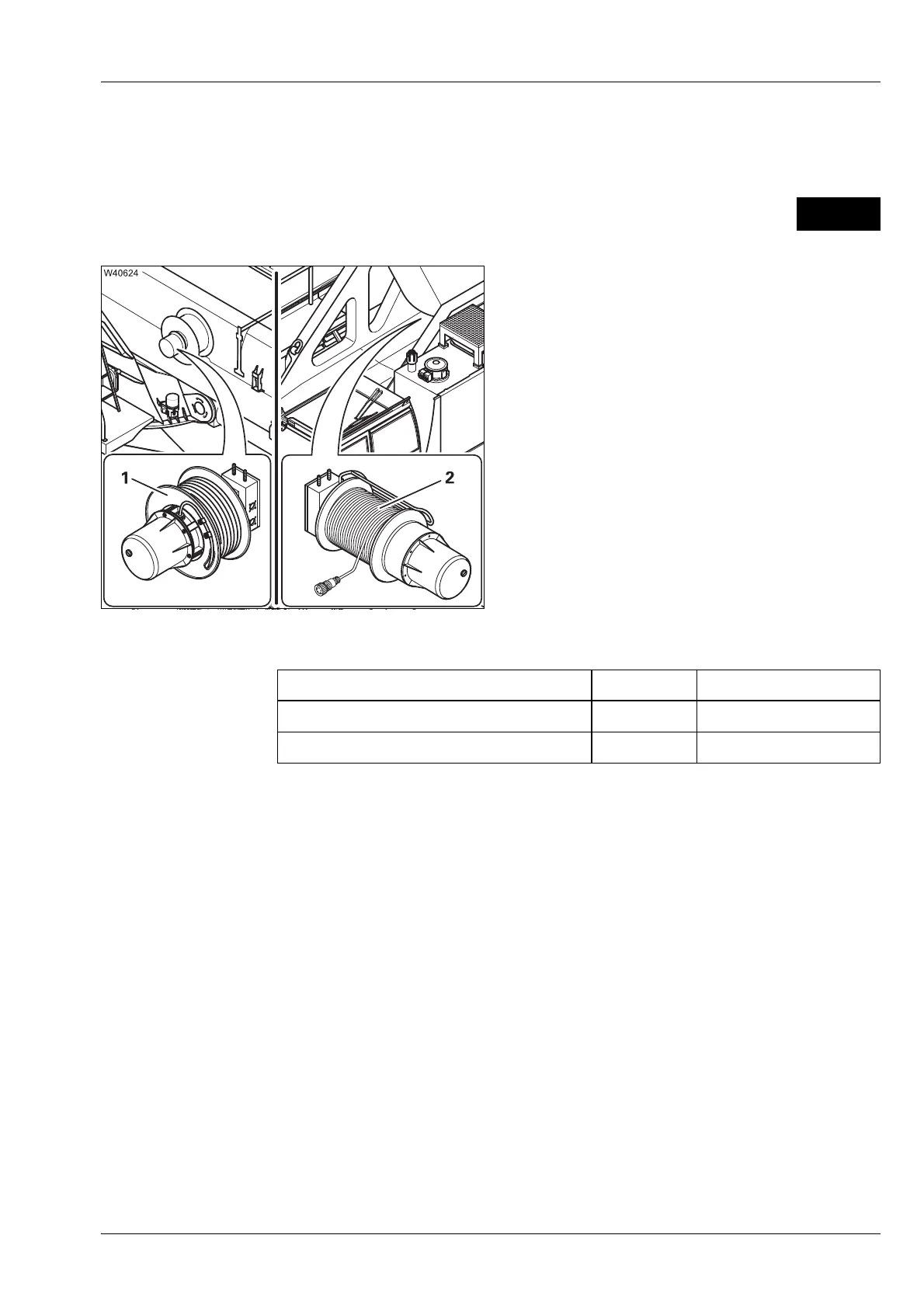

1 Cable drum 1
2 Cable drum 2
M 6
Designation Quantity GROVE part no.
Cover gasket for cable drum 1 1 03138891
Cover gasket for cable drum 2 1 03137971
