Maintenance work on the carrier
7.18 Towbar coupling
7 - 126 3 302 756 en Maintenance manual
GMK6400
16.11.2018
7.18.3 Checking the cotter pin
Prerequisites – The coupling is closed; à p. 7 - 124.
Checking the
cotter pin

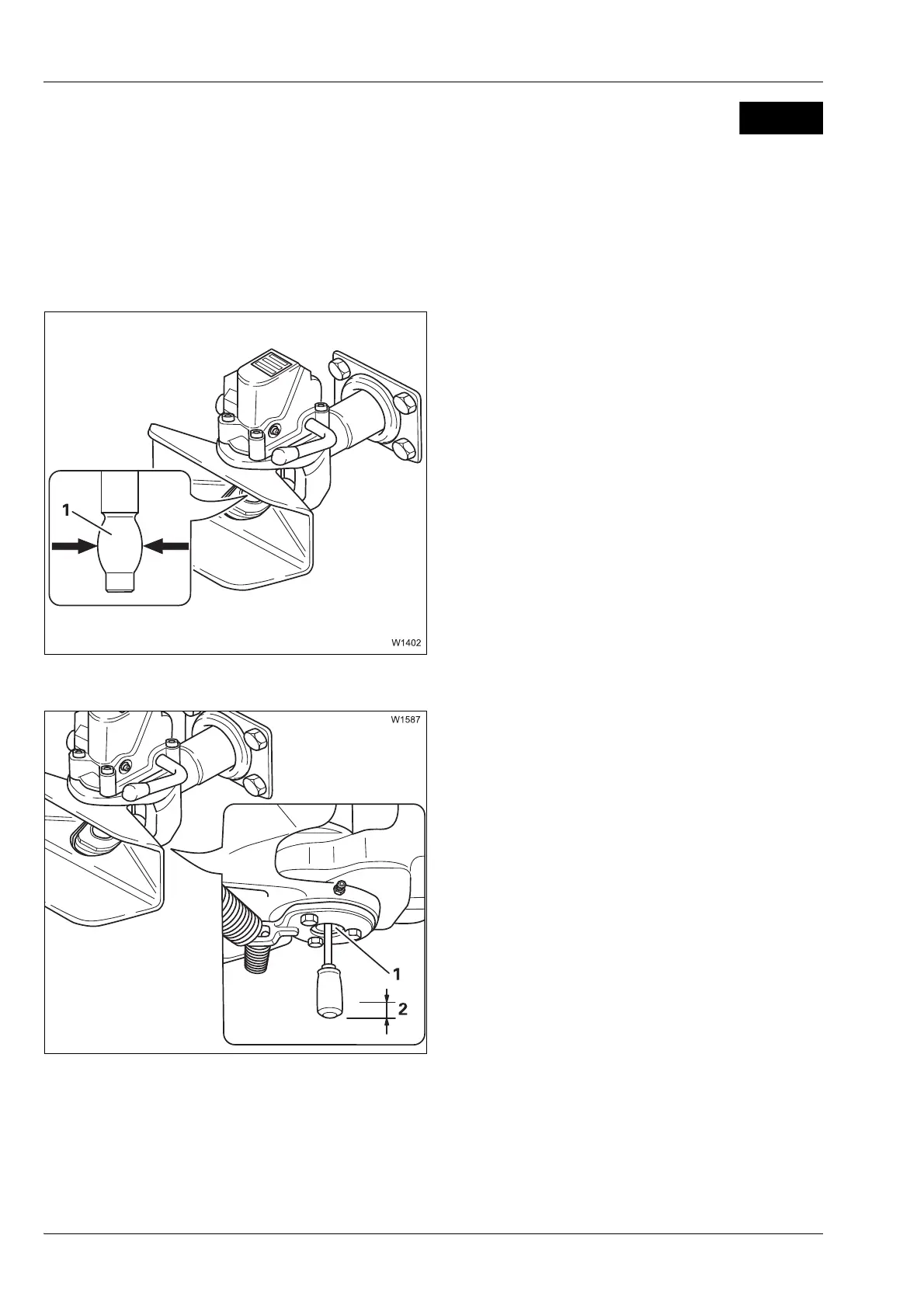

• Check the wear on the cotter pin (1). The
diameter of the crowned section (arrows)
must not be less than the following values:
If the dimension is smaller than the above
mentioned dimension then have the coupling
pin replaced by
Manitowoc Crane Care or an au-
thorised GROVE dealer or your qualified repair
crew.
• Also check the cotter pin for the correct
vertical play. Use a screwdriver to press the
pin (1) upwards. The vertical play (2) of the
pin must not exceed 4 mm (0.15 in).
Model series 400: 36.5 mm (1.44 in)
Model series 700: 46.0 mm (1.81 in)
