Maintenance work on the carrier
7.8 Axle lines
16.11.2018
Maintenance manual 3 302 756 en 7 - 59
GMK6400

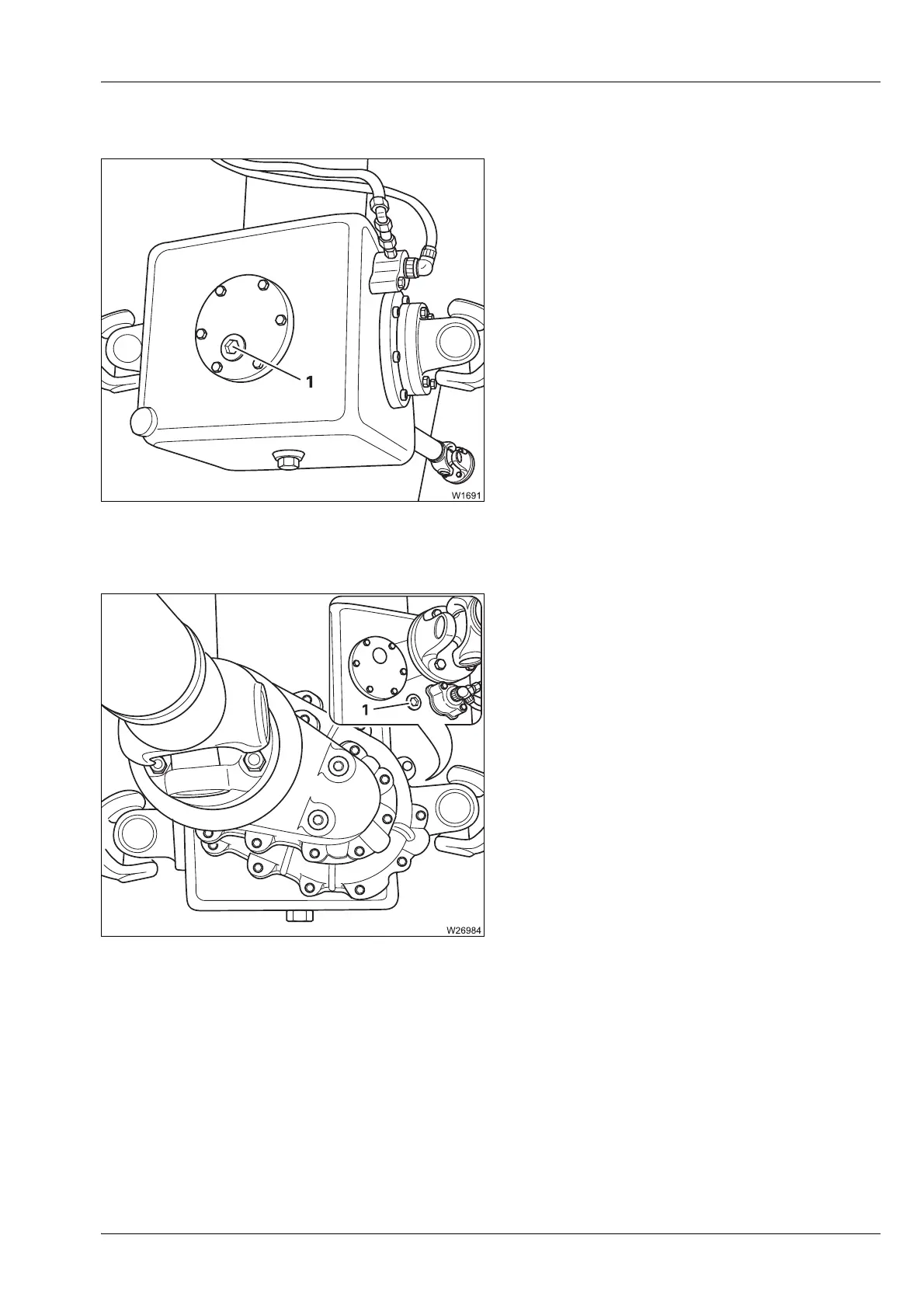

1st axle line
• Unscrew the screw (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up the oil; à p. 7 - 62.
2nd axle line
• Unscrew the screw (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up the oil; à p. 7 - 62.
