Maintenance work on the carrier
7.14 Hydraulic system
16.11.2018
Maintenance manual 3 302 756 en 7 - 105
GMK6400
Changing
filters
3 and 4

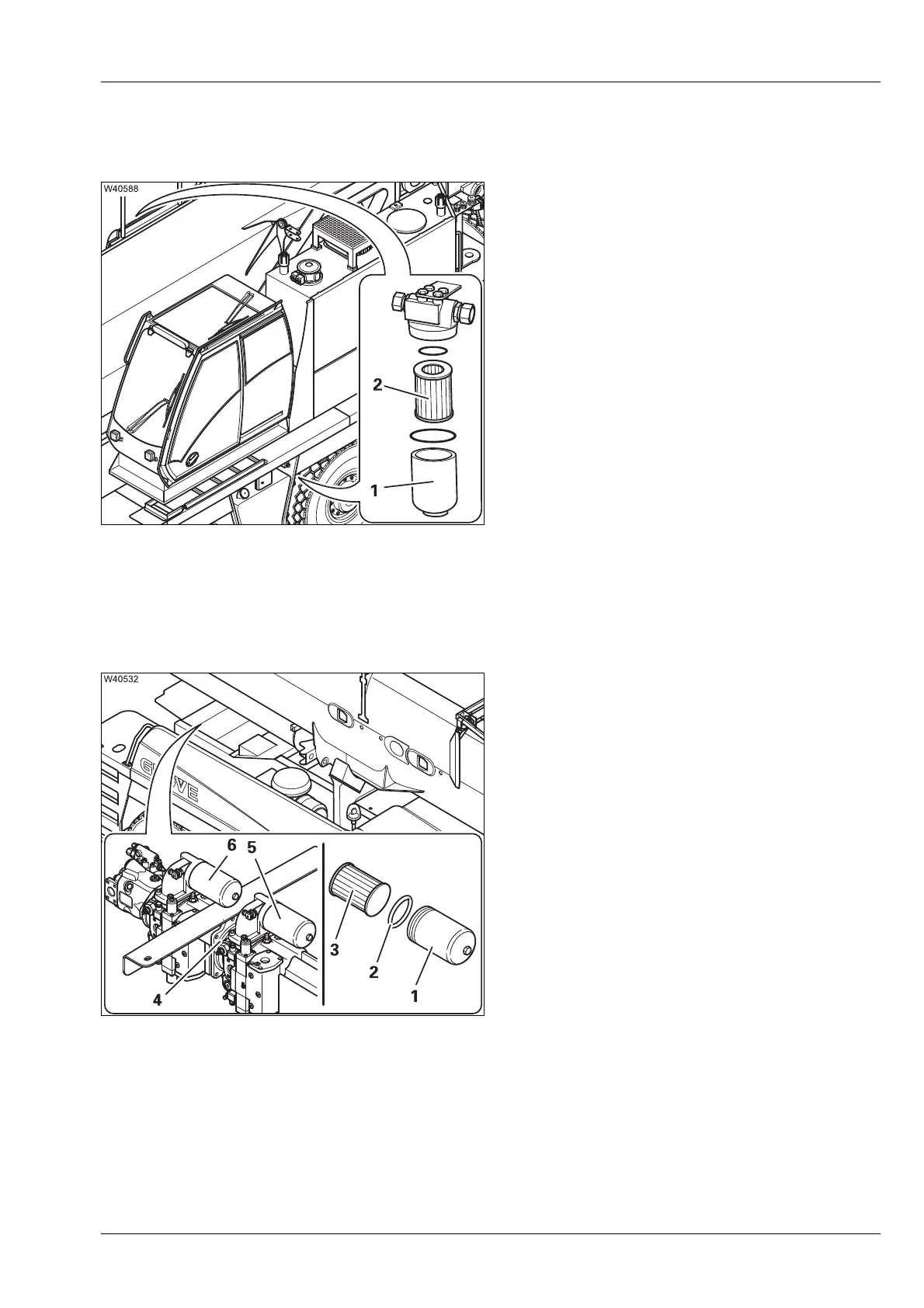

Filter 3 is installed on the left side and filter 4 is on the right side.
• Place a receptacle underneath the filter.
• Remove the housing (1).
• Place the filter in a receptacle.
• Change the filter (2).
• If necessary, replace any defective parts
(repair set).
• Fill the housing with clean oil.
• Put the housing on and tighten it.
• Change the filter on the opposite side in the
same way.
Changing
filters
5 and 6
The filters (5) and (6) are located on the pump combination (4).
• Place a receptacle under the filter (1).
• Remove the housing (1).
• Change the filters (3).
• Replace the O-rings (2).
• Fit the housing on and tighten it – torque
45
Nm (33 ft lbf).
