Maintenance work on the superstructure
8.7 Hydraulic system
16.11.2018
Maintenance manual 3 302 756 en 8 - 55
GMK6400
Changing oil
filter
2

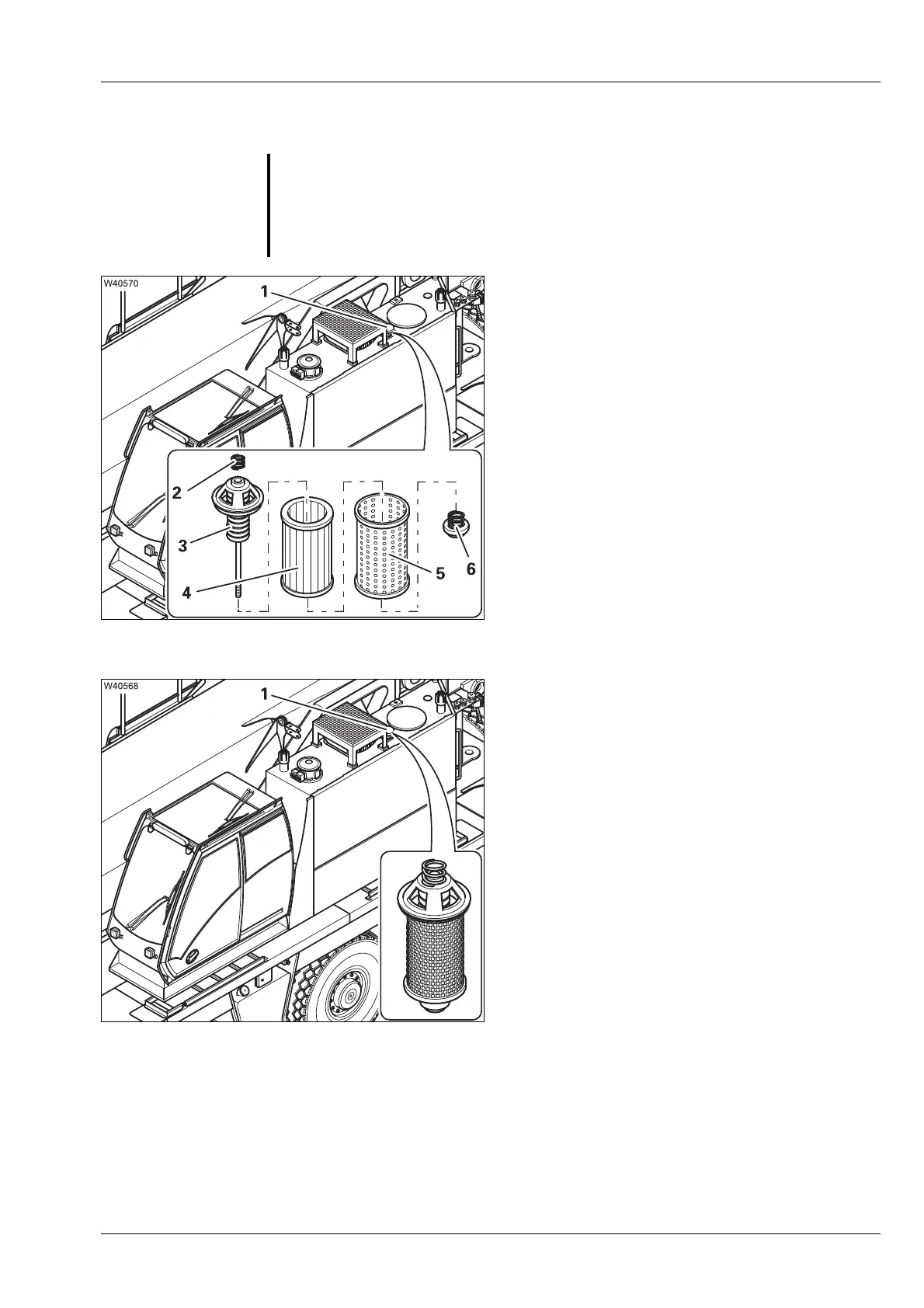

• Remove the cap (1) and pull out the filter.
• Place the filter in a receptacle.
• Remove the spring (2).
• Remove the nuts (6).
• Remove the magnetic rod (3) and filter (4)
from the filter cage (5).
• Clean the magnetic rod (3) and filter
cage
(5).
• Insert a new filter (4) into the filter cage (5).
• Replace any damaged parts, where
necessary.
• Replace the gaskets (packing set) if
necessary.
• Assemble the filter and insert it.
• Attach the lid (1).
s
O
Risk of environmental damage due to leaking consumables!
Always let consumables drain into suitable receptacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
