block. Connect the Port MicroCommander Actuator eight (8)
conductor cable to the "Engine 2" terminal block inside the
Distribution Box (see Figure 24). Connect per the color code
marked on the terminal block.
The following cables are Dealer supplied;
• DC Power Cable (Two [2] Conductor Power Cable)
• Engine Stop Cables (Two [2] Conductor Start Interlock
Cable)
• Distribution Box to Actuators (Eight [8] Conductor,
Pc.No. 350)
Cable grips are provided with the Distribution Box. These are to
be used with the Dealer supplied cables for making penetrations
into the Distribution Box.
Hand Held
Remote Control
Power
Starboard
Actuator
Port
Actuator
FUSE
TO BATTERY
12/24/32 VDC
BLUE GREEN YELLOW ORANGE RED BROWN BLACK
BLUE
GREEN
YELLOW
WHITE
RED
BROWN
BLACK
BLUE GREEN YELLOW ORANGE RED BROWN BLACK
PINK
GREY
VIOLET
SHIELD
STBD
STOP
PORT
STOP
N.O.
N.C.
COM
N.O.
N.C.
COM
+
_
0668

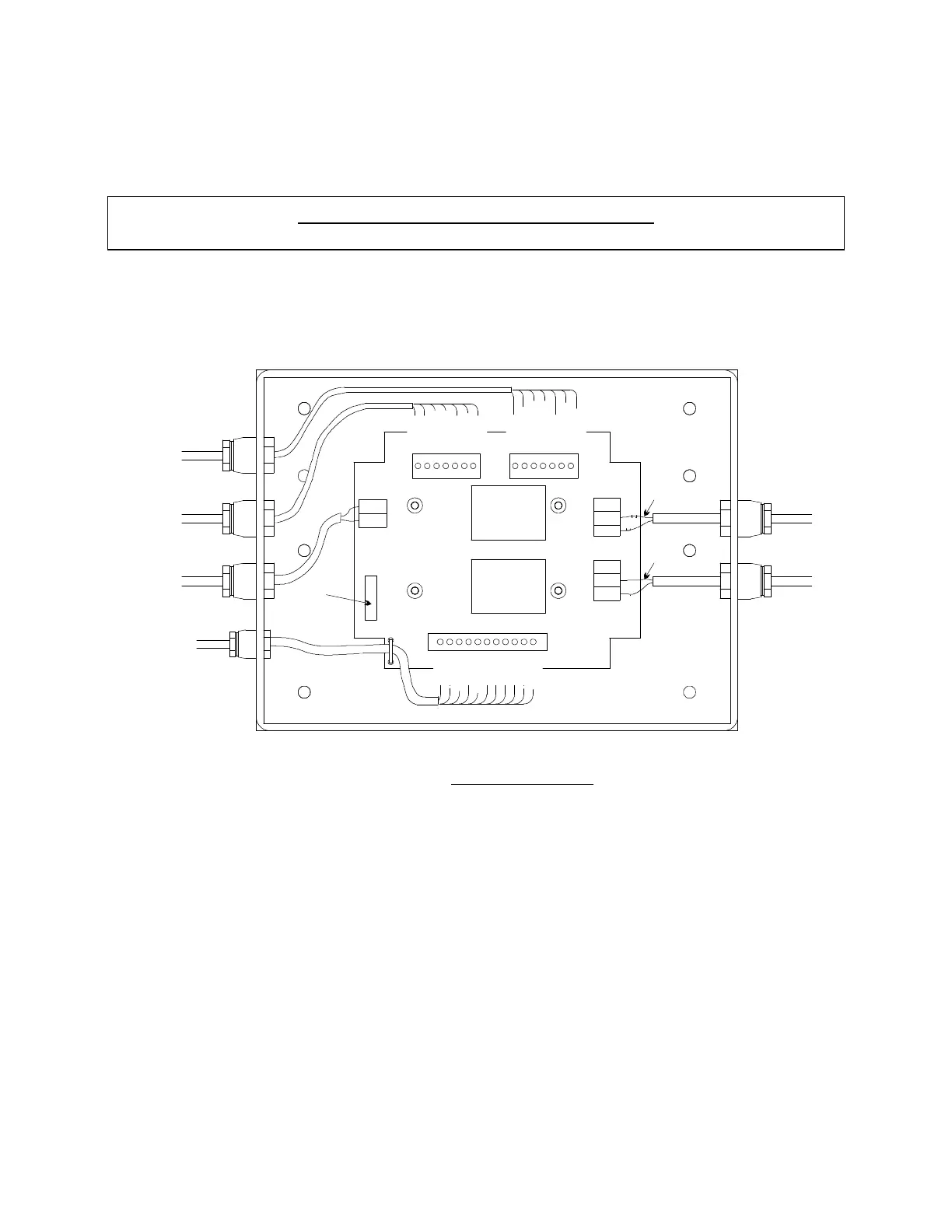

Figure 24 – Distribution Box
