102 Chapter 9: Matrox 4Sight hardware reference

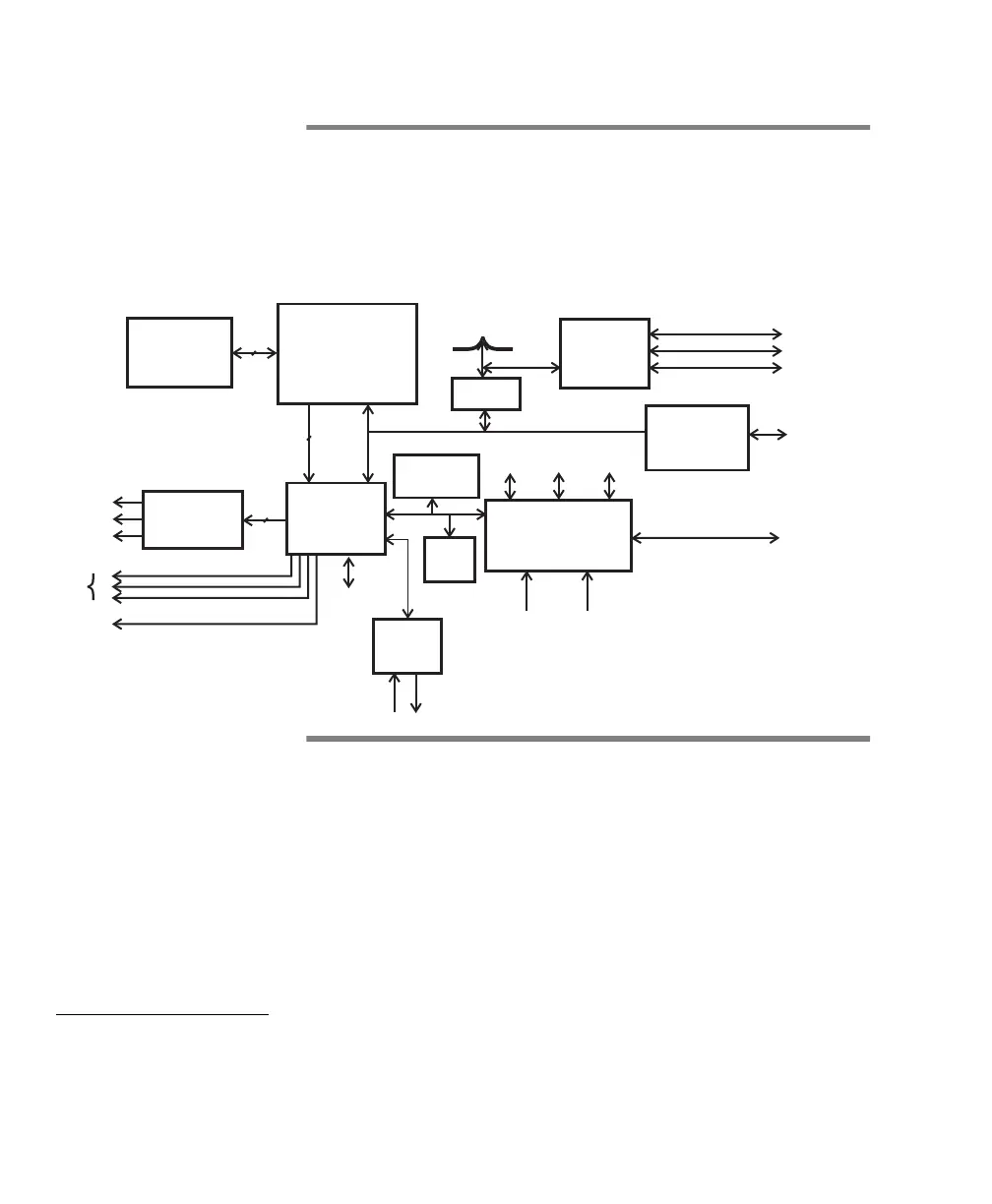

Matrox 4Sight motherboard block diagram
The Matrox 4Sight EBX motherboard integrates processing,
display, storage, networking, IEEE 1394 capability, and I/O.
EBX is a standard form factor (8” x 5¾”) with a small footprint.
Processing
The Matrox 4Sight motherboard uses a National
Semiconductor
®
Geode
™
GXLV x86-compatible processor. The
processor includes a CPU, memory controller, display
controller, and PCI controller. The processor runs at 266 MHz
with a 64-bit external memory interface operating at 76 MHz.
The processor’s companion chip provides support for
non-destructive overlay, stereo audio, and IDE connection.
External memory External memory is provided via a 168-pin DIMM slot which
supports 32, 64 (default), and 128 Mbyte SDRAM modules. This
memory is shared between the CPU and display controller.
32-128 MB
DIMM
266 Mhz
x86 Processor
with MMX
Processor
Companion
Chip
256 KB
Flash
BIOS
NTSC/PAL/RGB
Video encoder
I/O
Controller
VGA
IDE
interface* **
,
DiskOnChip
(optional)
2-144 MB
Keyboard
LAN
IEEE 1394
Ports
(3)
Discrete
Aux. I/O
(20)
ISA Bus
RorY
GorC
B or CVBS
16
18
32-bit/33 MHz PCI BUS
64
Mouse or
Pointing
Device
Flat Panel*
10/100BaseT
Ethernet
Controller
IEEE 1394
Serial Bus
Controller
*Accessible via motherboard only
**ATA (44) connects via IDE interface
Floppy*
Parallel
Port
R
G
B
PC/104-Plus
Expansion
TM
PCI-to-PCI
Bridge
Serial
Ports
(2)
R
Audio
Codec
