Overview 97
Custom power supply

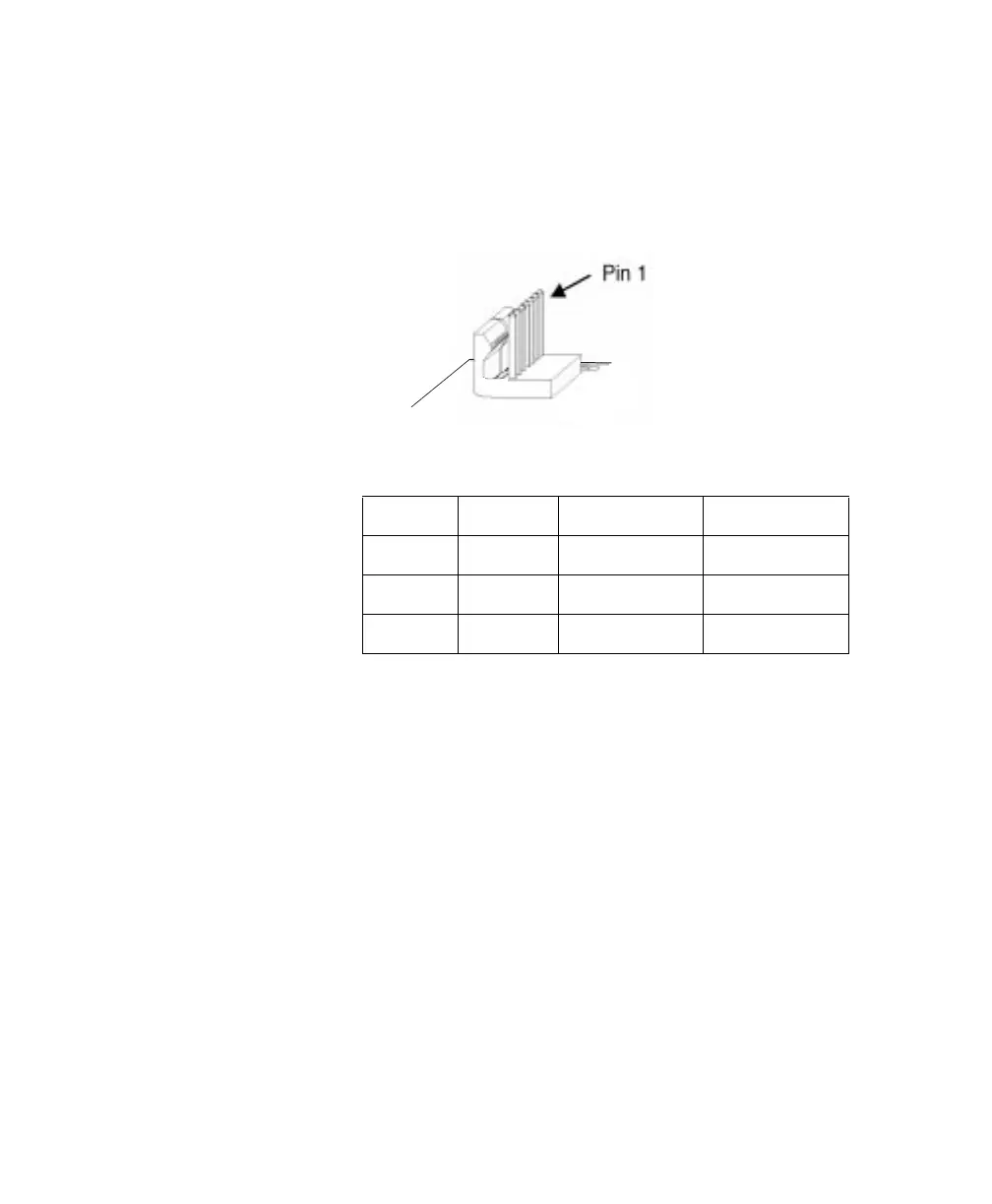

The power connector on the stand-alone Matrox 4Sight
motherboard is a 7-pin locking connector, with pin 1 physically
located closest to a corner of the motherboard.
Voltage requirements for each pin are given below.
The maximum current capacity is 7 A per pin.
Pins 2, 3, and 6 are ground.
Note that the standalone motherboard has a different power
input connector than the integrated version. Furthermore, the
motherboard in the standalone unit has neither an
auto-resettable fuse, nor a power switch.
Custom fan
You can use any fan that provides at least 200 lfm of air flow.
Supply Pin(s) Max. voltage Min. voltage
12 V 4 12.6 V 11.4 V
5 V 1, 7 5.25 V 4.75 V
3.3 V 5 3.45 V 3.15 V
