PC/104-Plus
PC/104-Plus is a standard stackable form factor for the ISA and
PCI busses. Matrox 4Sight provides access to a Matrox
Meteor-II frame grabber for PC/104-Plus and 2 other
third-party PC/104-Plus (PCI and ISA bus support) and PC/104
(ISA only bus support) boards. The Matrox 4Sight chassis
provides room for three PC/104-Plus boards in total.
Chassis
The Matrox 4Sight chassis encloses the Matrox 4Sight
motherboard, up to three PC/104-Plus
boards, an optional hard
drive, and fan. Mounting points on the chassis allow the unit
to be secured to other equipment.

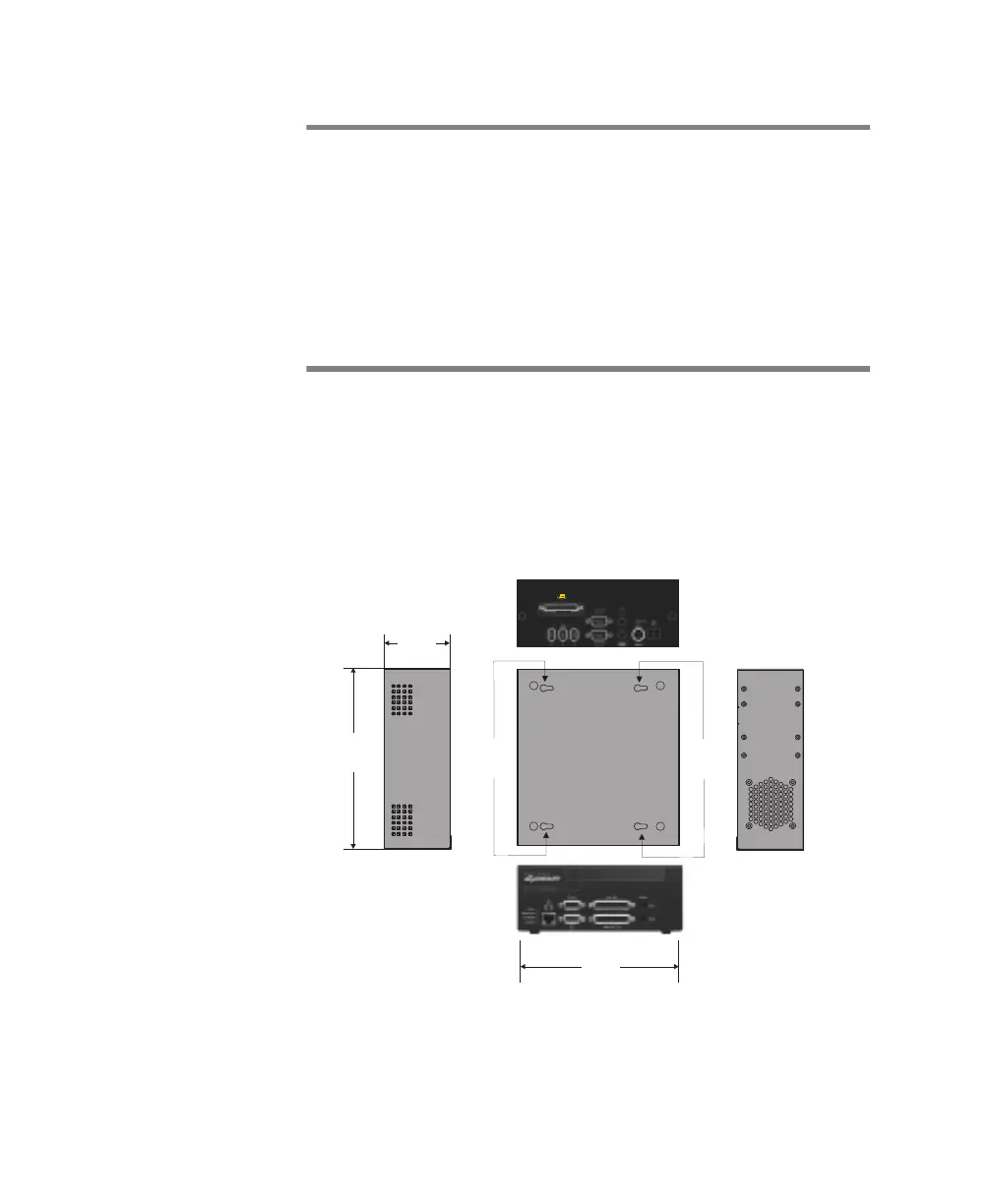

8.200
20.828 cm
“
2.952
7.498 cm
“
Chassis
Mounting
Points
Chassis
Mounting
Points
Underside
7.250 “
18.415 cm
Front
Back
