Matrox 4Sight - VGA Output Connector

Pin-outs of front panel connectors 173

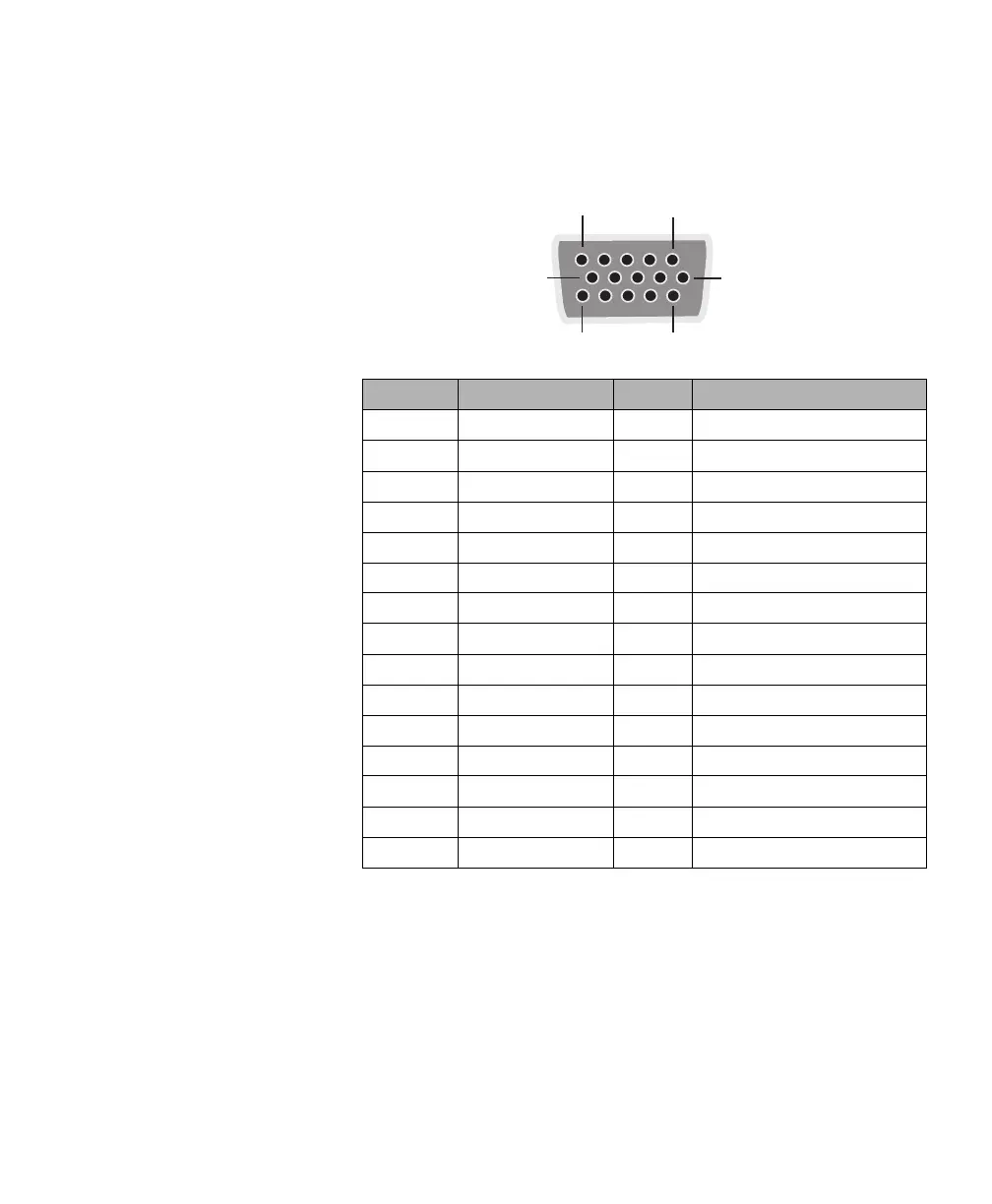

VGA output connector
The VGA output connector is a 15-pin, D-SUB female connector.
Pin Signal I/O Description
1 RED O
Red
2 GREEN O
Green
3BLUEO
Blue
4NC-
Not connected
5GND-
Ground
6GND-
Ground
7GND-
Ground
8GND-
Ground
9+5VO
+5 VDC
10 GND -
Ground
11 NC -
Not connected
12 SDA I/O
DDC Serial Data Line
13 HSYNC O
Horizontal sync
14 VSYNC O
Vertical sync
15 SCL I/O
DDC Data Clock Line
1
5
15
11
10
6
