Pin-outs of internal connectors 187

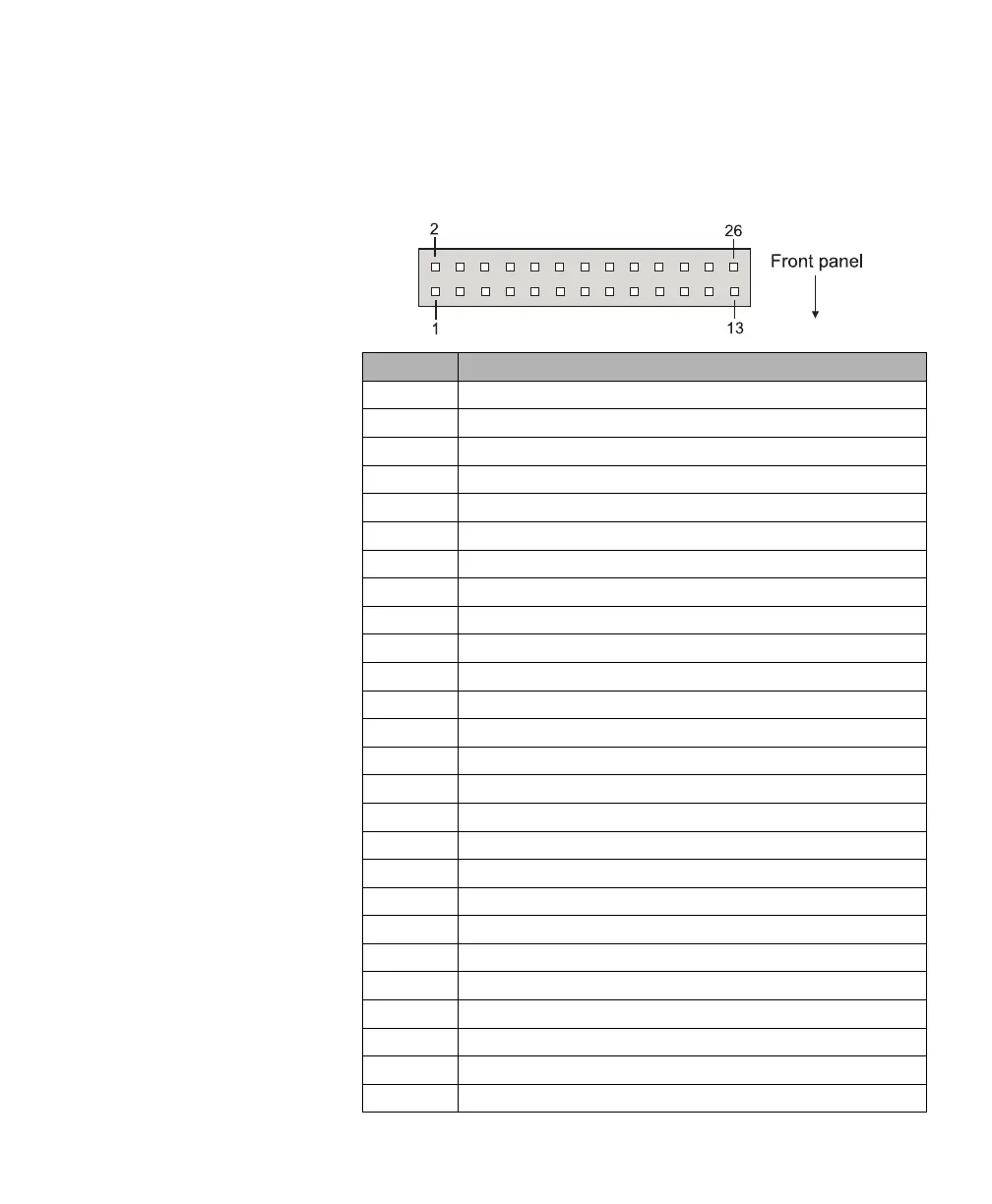

Internal connector to the auxiliary I/Os
The internal connector to the auxiliary I/Os is a 26-pin, IDC
male connector.
Pin Signal
1
GND
2
GND
3
LVTTL I/O 0
4
LVTTL I/O 1
5
LVTTL I/O 2
6
LVTTL I/O 3
7
LVTTL I/O 4
8
LVTTL I/O 5
9
LVTTL I/O 6
10
LVTTL I/O 7
11
LVTTL I/O 8
12
LVTTL I/O 9
13
GND
14
GND
15
LVTTL I/O 10
16
LVTTL I/O 11
17
LVTTL I/O 12
18
LVTTL I/O 13
19
LVTTL I/O 14
20
LVTTL I/O 15
21
LVTTL I/O 16
22
LVTTL I/O 17
23
LVTTL I/O 18
24
LVTTL I/O 19
25
GND
26
GND
