Matrox 4Sight - Flat Panel Backlight Connector

186 Appendix D: Technical reference

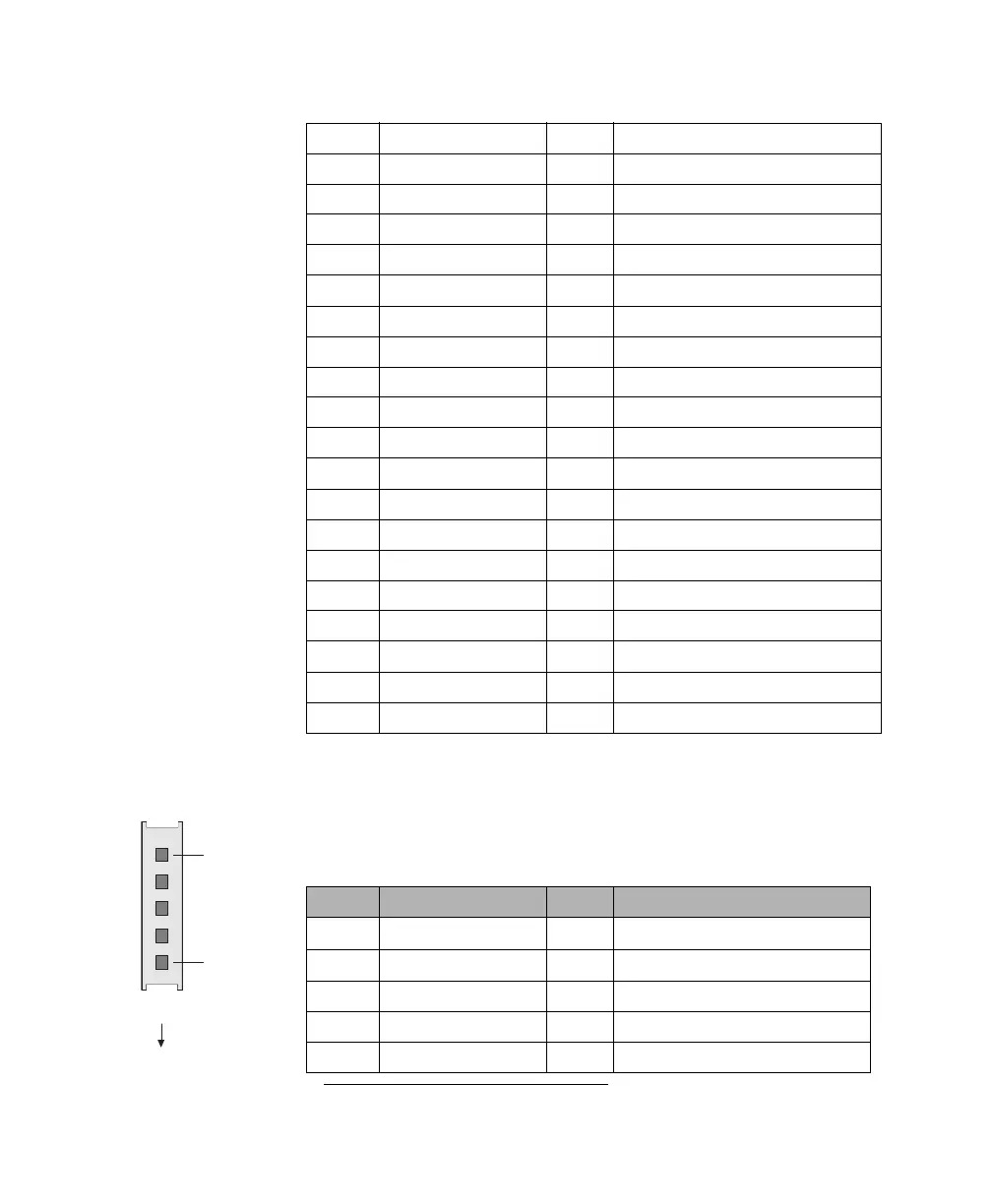

Flat panel backlight connector
The flat panel backlight connector is a 5-pin, locking
connector
1*
.
22 GND -
Ground
23 G3 O
Green data
24 G4 O
Green data
25 G5 O
Green data (MSB)
26 GND -
Ground
27 GND -
Ground
28 GND -
Ground
29 B0 O
Blue data (LSB)
30 B1 O
Blue data
31 B2 O
Blue data
32 GND -
Ground
33 B3 O
Blue data
34 B4 O
Blue data
35 B5 O
Blue data
36 GND -
Ground
37 FP_DISP_ENA O
Data enable (high)
38 MVA O
Best viewing (high)
39 VCC_LCD O
Power supply, 3.3 V
40 VCC_LCD O
Power supply, 3.3 V
41 DPS O
Scan direction select (open)
Pin Signal I/O Description
1V
DD
O
Power supply, 12 V
2V
DD
O
Power supply, 12 V
3GND-
Ground
4GND-
Ground
5BRTHL-
Luminance select (open)
1. Note that the V
DD
signal is protected with a 0.5A auto-resettable
fuse.
1
5
Front panel
*
