172 Appendix D: Technical reference

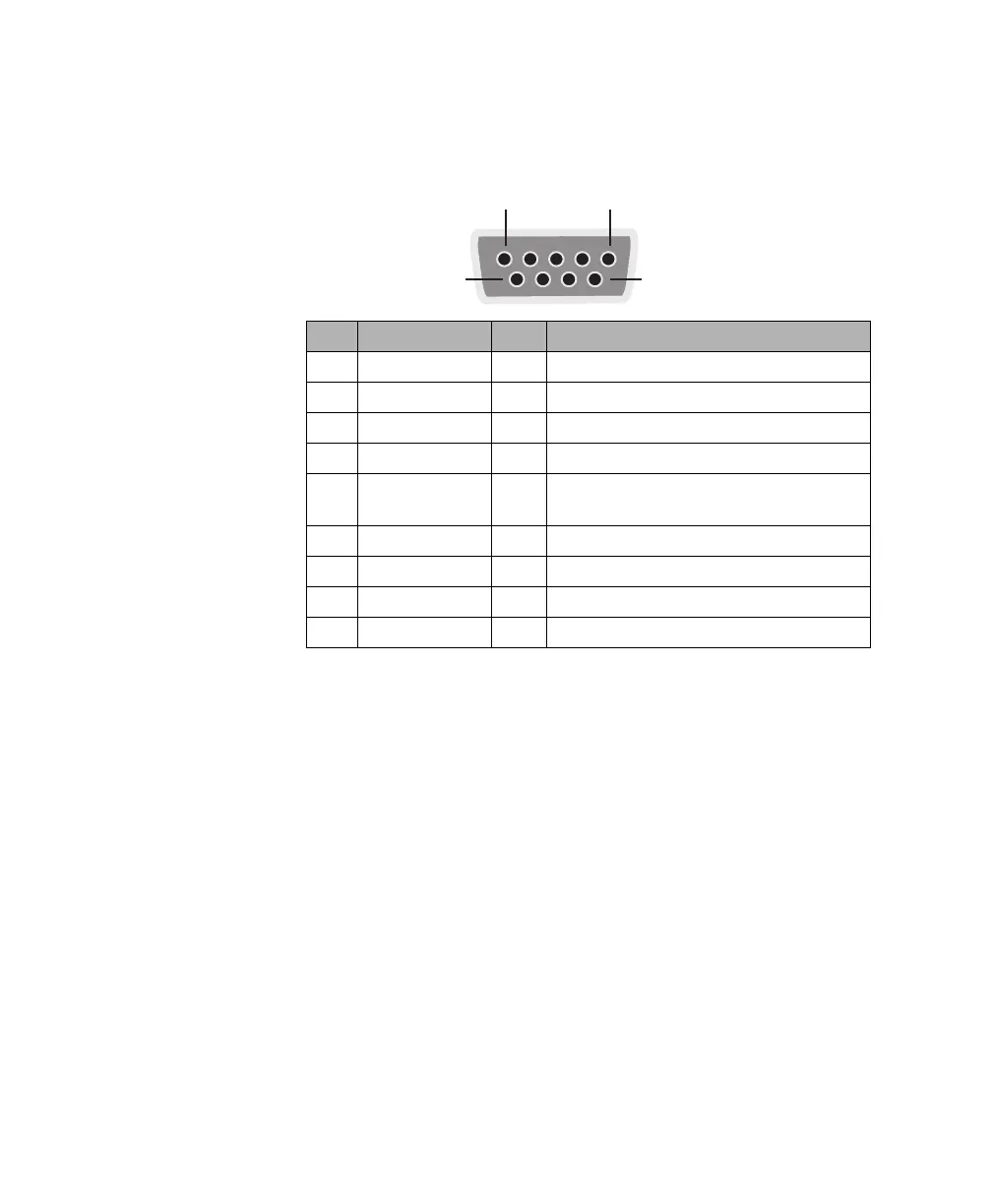

TV output connector
The TV output connector is a 9-pin, DB female connector.
The DB9M-TO-4BNC cable can be purchased from Matrox or
from Virgo Trading Co. Ltd.
Pin Signal I/O Description
1NC -
Not connected
2GND -
Ground
3 CSYNC O
TTL Composite Sync
4GND -
Ground
5 BLUE_COMP O
Encoded Video Output: Blue or
CVBS
6GND -
Ground
7 GREEN_C O
Encoded Video Output: Green or C
8GND -
Ground
9 RED_Y O
Encoded Video Output: Red or Y
1
5
9
6
