Matrox Meteor-II MJPEG module
■ Available as an add-on to Matrox Meteor-II /Standard or
Matrox Meteor-II /Multi-Channel for PC/104-Plus
™
.
■ Performs lossy MJPEG/JPEG compression on monochrome
or color video, lossless MJPEG/JPEG compression on
monochrome video.
■ Maximum conversion rate of 30 Mpixels/sec.
■ 64 Kbyte SRAM.
Pin-outs of front panel connectors

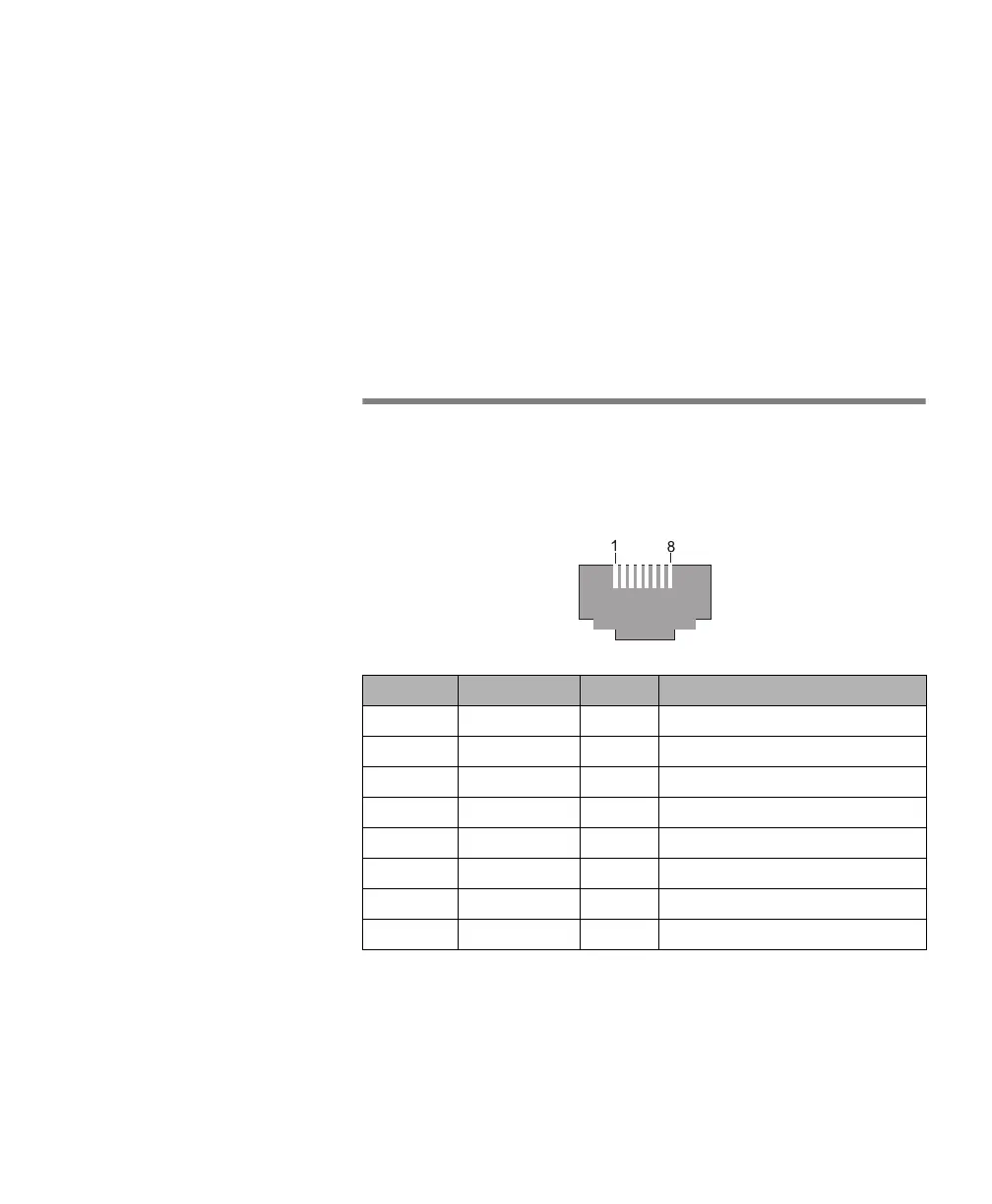

Ethernet connector
The ethernet connector is an 8-pin, RJ45 male connector.
Pin Signal I/O Description
1 TD+ O
Transmit Data+
2 TD- O
Transmit Data-
3 RD+ I
Receive Data+
4NC-
Not connected
5NC-
Not connected
6 RD- I
Receive Data-
7NC-
Not connected
8NC-
Not connected
