Matrox 4Sight - Flat Panel Interface Connector

Pin-outs of internal connectors 185
Flat panel interface connector

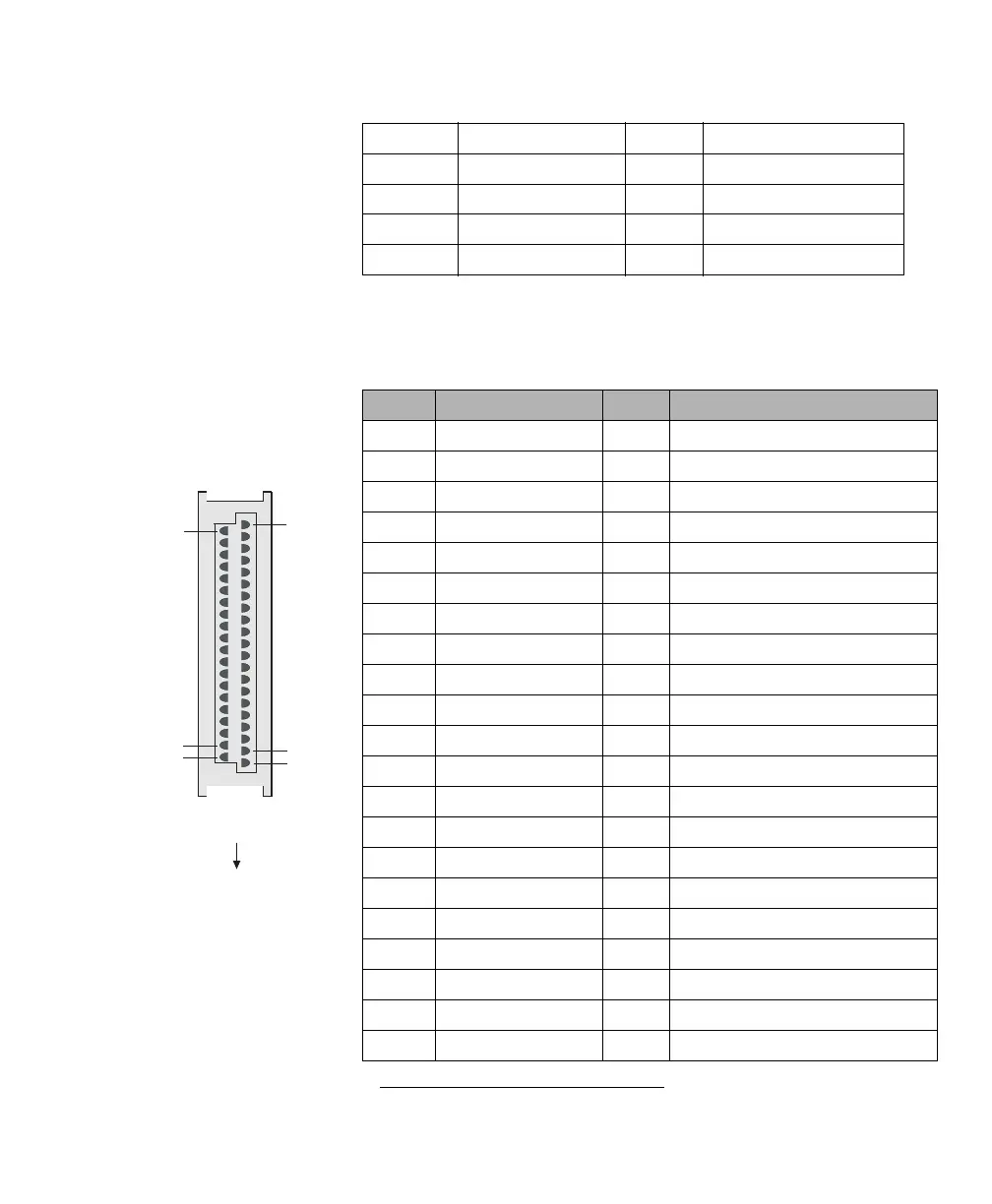

The flat panel interface connector is a 41-pin, dual-header
connector
1*
.
40 GND -
Ground
41 +5VL O
+5 VDC (Logic)
42 +5VM O
+5 VDC (Motor)
43 GND -
Ground
44 /TYPE O
Type (0=ATA)
Pin Signal I/O Description
1GND-
Ground
2 FP_CLK O
Dot clock
3GND-
Ground
4FP_HSYNCO
Horizontal sync
5 FP_VSYNC O
Vertical sync
6GND-
Ground
7GND-
Ground
8GND-
Ground
9R0O
Red data (LSB)
10 R1 O
Red data
11 R2 O
Red data
12 GND -
Ground
13 R3 O
Red data
14 R4 O
Red data
15 R5 O
Red data (MSB)
16 GND -
Ground
17 GND -
Ground
18 GND -
Ground
19 G0 O
Green data (LSB)
20 G1 O
Green data
21 G2 O
Green data
1. Note that the VCC_LCD signal is protected with a 0.5A
auto-resettable fuse.
1
3
41
2
4
40
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Front panel
*
