Matrox 4Sight - IEEE 1394 Connectors

Pin-outs of back panel connectors 179
IEEE 1394 connectors

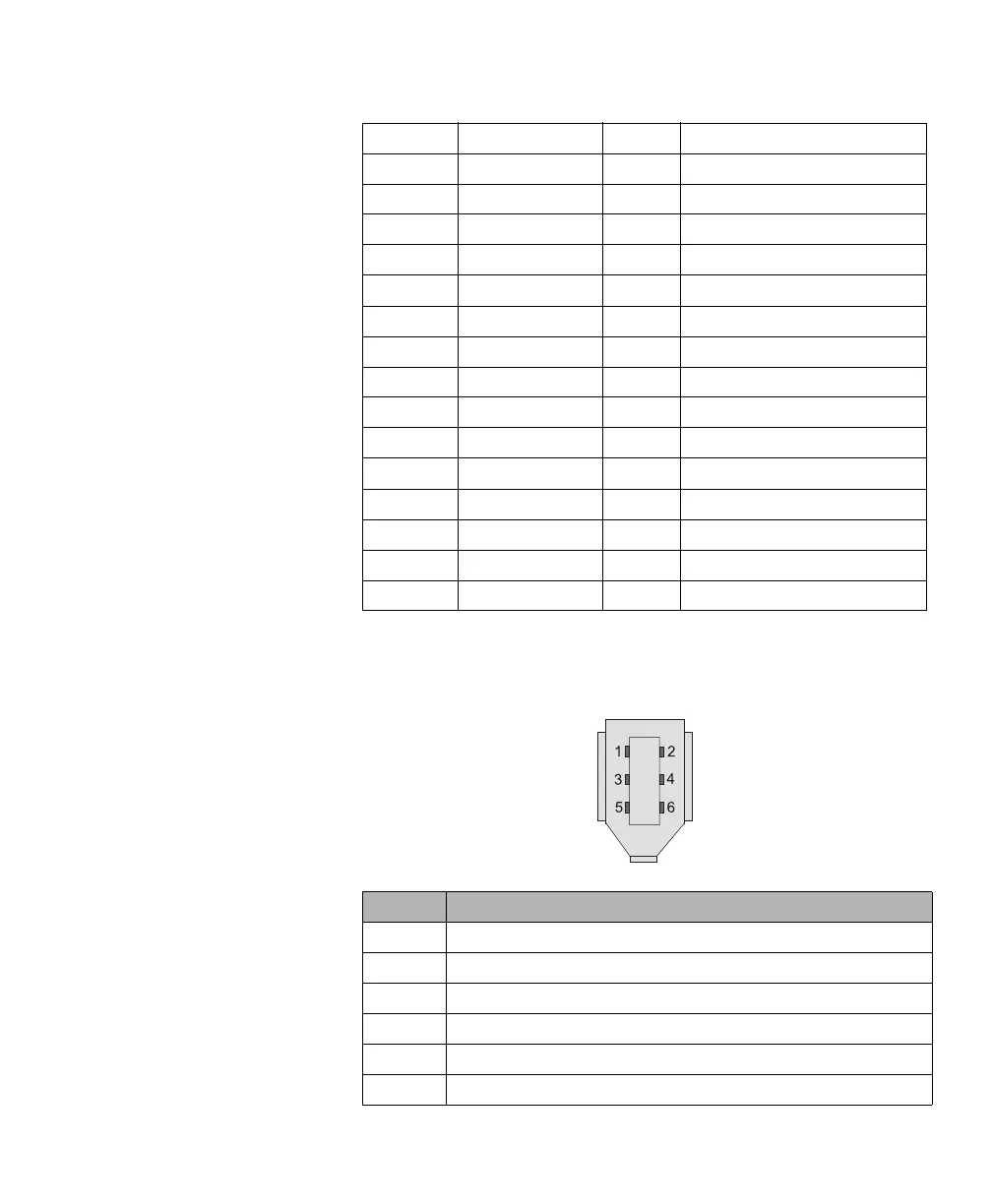

The three IEEE 1394 port connectors are identical and provide
connection to either 6-wire or 4-wire IEEE 1394 cables.
10 /ACK I
Acknowledge
11 BUSY I
Busy
12 PE I
Paper End
13 SEL I
Select
14 /AUTOFD O
Autofeed
15 /ERROR I
Error
16 /INIT O
Initialize
17 /SELIN O
Select In
18 GND -
Ground
19 GND -
Ground
20 GND -
Ground
21 GND -
Ground
22 GND -
Ground
23 GND -
Ground
24 GND -
Ground
25 GND -
Ground
Pin Signal
1
+12V, 0.25A
2
GND
3
/TPB
4
TPB
5
/TPA
6
TPA
