Pin-outs of internal connectors 181
Pin-outs of internal connectors
Floppy disk connector

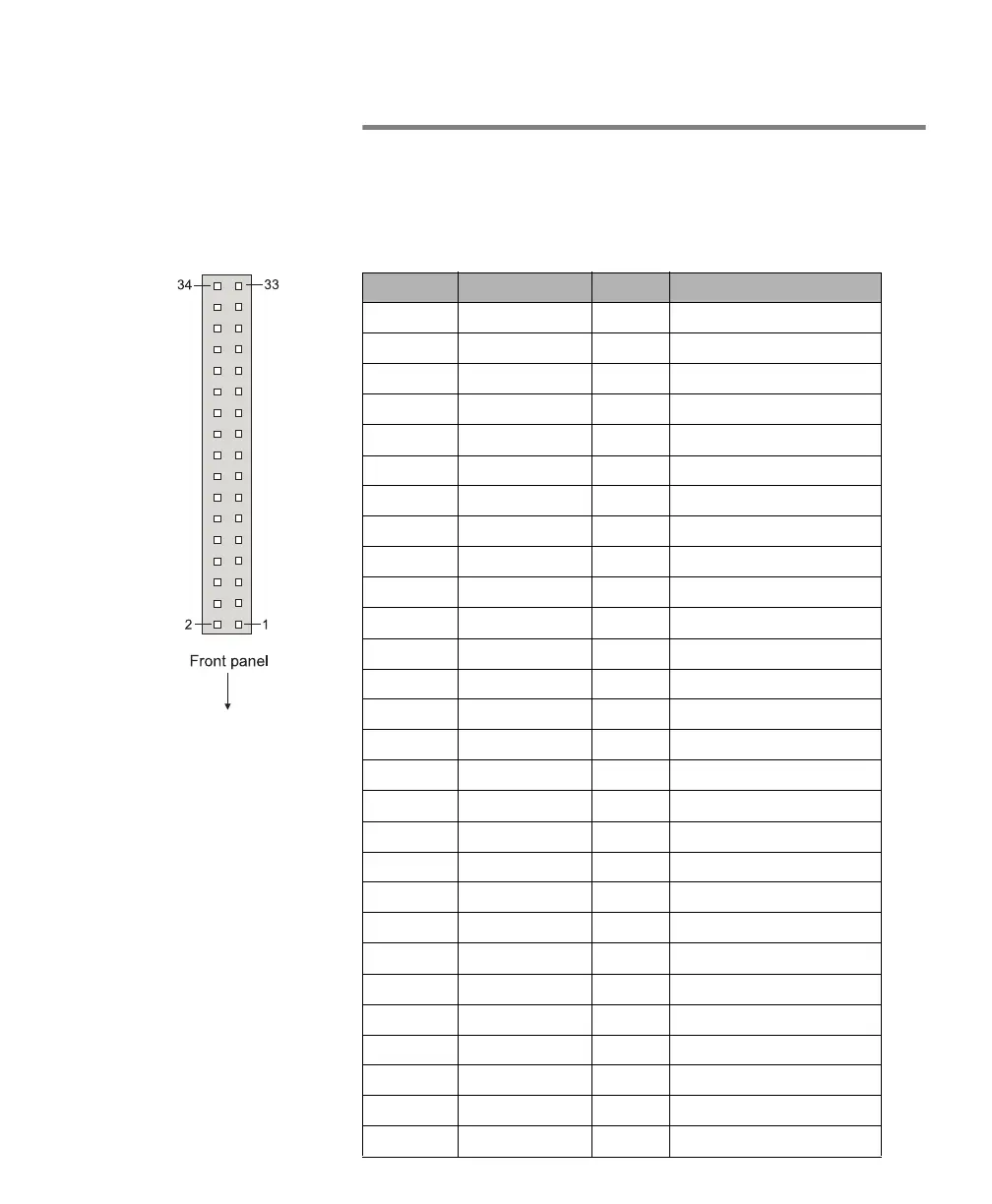

The floppy disk connector is a 34-pin, IDC male connector.
Pin Signal I/O Description
1GND-
Ground
2 /REDWC O
Density Select
3GND-
Ground
4NC-
Reserved
5GND-
Ground
6 DRATE O
Data Rate
7GND-
Ground
8 /INDEX I
Index
9GND-
Ground
10 /MOTEA O
Motor Enable A
11 GND -
Ground
12 /DRVSB O
Drive Sel B
13 GND -
Ground
14 /DRVSA O
Drive Sel A
15 GND -
Ground
16 /MOTEB O
Motor Enable B
17 GND -
Ground
18 /DIR O
Direction
19 GND -
Ground
20 /STEP O
Step
21 GND -
Ground
22 /WDATA O
Write Data
23 GND -
Ground
24 /WGATE O
Floppy Write Enable
25 GND -
Ground
26 /TRK00 I
Track 0
27 GND -
Ground
28 /WPT I
Write Protect
