BL1448GE ZP-BL16E TM1700-SERIES
51
4 CABA LOCAL

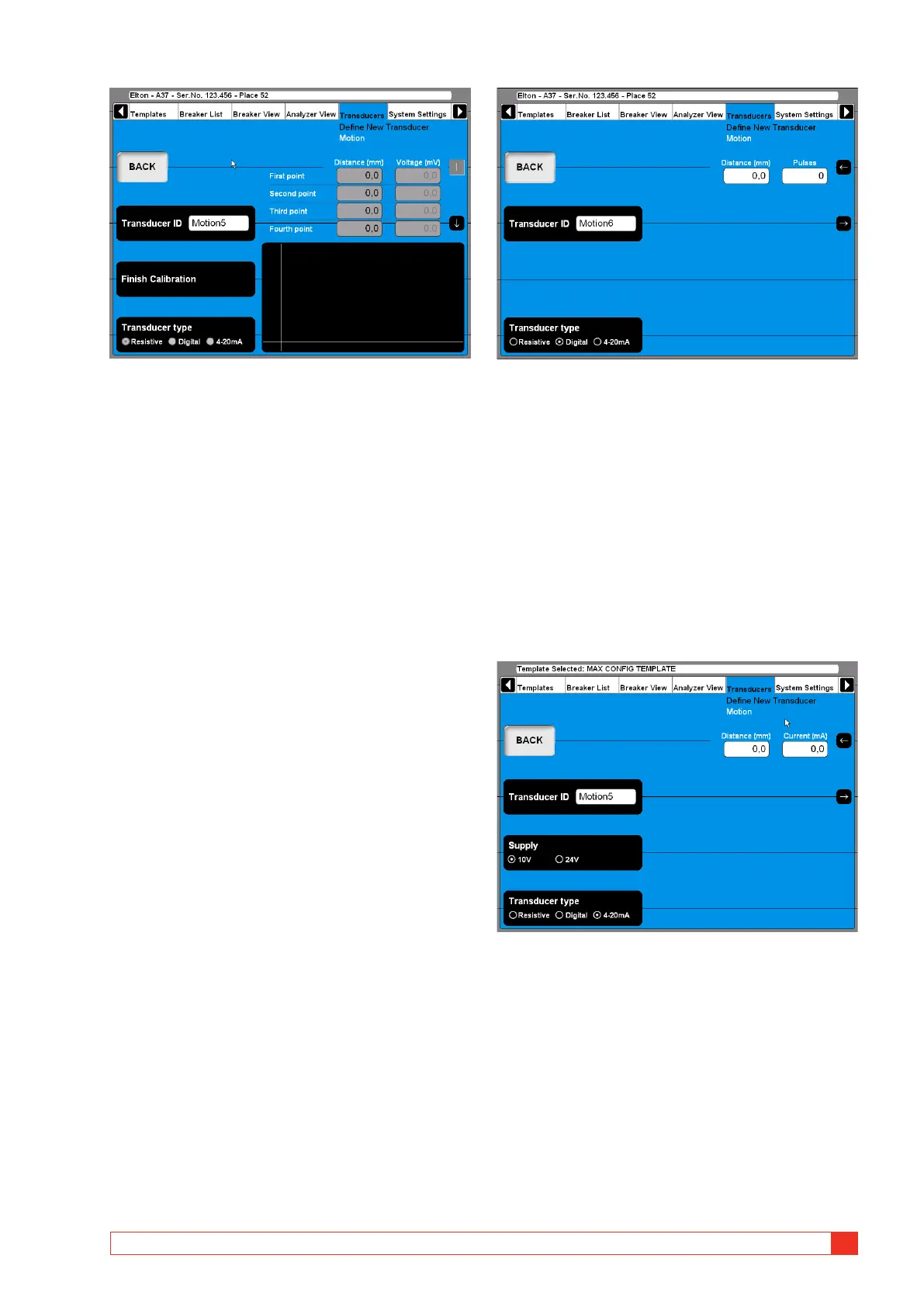

6] Now the transducers (digital reference &
resistive) should be mechanically connected
in a way that the slider of the resistive one
is following exactly the reference. Move the
transducer sliding contact to the desired posi-
tion and keep it there.
The distance/position value in the fields
shown above the graphic is displayed au-
tomatically using the data from the digital
transducer. The value in the corresponding
voltage field will follow automatically.
7] Move the cursor to the entry field for the
next position. For quick navigation between
the fields use the arrow buttons next to it.
The calibration data of each position is
stored automatically when moving the cursor
to the next field.
8] Proceed in the same way to calibrate the remain-
ing positions.
9] Type in a significant name for the transducer
into the “Transducer ID” field.
10] Press the “Finish Calibration” button.
11] Press the “BACK” button to leave this screen.
Calibrating digital motion transducers
1]
Press the “Transducer type” button repeated-
ly to select the option “Digital”. The follow-
ing screen appears.
2] Enter the calibration values in the fields
shown in the upper right corner. For quick
navigation between the fields use the arrow
buttons next to it.
3] Type in a significant name for the transducer
into the “Transducer ID” field.
4] Press the “BACK” button to leave this screen.
Calibrating 4 - 20 mA motion transducers
1]
Press the “Transducer type” button repeat-
edly to select the option “4 - 20mA”. The
following screen appears.
2] Enter the calibration values in the fields
shown in the upper right corner. For quick
navigation between the fields use the arrow
buttons next to it.
3] Press the “Supply” button to select the pow-
er supply for the transducer, “10V” or “24V”.
4] Type in a significant name for the transducer
into the “Transducer ID” field.
5] Press the “BACK” button to leave this screen.
