Meler Micron 5 - Air Drying System Components (Optional)

FOCKE MELER GLUING SOLUTIONS
9-2

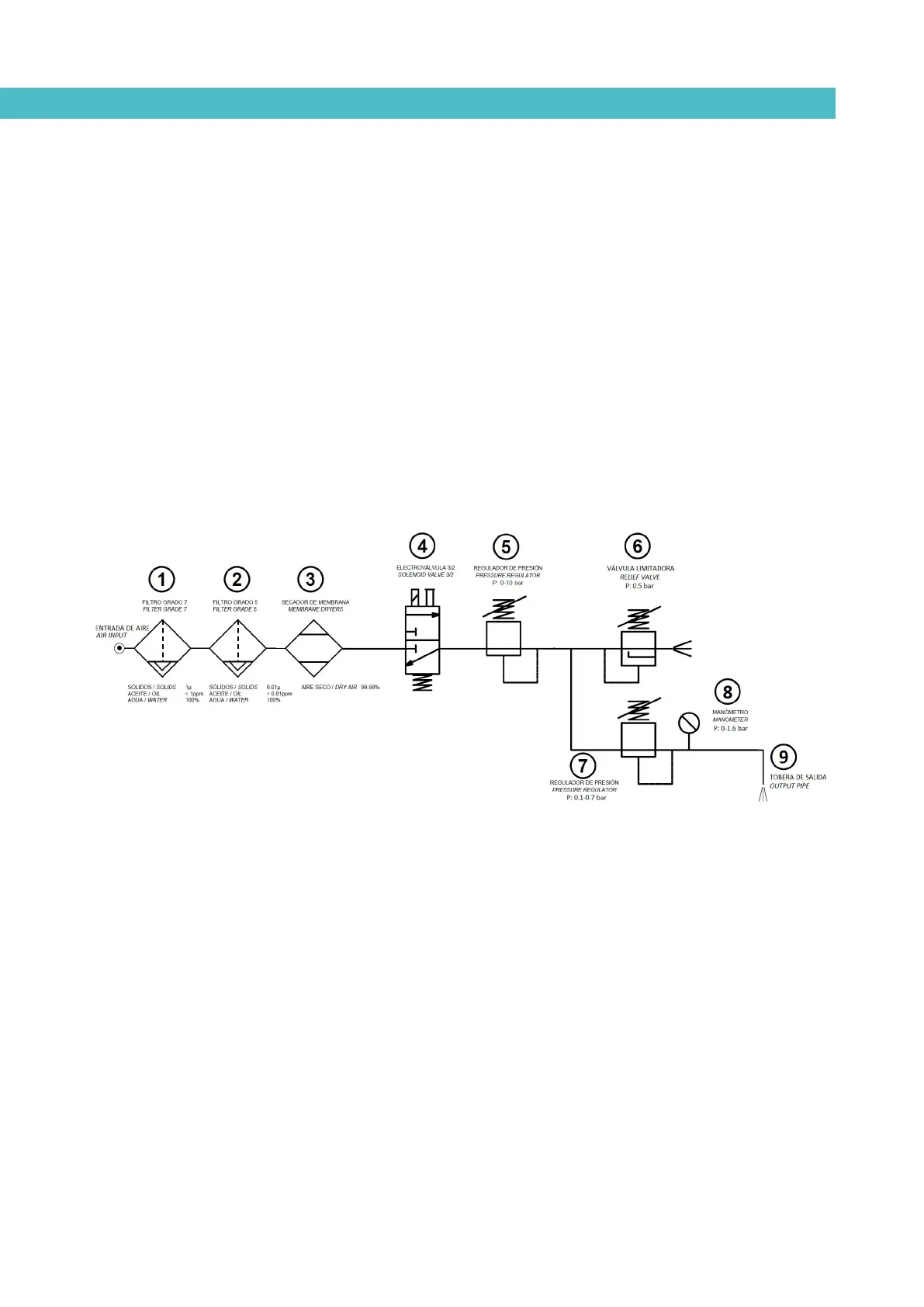

PNEUMATIC DIAGRAM
Air drying system (optional)
- 1 Filter– 1st stage, grade 7
- 2 Filter – 2nd stage, grade 5
- 3 Air dryer
- 4 3/2 solenoid valve with manual control
- 5 Pressure regulator 1-10 bar
- 6 Pneumatic relief valve 0.5 bar
- 7 Pressure regulator 0.1-0.7 bar
- 8 Pressure gauge 0-1.6 bar
- 9 Output nozzle
