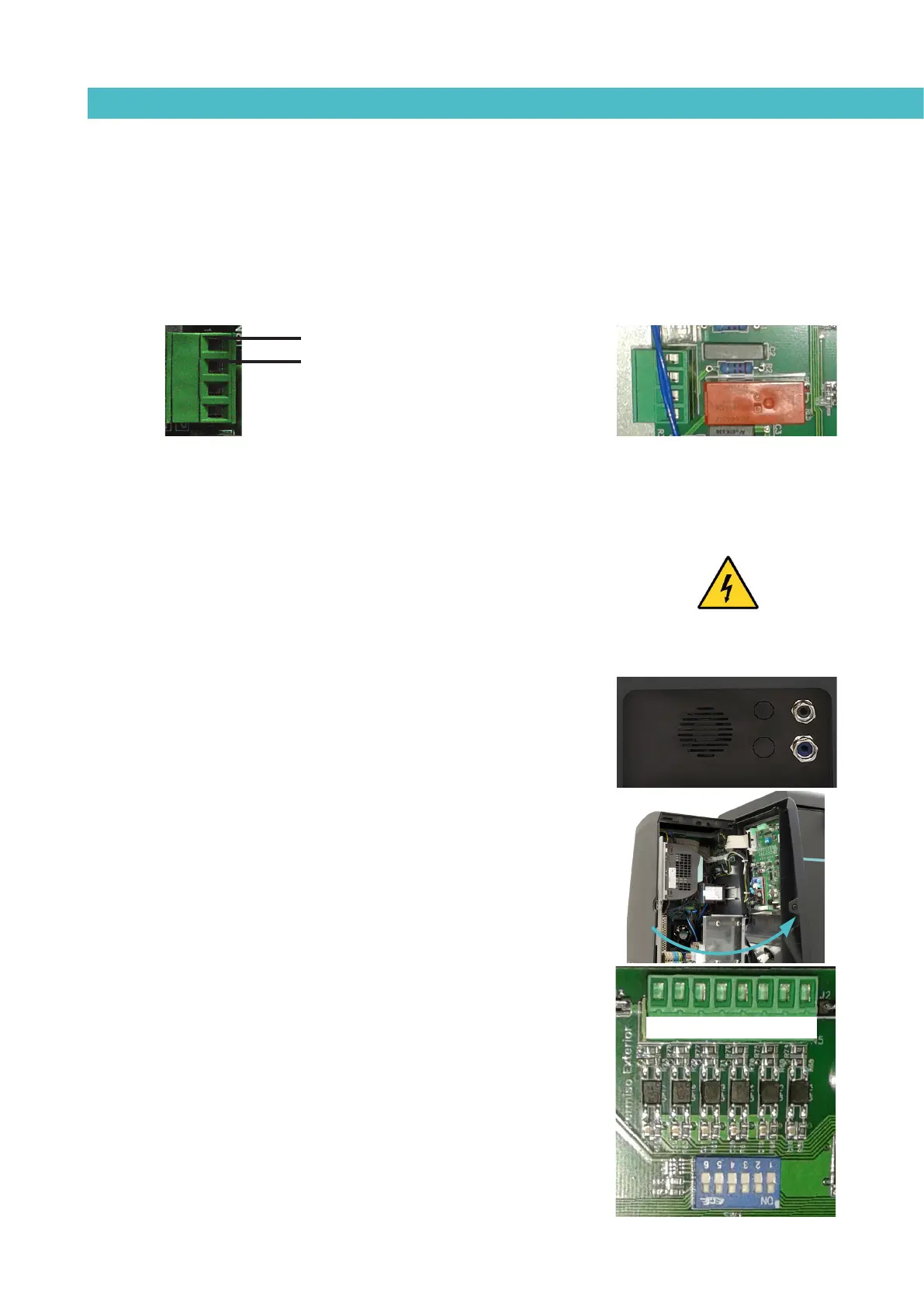

INSTALLATION
3-11
MA-5079-ENG MICRON GEAR ADHESIVE MELTER
2. Thread the power cord (max. Ø12.5mm) through the electrical wall
bushing Pg13.5 and fasten it to the inside anchor, making sure that the
cord reaches the power card connector at the position where it will be
installed (CN 1).
3. Remove the connector from the card and connect the two cable wires
to their corresponding connector terminals:
4. Reconnect the card connector.
5. Make sure that the cable is well connected and that its path through
the electrical cabinet presents no risks of snagging, being cut or any
other accidental deterioration.
Warning: It must be connected to 24 AC or DC voltage with a maximum
current of 500mA. If you connect this signal to 230V load current cannot be
less than 50mA.
Output disabled
1. If this is the only signal being connected, use a seven-wire cable no
smaller than 0.22 mm
2
.
Install an electrical wall bushing Pg13.5 next to the electrical supply
input.
2. Open the door to the electrical cabinet as far as possible. Thread the
power cord (max. Ø12.5mm) through the electrical wall bushing Pg13.5
and fasten it to the inside anchor, making sure that the cord reaches the
control card connector at the position where it will be installed (CN 5).
3. Remove the connector from the card and connect the two cable wires
to their corresponding connector terminals:
1 common (+) voltage output
2 input for disabled output 1
3 input for disabled output 2
4 input for disabled output 3
5 input for disabled output 4
6 input for disabled output 5
7 input for disabled output 6
8 without connection
1
2
1 contact NO
2 contact NO
8 7 6 5 4 3 2 1
