INSTALLATION
3-5
MA-5079-ENG MICRON GEAR ADHESIVE MELTER
Warning: Risk of electrical shock. Carelessness may cause injury or death.
Open the electric cabinet door as far as possible. Thread the power cord (max.
Ø14.5mm) through the electrical wall bushing Pg 16 and fasten it to the inside
anchor, making sure that the cord reaches the power card connector at the
position where it will be installed.
Connect each wire in the power cord to its corresponding place on the power
intake connector on the power card.
Consumption values concerning each equipment can be found in the
characteristics plate.
Pneumatic connection
If a pneumatically controlled by-pass pressure control valve is installed, the
equipment must have a compressed air supply.
Before connecting the pneumatic power to the melter, make sure the pressure
regulator is completely closed. To do this, turn the regulator handle located on
the equipment base next to the pressure gauge counterclockwise as far as it
will go.
Connect the plant air supply (max. 6 bar) to the melter intake using flexible
tubing with an outside diameter of 6 mm. The equipment is provided with a
quick coupling for this purpose.

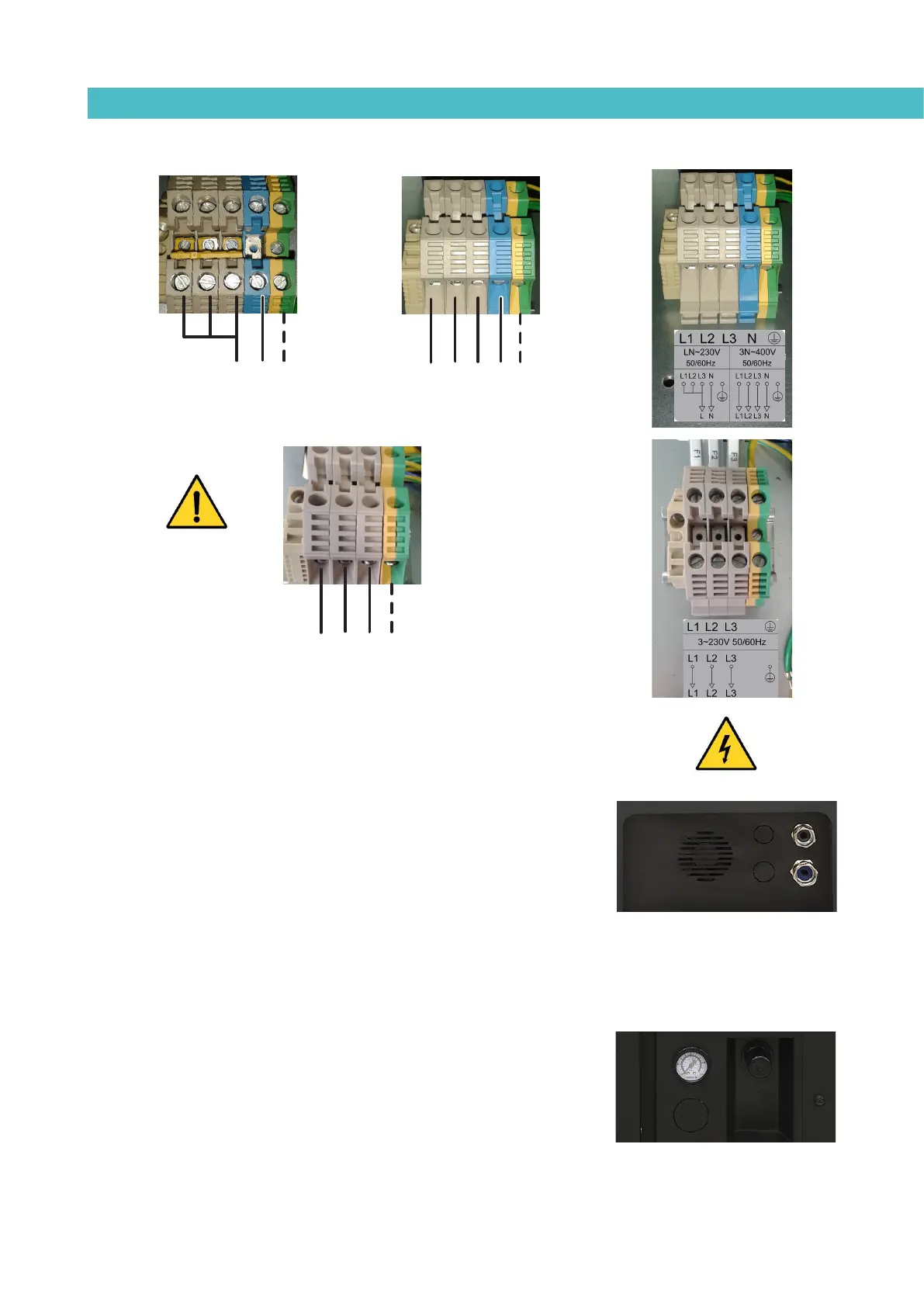

L3 N PE L1 L2 L3 N PE
LN~230V 50/60Hz + PE 3N~400V 50/60Hz + PE
L1 L2 L3 PE
3~230V 50/60Hz + PE
WITHOUT NEUTRAL
