Meler Micron 5 - C. Distributor Assembly Spare Parts

FOCKE MELER GLUING SOLUTIONS
10-6
SPARE PARTS LIST

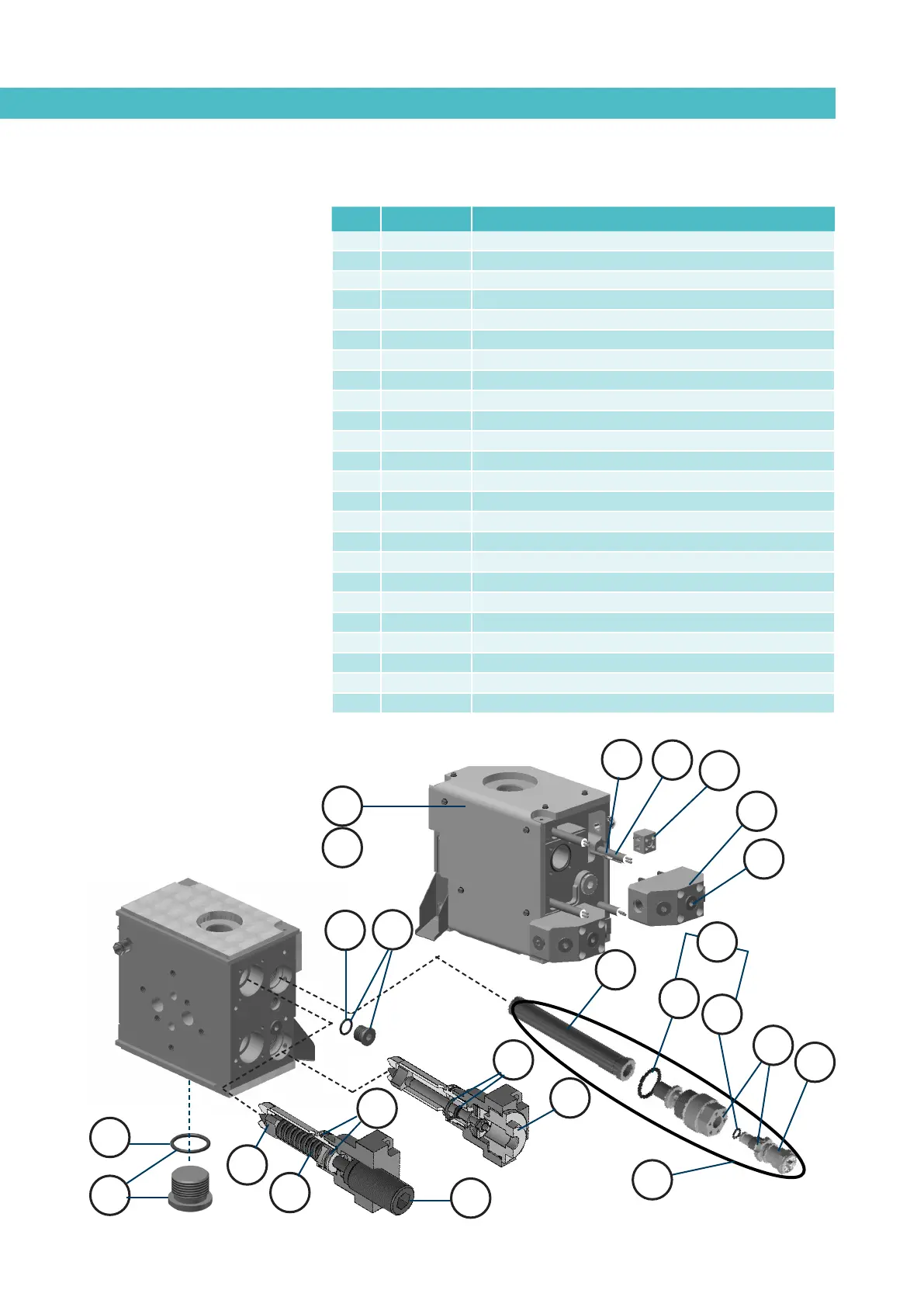

C. DISTRIBUTOR SIMPLE/ DOUBLE ASSEMBLY
Nº Ref. Description
1 150026270 Pneumatic pressure regulator
2 150026300 Pneumatic pressure regulator o-rings
3 150121390 Filter assembly
3.1 150121380 Filter head with purger
3.2 150029250 Filter mesh
3.3 150029260 O-ring Ø23X3
3.4 150026340 O-ring 7 x 1.5
3.5 150121350 O-rings filter assembly kit
3.6 150026330 Complete purger
4 10100082 Pump plug with o-ring
5 10100083 Pump o-ring
6 150026260 Mechanical pressure regulator
6.1 150026280 Mechanical pressure regulator o-rings
6.2 150026290 Mechanical pressure regulator spring
6.3 150026060 Closure needle of pneumatic pressure regulator
7 150117180 Coupling hydraulic outlets
8 10030007 Current connection strip
9 150117190 Heating element 315W Ø9.46.152mm 230V
10 150114530 Sensor Pt100
10 150117570 Sensor Ni120
11 150117330 Simple distributor insulation
11.1 150117340 Double distributor insulation
12 150026410 Plug M27x2 with o-ring
13 150026420 O-ring of M27x2 plug
