Meler Micron 5 - Control Card Components

INTRODUCTION
2-5
MA-5079-ENG MICRON GEAR ADHESIVE MELTER

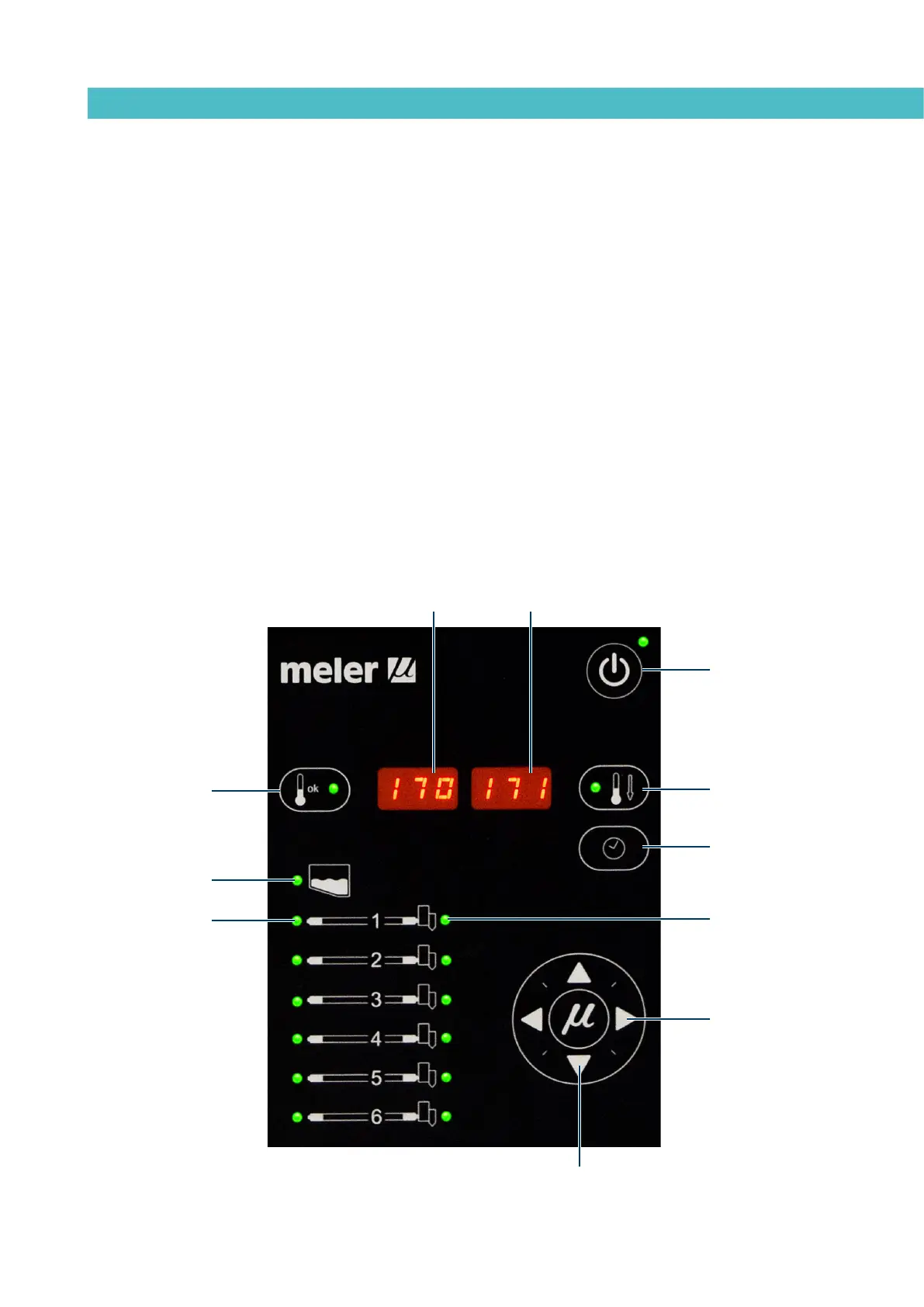

Control card components
1. Tank indicator LED.
2. Applicator indicator LED.
3. Temperature set point.
4. Real temperature.
5. ON/OFF switch.
6. Standby function.
7. Temperature OK LED.
8. Time scheduling.
9. Left/right button - channel selection.
10. Up/down button - temperature modification.
11. Hose indicator LED.
7
1
11
5
6
8
2
9
3 4
10
