MAINTENANCE
To carry out external cleaning:
• Use cleaning products compatible with polyamide materials.
• Apply the cleaning product with a soft cloth.
• Do not use sharp tools or scrapers with sharp edges.
Removing and changing exterior panels:
1. Turn off the melter.
2. Disconnect the compressed air from the machine intake.

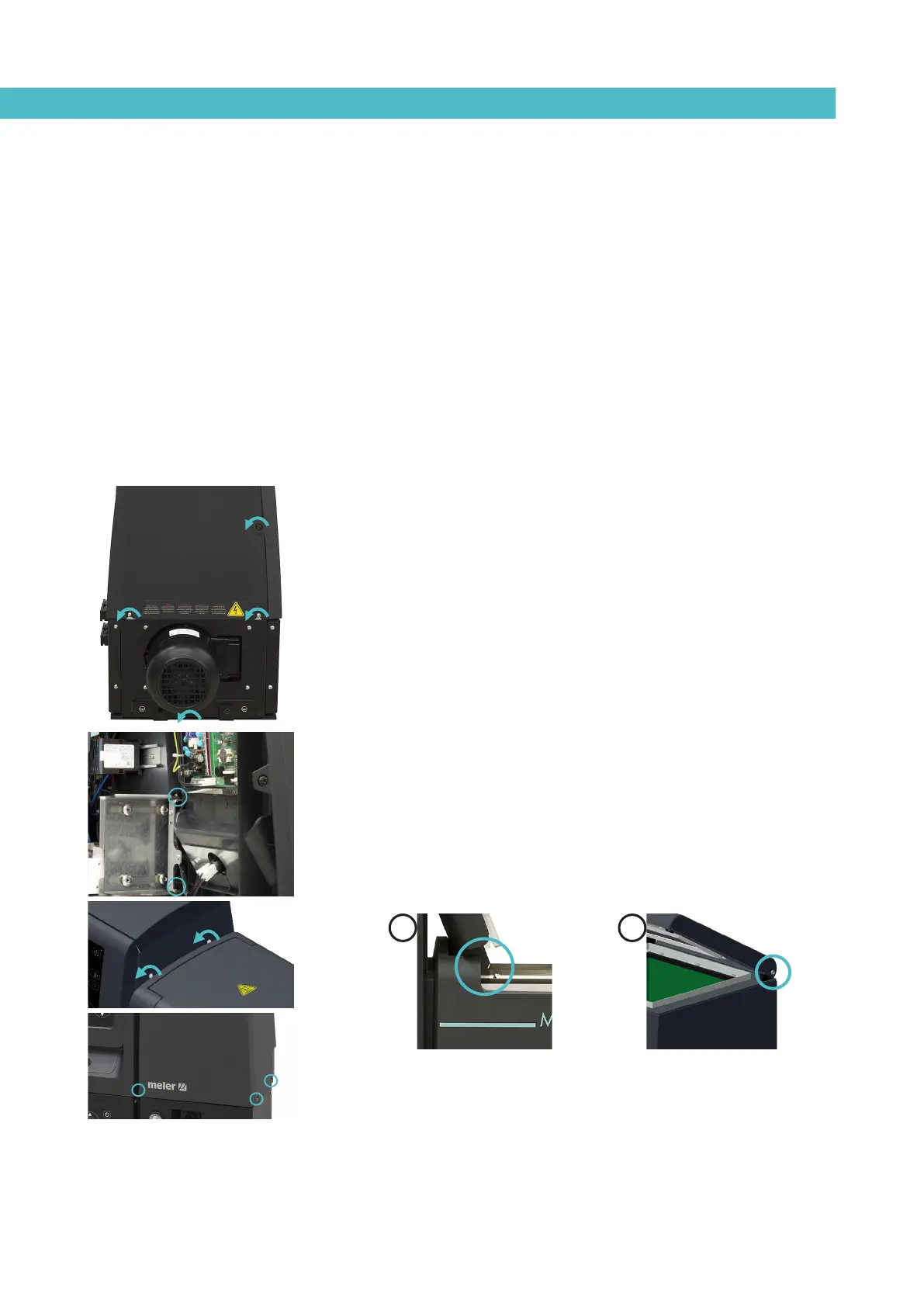

3. To remove the casing from the machine, first you have to separate the
electrical cabinet from the tank. To do this, slacken the 1/4 turn screw
as indicated (A) and slide it along the guides.
4. To remove the electrical cabinet door, open it by turning the 1/4 turn
screw as indicated (B), slide it leftwards, turn it and remove the screws
(C).
5. To remove the electrical cabinet casing, slacken the screws (D) that
hold it to the base of the machine and the screws (E) that hold it to the
structure of the electrical cabinet.
6. To remove the tank casing, remove screws (F) and (G) that hold
this casing to the base of the equipment. The lid and the casing are
removed from the tank at the same time.
7. The tank lid of Micron 5 and 10 is removed once the tank casing has
been dismantled. It is simply a matter of sliding the shafts at the ends
along the grooves in the casing. (See diagram 1).
The tank lid of Micron 20 and 35 is removed loosening the side lid
screws (See diagram 2).
8. To assemble the casing, follow the instructions in reverse order.
C
E
D
D
A
B
G
F
1 2
