2C-8 - ELECTRICAL 90-826148R2 MARCH 1997

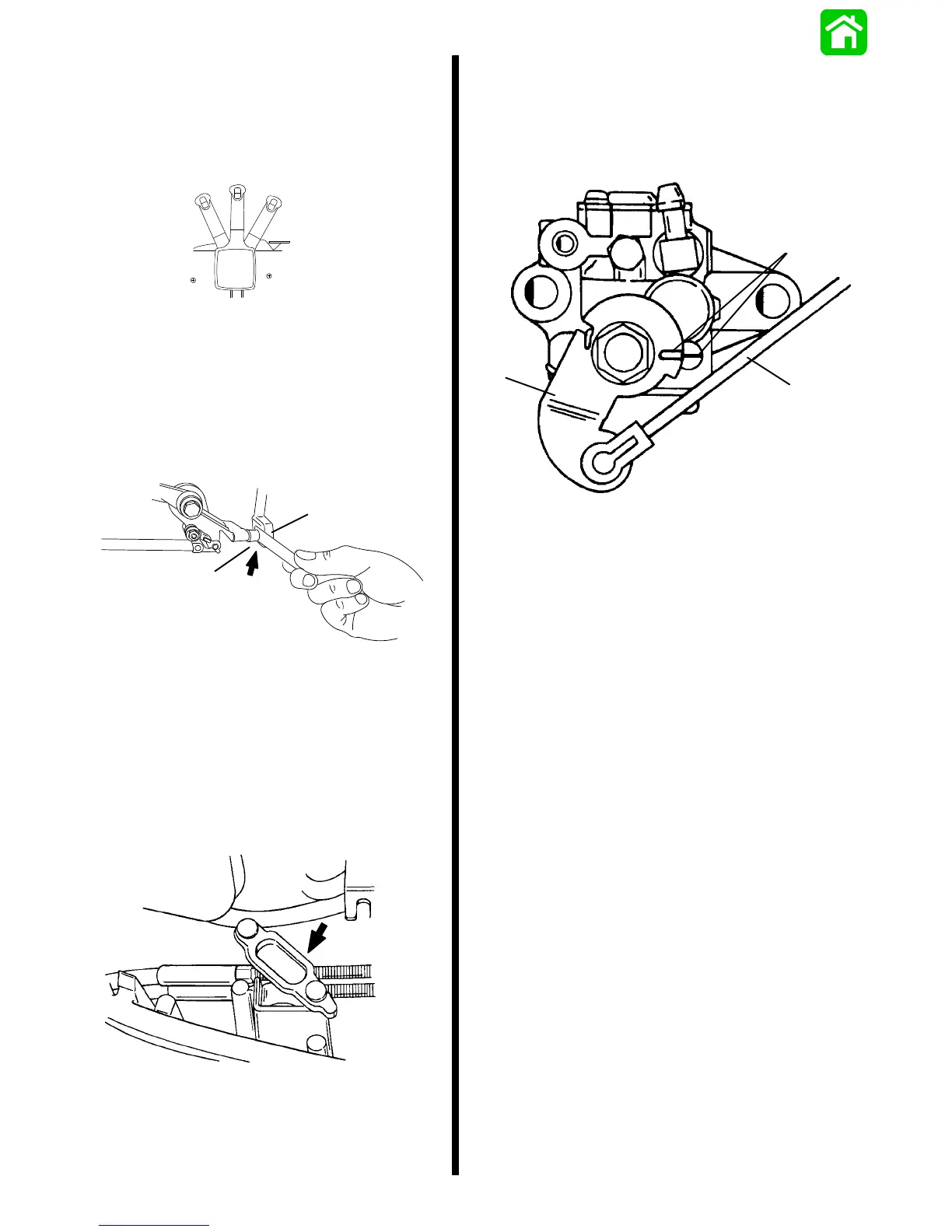

4. Check throttle cable adjustment as follows:
a. Shift outboard into gear a few times to acti-
vate the throttle linkage. Make sure to rotate
the propeller shaft while shifting into reverse.
N
R
F
b. Return remotecontrol toneutral. Place athin
piece of paper between throttle arm and idle
stop. Adjustment is correct when the paper
can be removed without tearing, but has
some drag on it. Readjust cable barrel if nec-
essary.
a
b
a - Throttle Arm
b - Idle Stop
5. Lock the barrel holder in place with the cable
latch.
Oil Pump Adjustment
While holding throttle arm at idle position, adjust
length of link rod so the stamped mark of oil pump
body aligns with stamped mark of oil pump lever.
52365
a
b
c
a - Alignment Mark
b - Link Rod
c - Oil Pump Lever
