Mercury 30 Service Manual

90-826148R2 MARCH 1997 ELECTRICAL - 2D-15
Commander 2000 Key Switch Test
1. Disconnect remote control wiring harness and
instrument panel connector.
2. Set ohmmeter on R x 1 scale for the following
tests:
KEY
POSITION
OFF
RUN
START
CHOKE*

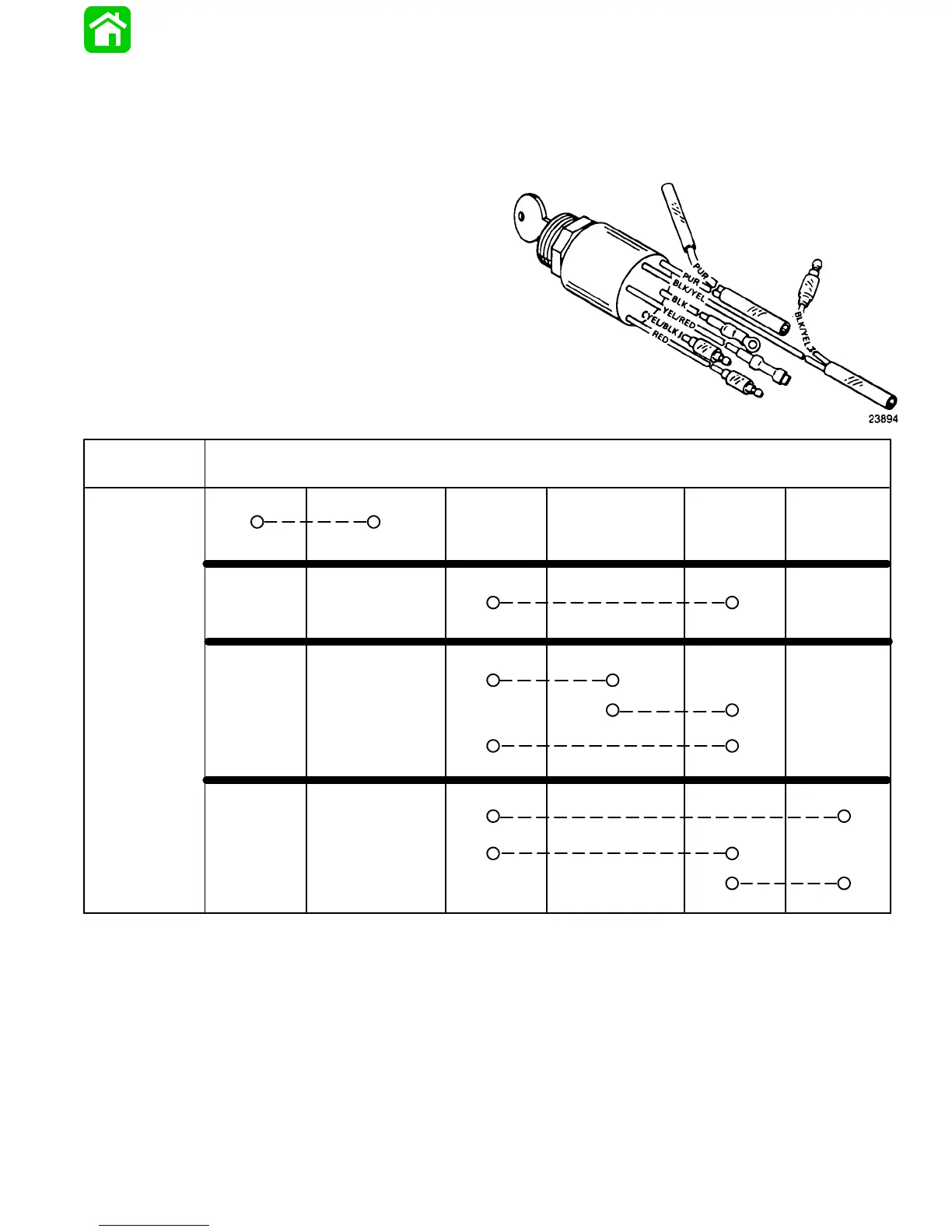

CONTINUITY SHOULD BE INDICATED AT THE FOLLOWING POINTS:
BLK BLK/YEL RED YEL/RED PUR YEL/BLK
BLK = Black
PUR = Purple
RED = Red
YEL = Yellow
*Key switch must be positioned to “RUN” or
“START” and key pushed in to actuate choke for
this test.
NOTE: If meter readings are other than specified in
the preceding tests, verify that switch and not wiring
is faulty. If wiring checks ok, replace switch.
