90-826148R2 MARCH 19972A-18 - ELECTRICAL

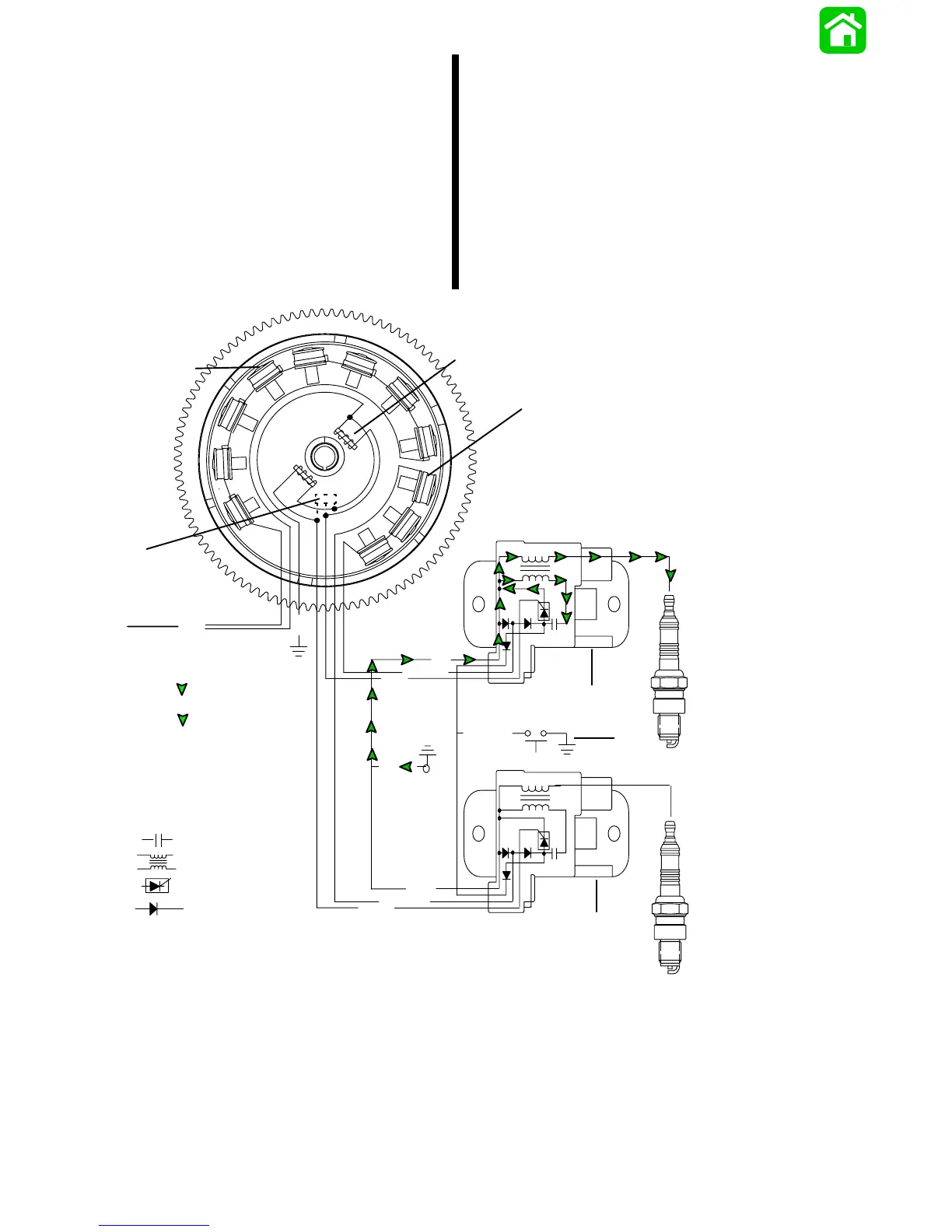

Ignition Coil Circuit
As the capacitor voltage flows through the pri-
mary windings of the ignition coil, a voltage is in-
duced into the ignition coil secondary windings.
This secondary voltage rises to the level re-
quired to jump the spark plug gap and return to
ground. This secondary voltage can, if neces-
sary, reach approximately 40,000 volts. To com-
plete the secondary voltage path, the released
voltage enters the ground circuit of CDM mod-
ule.
N
S
S
S
S
S
S
N
N
N
N
N
SN
BLK
GRN/WHT
WHT/GRN
YEL
YEL
BLK
WHT
PPL
BLK/YEL
+
+
_
_
BLK
BLK
Return Voltage
Induced Voltage
Capacitor-
Coil-
SCR-
Diode-
1
2
a
b
c
f
h
e
d
g
a - Battery Charging Coils
b - Trigger Coils
c - Capacitor Charge Coils
d - CDM #1
e - CDM #2
f - Rev. Limiter
g - Stop Switch
h - To Voltage Regulator
